3.2 Connecting the PT-110xl UXGA Line Transmitter

To connect the PT-110xl (as shown in Figure 2) do the following:

1. Connect a UXGA source (for example, a computer graphics card) to the

15-pin HD UXGA INPUT connector.

2. Connect a CAT5/6 cable to the RJ-45 LINE OUT connector.

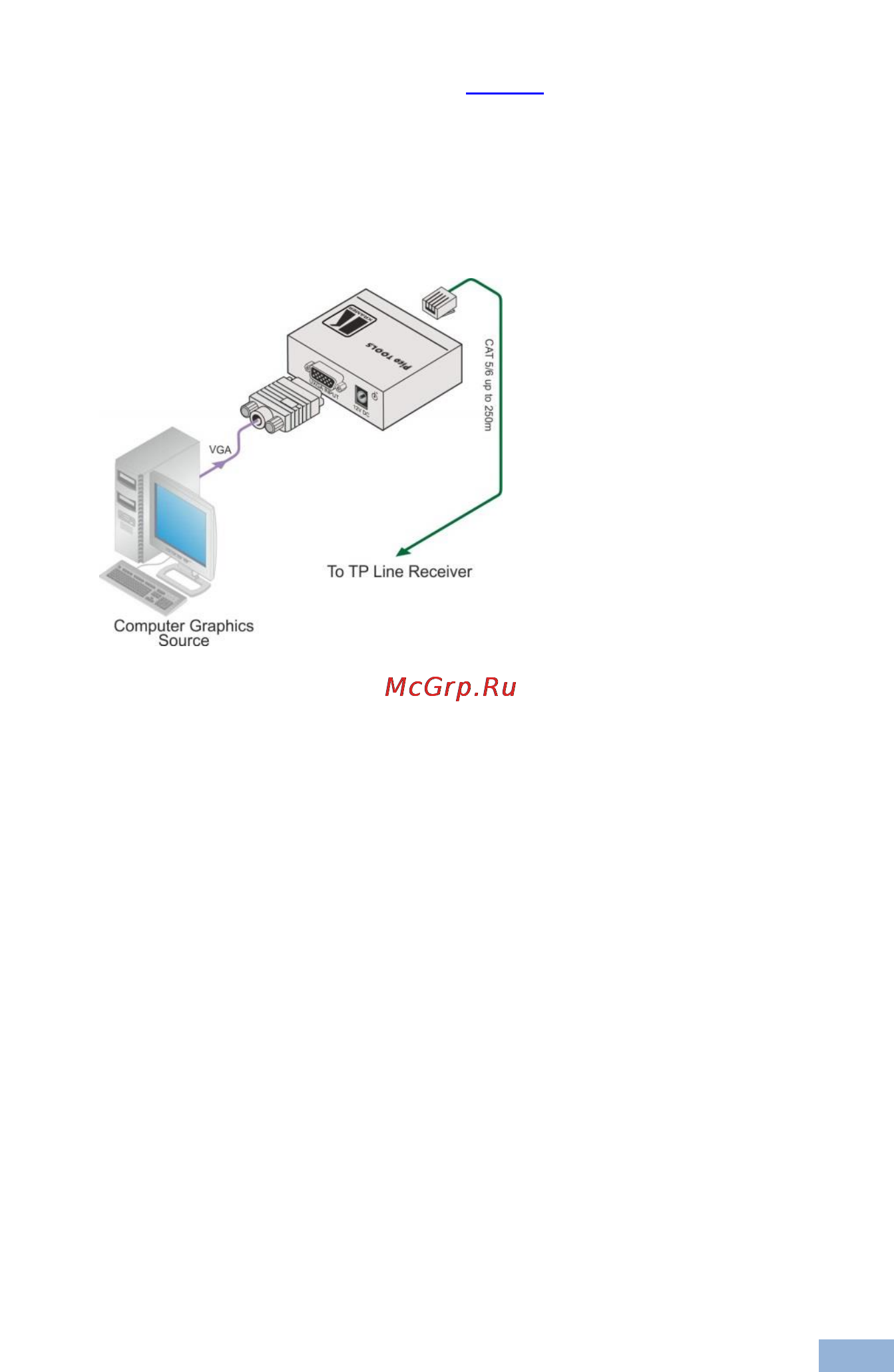

Figure 2: Connecting the PT-110xl UXGA Line Transmitter

3.3 Capturing the EDID

To capture an EDID:

 Connect the device from which you want to capture the EDID (for example, a

display, switcher, DA, etc.) directly to the UXGA input of the PT-110xl

 Press the EDID capture button.

The EDID status LED flashes slowly several times. The new EDID is

captured when the LED stops flashing and lights solid.

Note: If the status LED flashes quickly for a few seconds and then stays on

solid, the PT-110xl could not capture the EDID and loaded the default EDID

instead.
