Your TP-105/TP-105(HD) CAT 5 Line Driver/DA

5 Your TP-105/TP-105(HD) CAT 5 Line Driver/DA

The TP-105

In particular, the TP-105:

receives a CAT 5 input, and distributes it to two identical

outputs.

• Has a transmission range of more than 300ft (more than 100m)

over UTP cabling

• Includes EQ. and level controls and is 12V DC fed

Figure 4 and Table 3 define the TP-105:

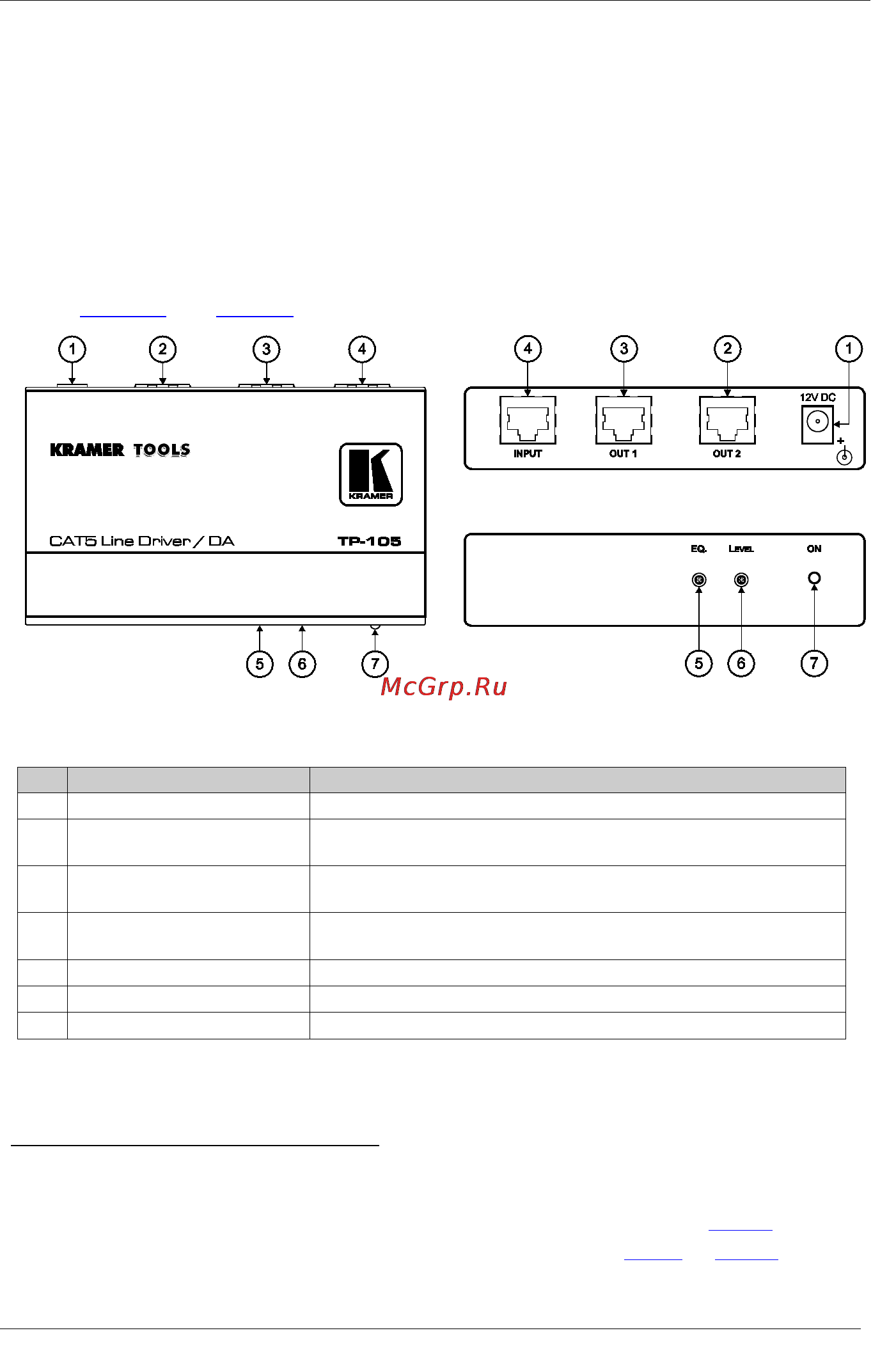

Figure 4: TP-105 CAT 5 Line Driver/DA

Table 3: TP-105 CAT 5 Line Driver/DA Features

Feature

Function

1 12V DC +12V DC connector for powering the unit

2 OUT 2 RJ-45 connector

Connects to

the LINE IN RJ-45 connector on the TP-120 XGA

Line Receiver

OUT 1 RJ-45 connector

Connects to

the LINE IN RJ-45 connector on the TP-120 XGA

Line Receiver

4 INPUT RJ-45 connector

Connects to

the LINE OUT RJ-45 connector on the PT-110 XGA

Line Transmitter

5 EQ. trimmer Adjusts the video EQ. (equalization) compensation

6 LEVEL trimmer Adjusts

the video signal level

ON LED Illuminates when receiving power

1 The TP-105HD (identified by a sticker on its underside) is identical in appearance to the TP-105. However, the TP-105HD

can also receive HD signals (high definition resolutions: 480p, 576p, 720p, 1080i and 1080p), for example, from a TP-112HD

XGA/HD Line Transmitter-DA, and not only computer graphics signals (for example, from a PT-110 as

Figure 18 illustrates)

2 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in

Table 12 and Figure 14)

3 Insert a screwdriver into the hole and carefully rotate it, to trim the level
