KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your TP-104/TP-104HD XGA Line Transmitter/DA
6
4 Your TP-104/TP-104HD XGA Line Transmitter/DA
The TP-104/TP-104HD
1
is a line transmitter/1:4 DA that receives an XGA
signal
2
In particular, the TP-104/TP-104HD:
and transmits it over four CAT 5 cables to appropriate receivers.
• Has a transmission range of more than 300ft (more than 100m)
• Can power or be powered by the receiver over the same CAT 5
cable and is 12V DC fed

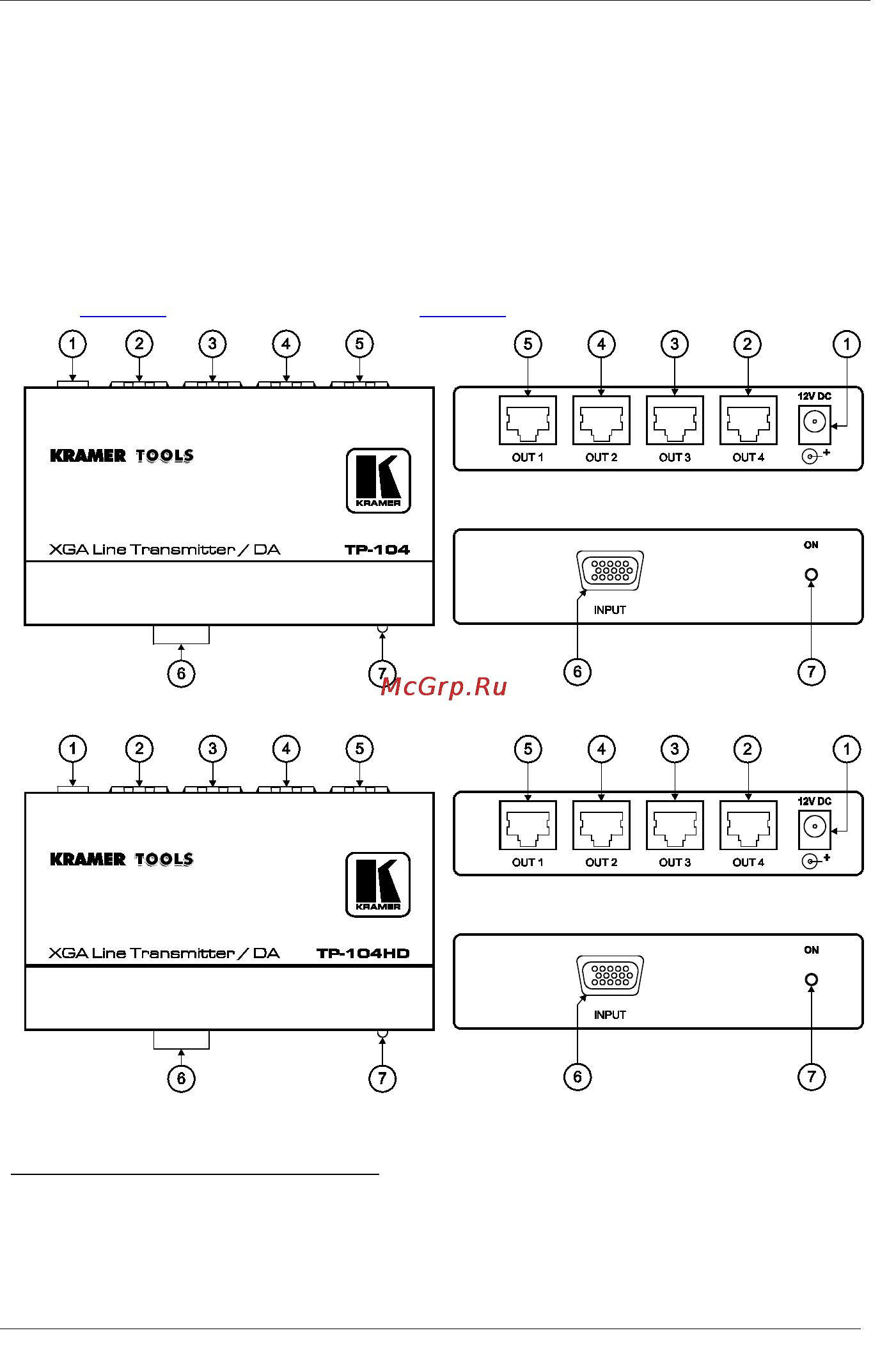

Figure 1 defines the TP-104 and Figure 2 defines the TP-104HD:
Figure 1: TP-104 XGA Line Transmitter/DA
Figure 2: TP-104HD XGA Line Transmitter/DA
1 The TP-104HD is similar to the TP-104 but can also receive HD signals (high definition resolutions: 480p, 576p, 720p,
1080i and 1080p)
2 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on a 15-pin HD (F)
connector having a resolution from VGA up to XGA
