TP-121xl/TP-122xl - Connecting the TP-121xl Transmitter and TP-122xl Receiver

5 Connecting the TP-121xl Transmitter and

TP-122xl Receiver

Switch off the power to all devices before connecting them to your

TP-121xl/TP-122xl. After connecting your TP-121xl/TP-122xl, connect

the power to the transmitter and receiver and then switch on the power

to the other devices.

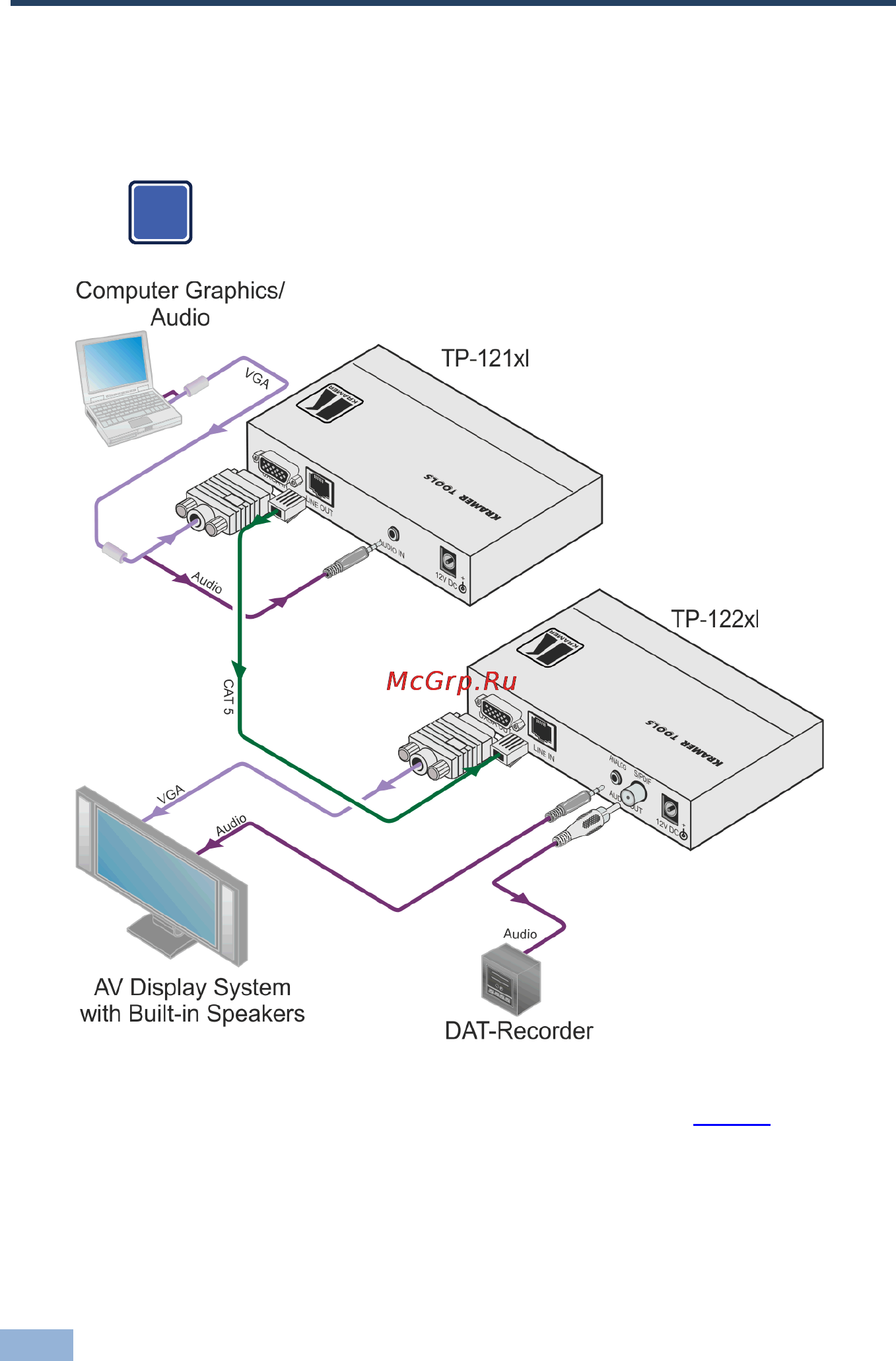

Figure 5: Connecting the TP-121xl Transmitter and TP-122xl Receiver

To connect the TP-121xl and the TP-122xl as illustrated in Figure 5:

1. On the TP-121xl, connect:

 The computer graphics video source, (for example, the graphics output

from a laptop) to the UXGA In 15-pin HD connector (F)
