TP-121xl/TP-122xl - Defining the TP-121xl Transmitter and

TP-122xl Receiver

4 Defining the TP-121xl Transmitter and

TP-122xl Receiver

This section defines the:

 TP-121xl (see Section 4.1)

 TP-122xl (see Section 4.2)

The TP-121xl has inputs for:

 Computer graphics video

 Unbalanced stereo audio

The TP-121xl encodes the video and audio signals and transmits them over STP

cable to a TP-122xl receiver.

The TP-122xl accepts the encoded signal over STP from the TP-121xl and

outputs computer graphics video, unbalanced stereo audio and digital audio.

4.1 Defining the TP-121xl UXGA/Audio Line Transmitter

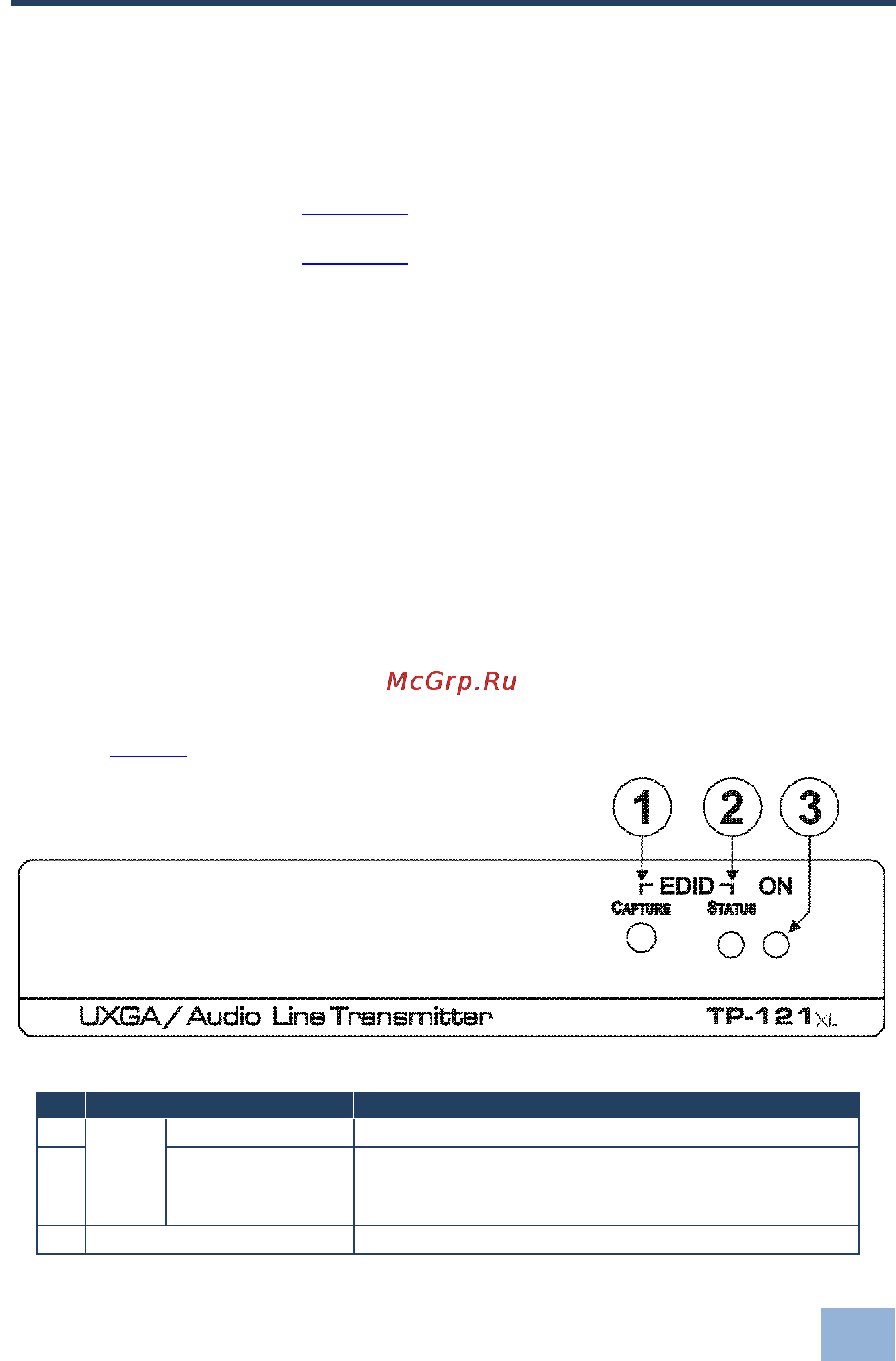

Figure 1 defines the front panel of the TP-121xl.

Figure 1: TP-121xl UXGA/Audio Line Transmitter Front Panel

Feature

Function

EDID

CAPTURE Button

Press to capture the EDID from the video display

STATUS LED

Indicates the following EDID status:

 Flashes slowly then lights solid—new EDID stored

 Flashes quickly then lights solid—default EDID stored

ON LED

Lights green when the device is powered on
