Connecting the PC/Audio Line Transmitter/Receiver
11
11

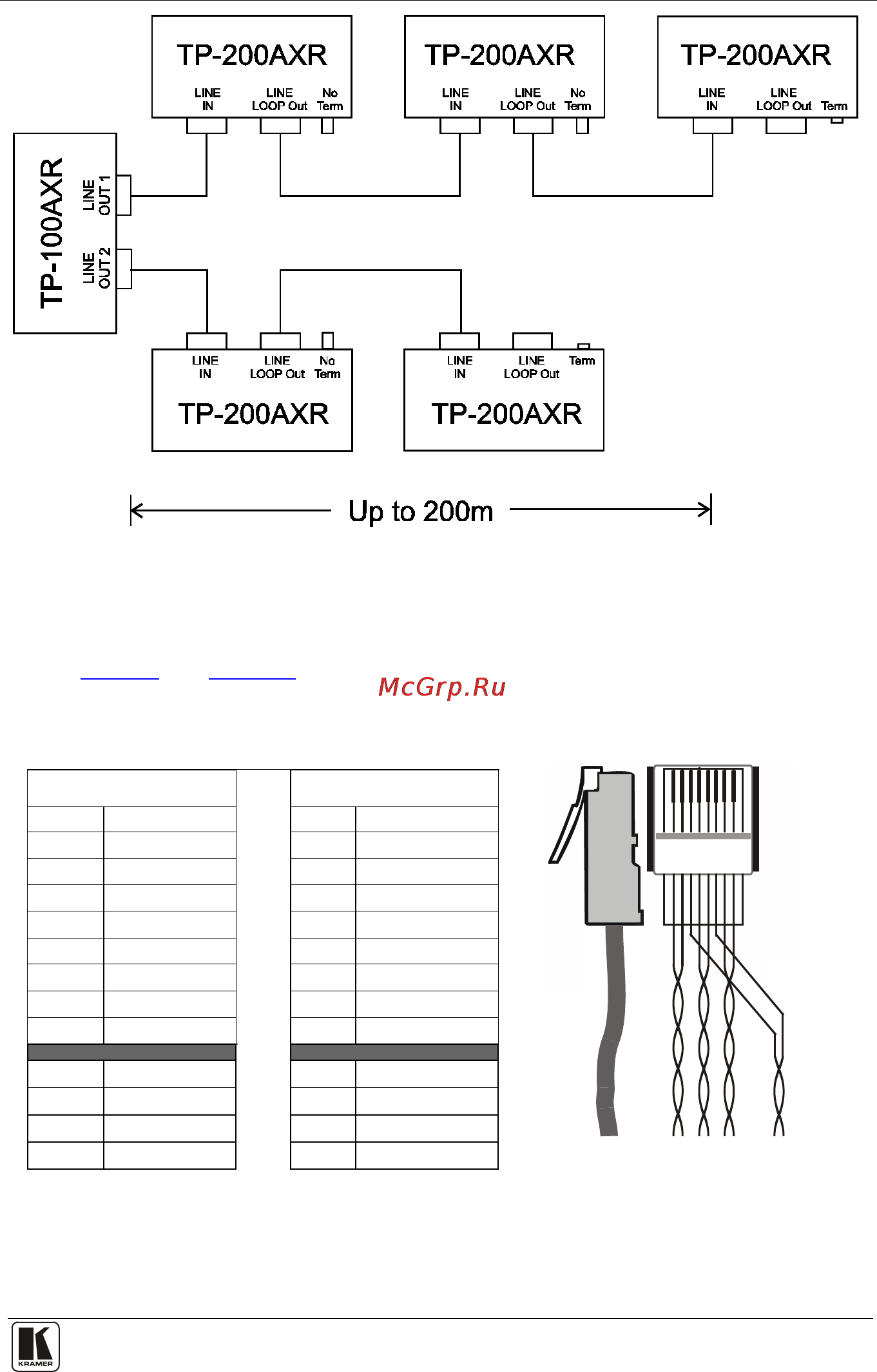

Figure 4: Connecting Multiple Devices
5.3 Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors
Table and 3 Figure define the UTP CAT 5 PINOUT, using a straight pin
to pin cable with RJ-45 connectors:
5
Table 3: CAT 5 PINOUT
Figure 5: CAT 5 PINOUT
36
7
81 2
5
4
1
4
5 7
8632
EIA /TIA 568A EIA /TIA 568B
PIN
Wire Color
PIN
Wire Color
1 Green/White 1 Orange/White
2 Green 2 Orange
3 Orange/White 3 Green/White
4 Blue 4 Blue
5 Blue/White 5 Blue/White
6 Orange 6 Green
7 Brown/White 7 Brown/White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
