Wiring the Twisted Pair Connectors

6 Wiring the Twisted Pair Connectors

When using STP cable, connect/solder the cable shield to the RJ-45 connector

shield. Table 2

and Figure 4 define the TP pinout using a straight pin-to-pin cable

with RJ-45 connectors.

Table 2: TP Connector Pinout

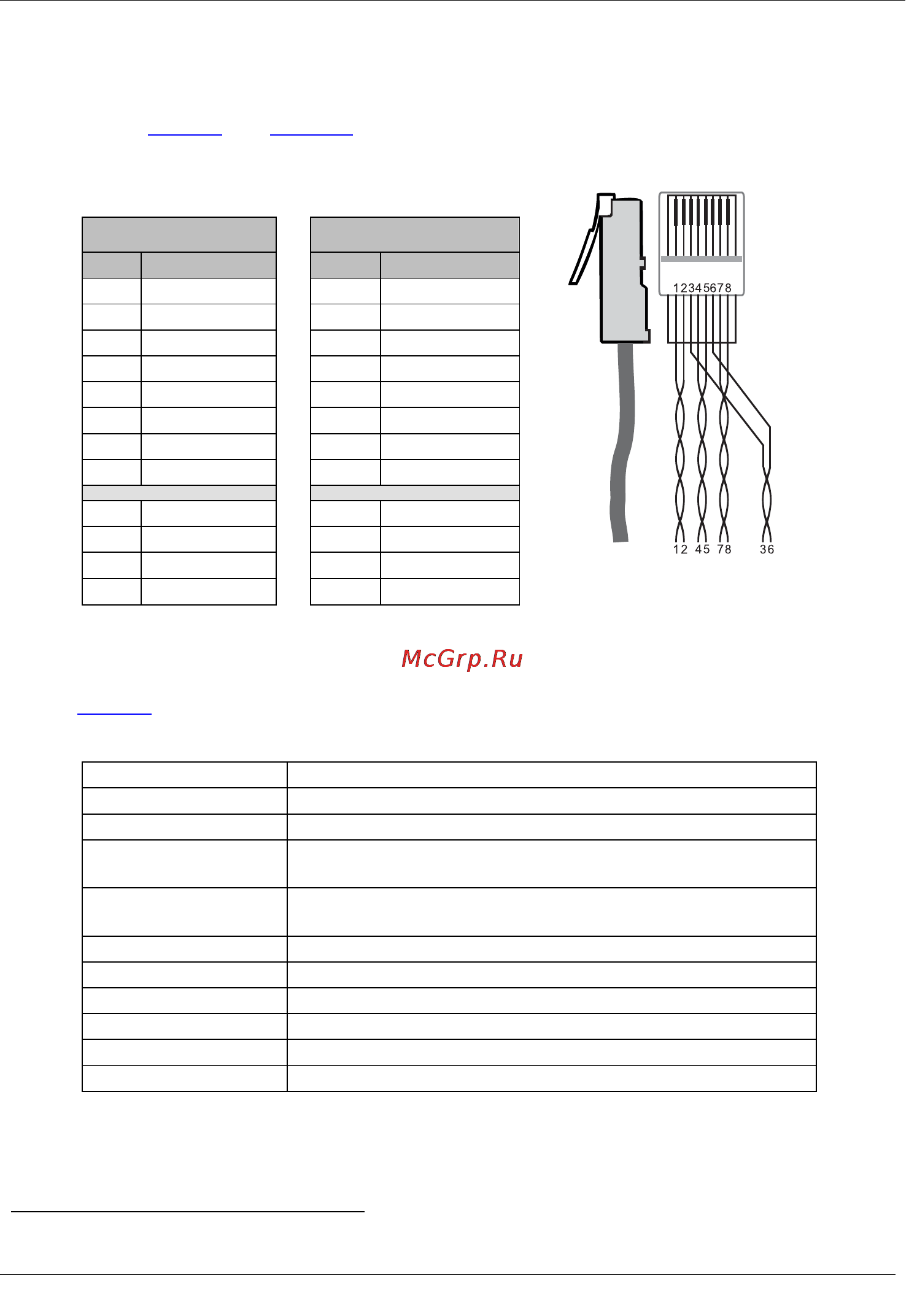

Figure 4: TP Connector

EIA /TIA 568A

EIA /TIA 568B

PIN Wire Color PIN Wire Color

1 Green/White 1 Orange/White

2 Green 2 Orange

3 Orange/White 3 Green/White

4 Blue 4 Blue

5 Blue/White 5 Blue/White

6 Orange 6 Green

7 Brown/White 7 Brown/White

8 Brown 8 Brown

Pair 1 4 and 5 Pair 1 4 and 5

Pair 2 3 and 6 Pair 2 1 and 2

Pair 3 1 and 2 Pair 3 3 and 6

Pair 4 7 and 8 Pair 4 7 and 8

7 Technical Specifications

Table 3 includes the technical specifications

of the PT-100, XGA Line Extender.

Table 3: Technical Specifications of the PT-100 XGA Line Extender

INPUT: 1 CAT 5 IN on an RJ-45 connector

OUTPUT: 1 CAT 5 OUT on an RJ-45 connector

RESOLUTION: Up to WUXGA and 1080p

S/N RATIO: VIDEO: 58dB unweighted, 68dB @5MHz weighted

Audio: <-80dB

CONTROLS: Equalization trimmer

Level trimmer

COUPLING: AC

POWER SOURCE: 12V DC 900mA

DIMENSIONS: 6.2cm x 5cm x 2.4cm (2.44" x 1.97" x 0.94") W, D, H

WEIGHT: 0.2kg (0.44lbs) approx.

ACCESSORIES: Power supply, rack ears

OPTIONS: RK-4PT, RK-1TPT, RK-1T2PT 19” rack adapter

1 Specifications are subject to change without notice
