Connecting the PT-100 XGA Line Extender
5
5 Connecting the PT-100 XGA Line Extender
The PT-100 can be used to compensate for varying TP cable lengths by adjusting
the line level and equalization as shown in the following example.

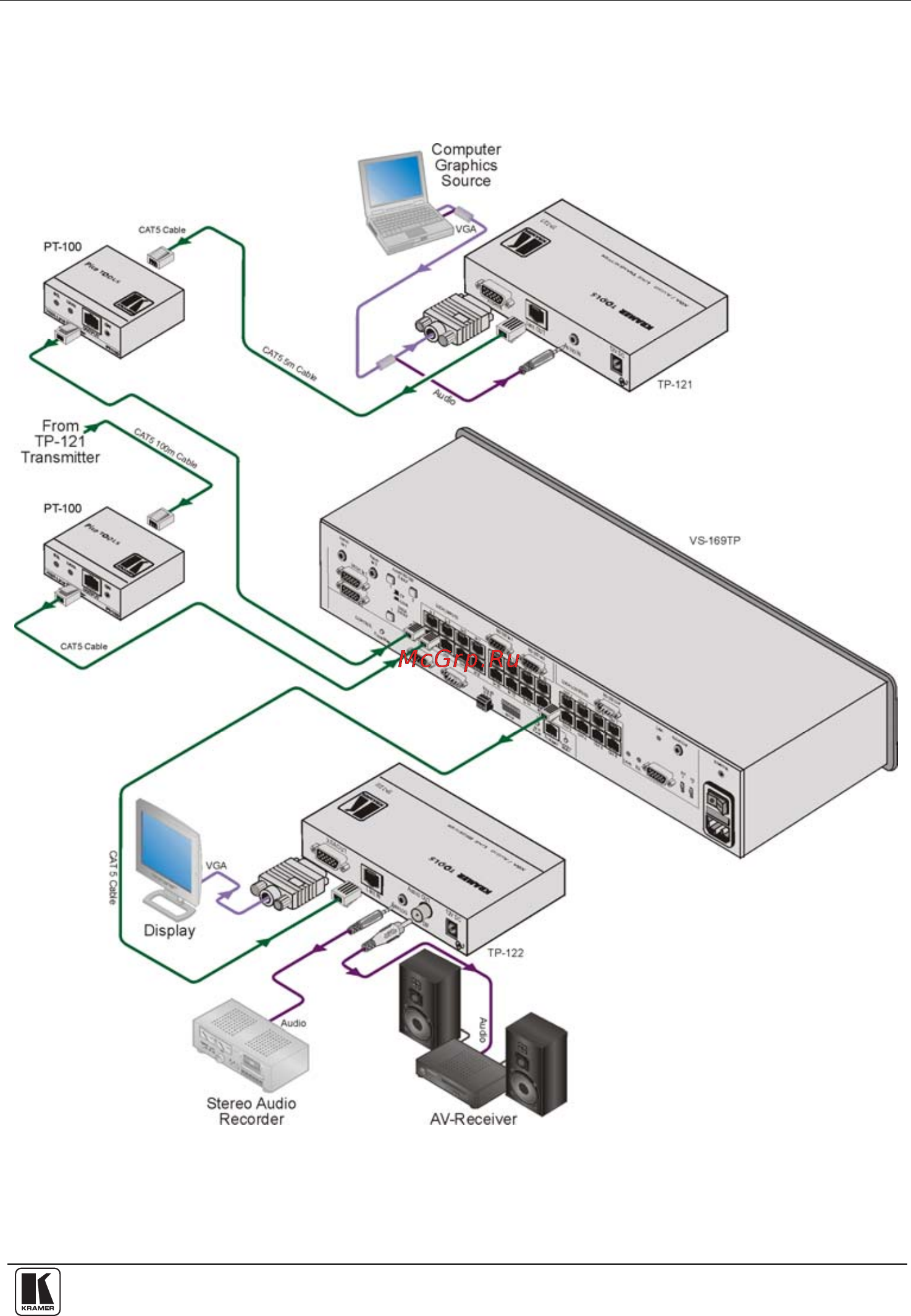

Figure 2: Connecting the PT-100 XGA Line Extender
