Defining the PT-100 XGA Line Extender

of the STP cable must be connected to a ground terminal on the units at both ends

(use the ground terminal of the power supply connection if necessary).

For a CAT 5 cable exceeding a distance of 50m, separate power supplies should be

connected to the transmitter and to the receiver simultaneously.

3.3 Recommendations for Achieving the Best Performance

To ac

hieve the best performance:

• Use only good quality connection cables

to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables).

• Avoid interference from neighboring electrical appliances that may adversely

influence signal quality and position your Kramer transmitters away from

moisture, excessive sunlight and dust

4 Defining the PT-100 XGA Line Extender

Figure 1 and Table 1 define the PT-100, XGA Line Extender.

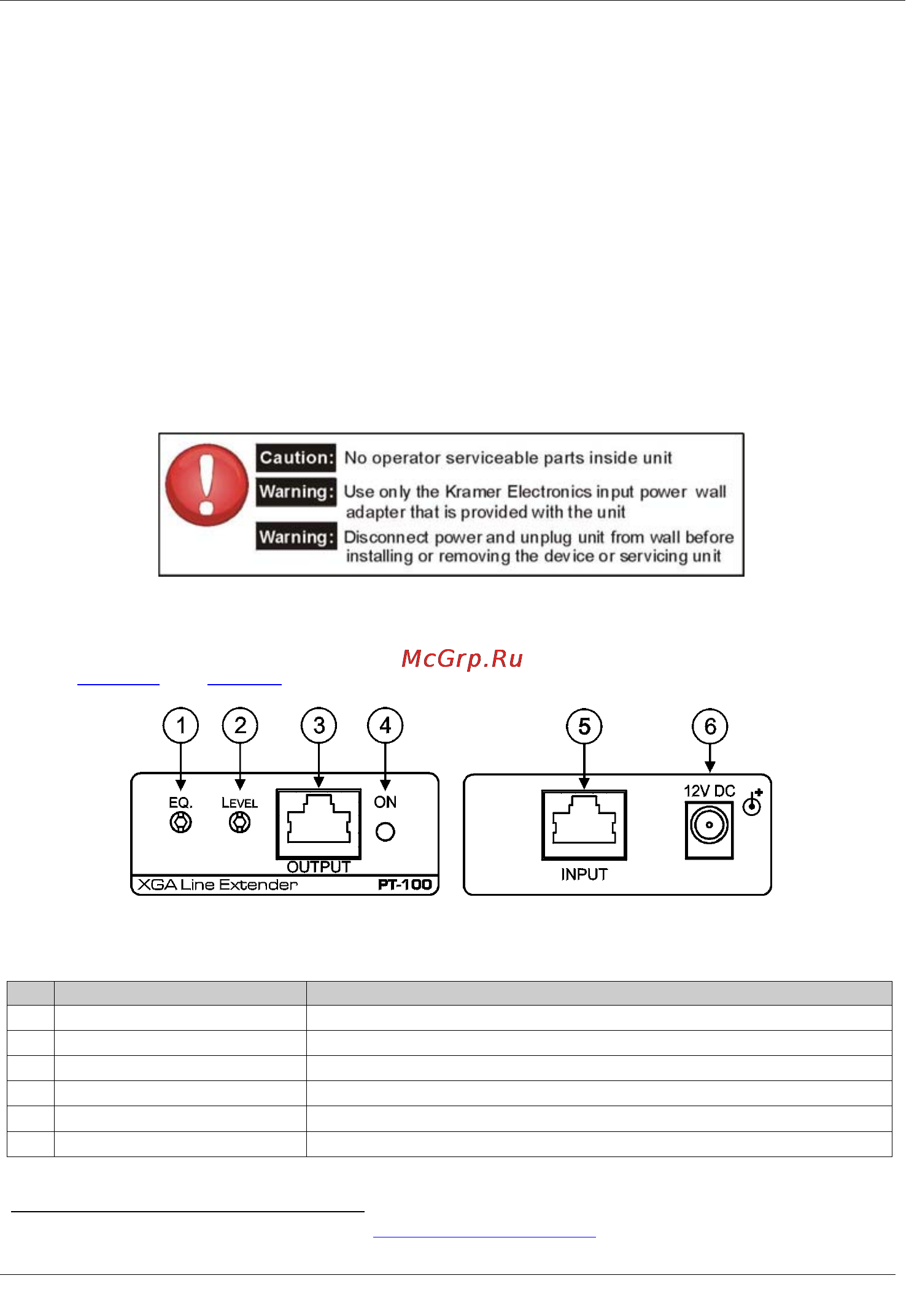

Figure 1: PT-100, XGA Line Extender Front and Rear Panels

Table 1: PT-100, XGA Line Extender Front and Rear Panel Features

# Feature Function

1 EQ. Trimmer Turn to adjust the line equalization

2 LEVEL Trimmer Turn to adjust the line level

3 OUTPUT RJ-45 TP Connector Connect to a compatible TP receiver (for example, VS-169TP or TP-122)

4 ON LED Lights green when the device receives power

5 INPUT RJ-45 TP Connector Connect to a compatible TP transmitter (for example, TP-121 or TP-125)

6 12V DC Power Connector Connect to the 12V DC power adapter, center pin positive

1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com
