Connecting the PT-100 XGA Line Extender
7
4. Connect the outputs of the TP-124 to the video, audio and RS-232 data
acceptors (for example, an AV display system).
5. Connect the 12V DC power adapter to the power socket on the PT-100 and
connect the adapter to the mains electricity.

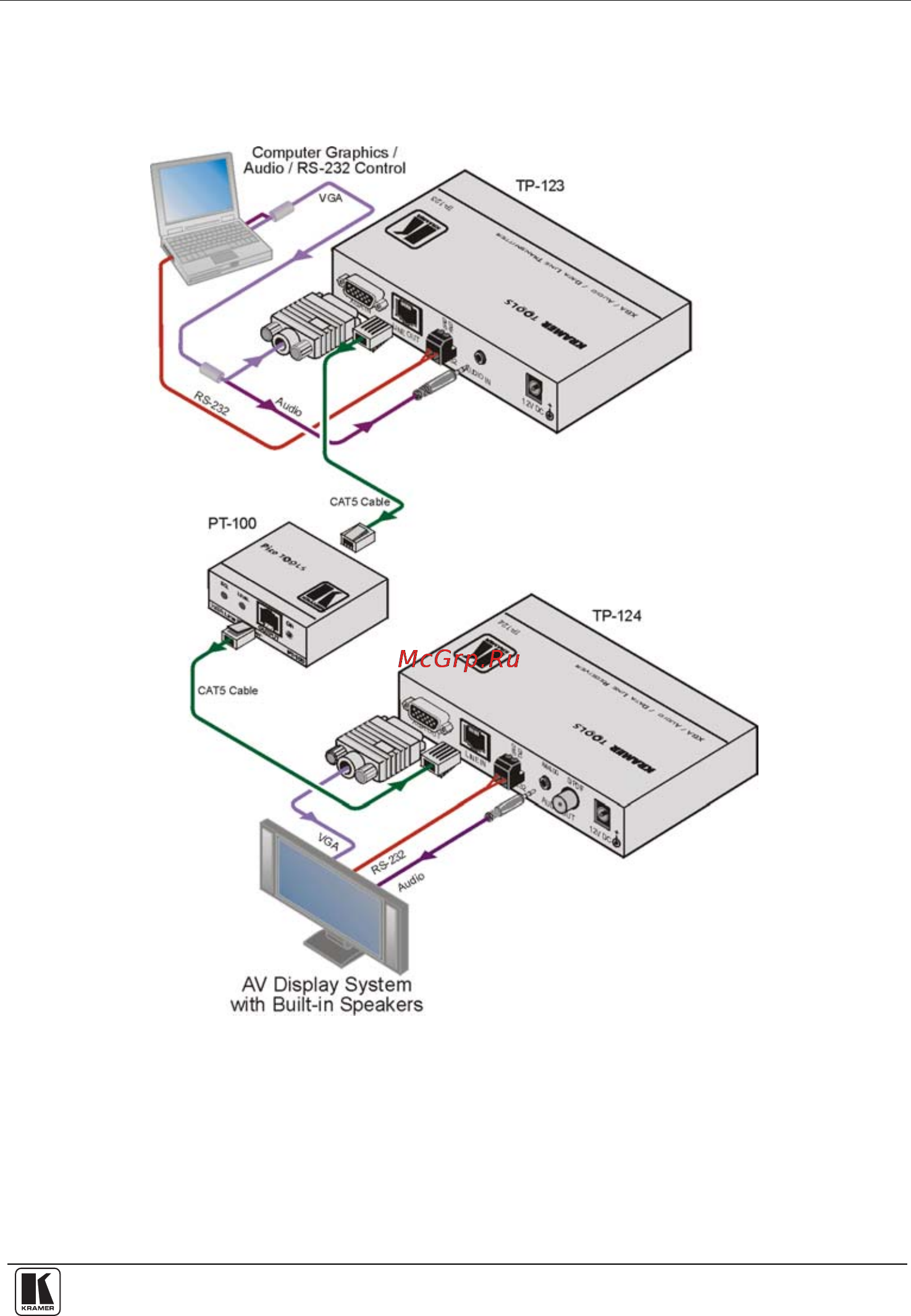

Figure 3: Connecting the PT-100 as a Simple TP Line Extender
