Your VA-1DVIN Virtual EDID

3.1 Defining EDID

The Extended Display Identification Data (EDID

) is a data-structure,

provided by a display, to describe its capabilities to a graphics card (that is

connected to the display’s source). The EDID enables the source (for

example, a PC) to “know” what kind of monitor is connected to the output.

The EDID includes the manufacturer’s name, the product type, the timing

data supported by the display, the display size, luminance data and (for

digital displays only) the pixel mapping data.

4 Your VA-1DVIN Virtual EDID

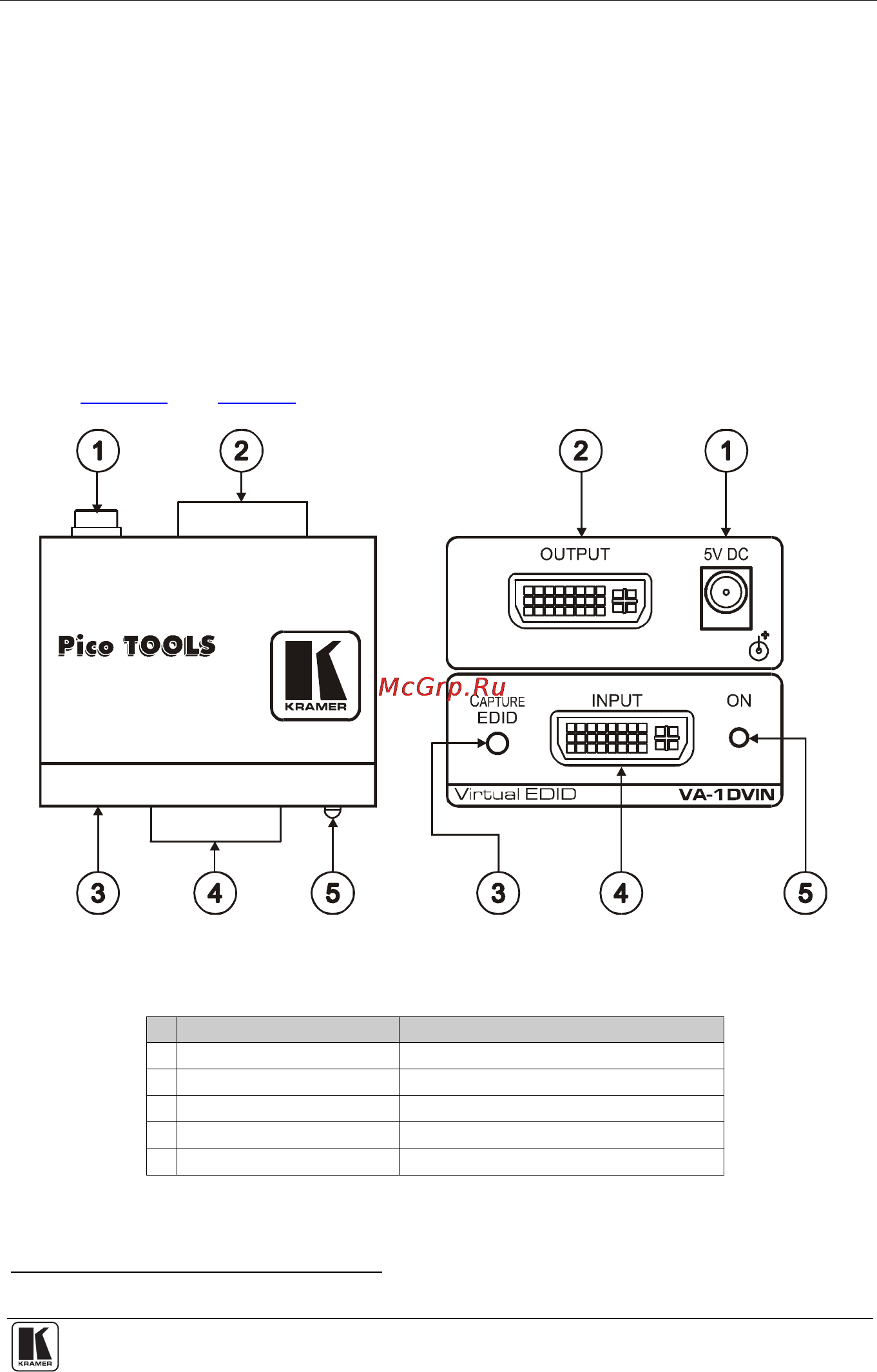

Figure 1 and Table 1 define the VA-1DVIN Virtual EDID:

Figure 1: VA-1DVIN Virtual EDID

Table 1: VA-1DVIN Virtual EDID

# Feature Function

5V DC

+5V DC connector for powering the unit

2 OUTPUT DVI Connector Connect to the DVI acceptor

CAPTURE EDID Button

Press to acquire EDID

4 INPUT DVI Connector Connect to the DVI source

5 ON LED Lights when the power is connected

1 EDID is defined by a standard published by the Video Electronics Standards Association (VESA)
