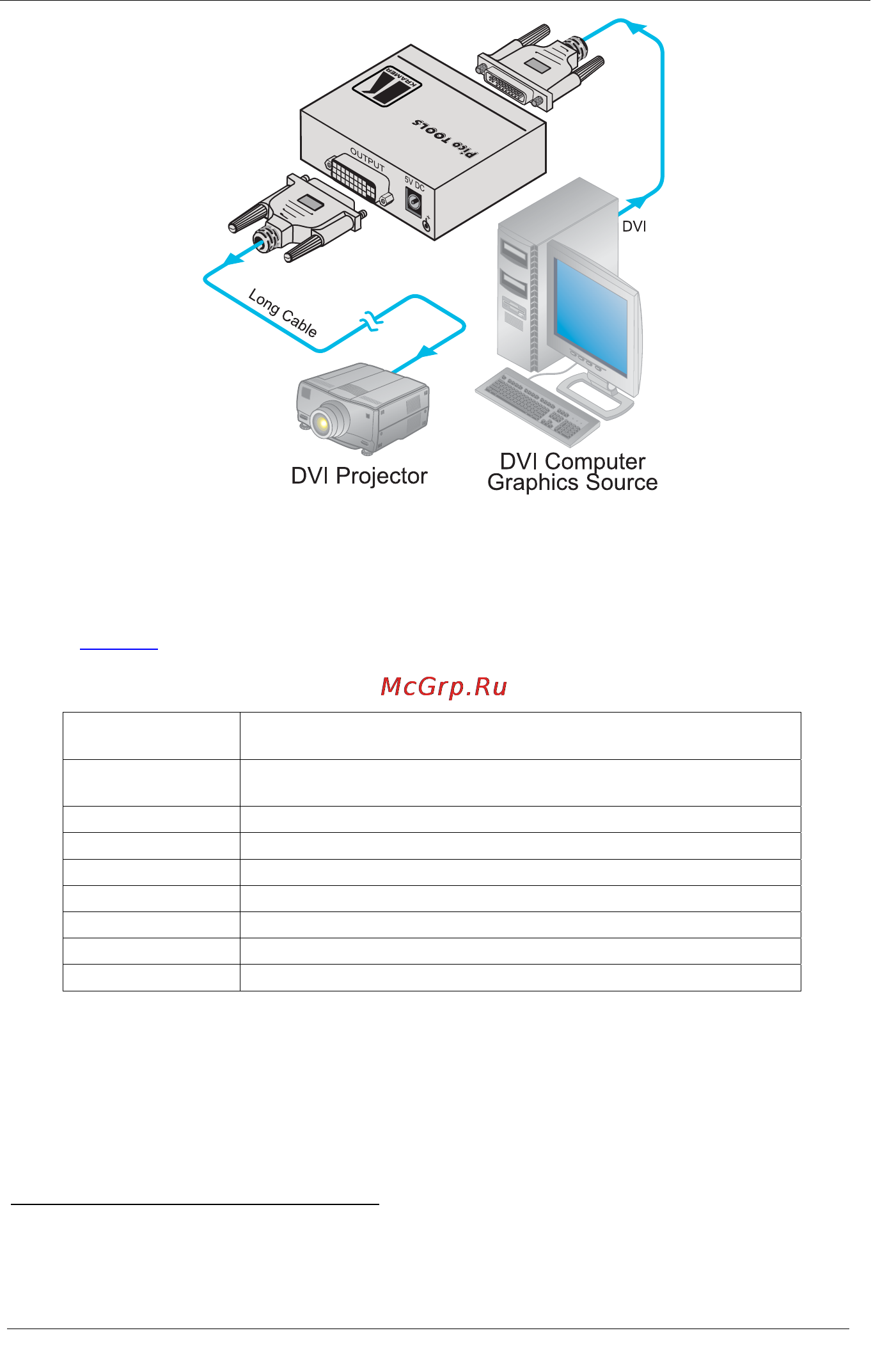

Figure 3: Connecting the VA-1DVIN Virtual EDID
6 Technical Specifications
Table 2 includes the technical specifications:
Table 2: Technical Specifications
1
of the VA-1DVIN Virtual EDID
INPUT: 1 x DVI
2
Dual Link, DVI 1.0, 1.2Vpp on a DVI Molex 24-pin female
connector; DDC signal 5Vpp (TTL)
OUTPUT: 1 x DVI
2
, Dual Link, DVI 1.0, 1.2Vpp on a DVI Molex 24-pin female
connector; DDC signal 5Vpp (TTL)
BANDWIDTH: 3.3Gbps
CONTROLS: Capture EDID button
POWER SOURCE: 5V DC, 20mA
DIMENSIONS: 6.22cm x 5.24cm x 2.41cm (2.45" x 2.06" x 0.95") W, D, H
WEIGHT: 0.15kg (0.55lbs) approx.
ACCESSORIES: 5V DC power supply
OPTIONS: RK-4PT 19" rack adapter
1 Specifications are subject to change without notice
2 On a DVI connector, available for digital signals (DVI-D). Analog signals (DVI-I) are passed unchanged between the input
and the output
