VP-480 - Defining the VP-480 CV to 3G HD-SDI Scaler 5

4 Defining the VP-480 CV to 3G HD-SDI Scaler

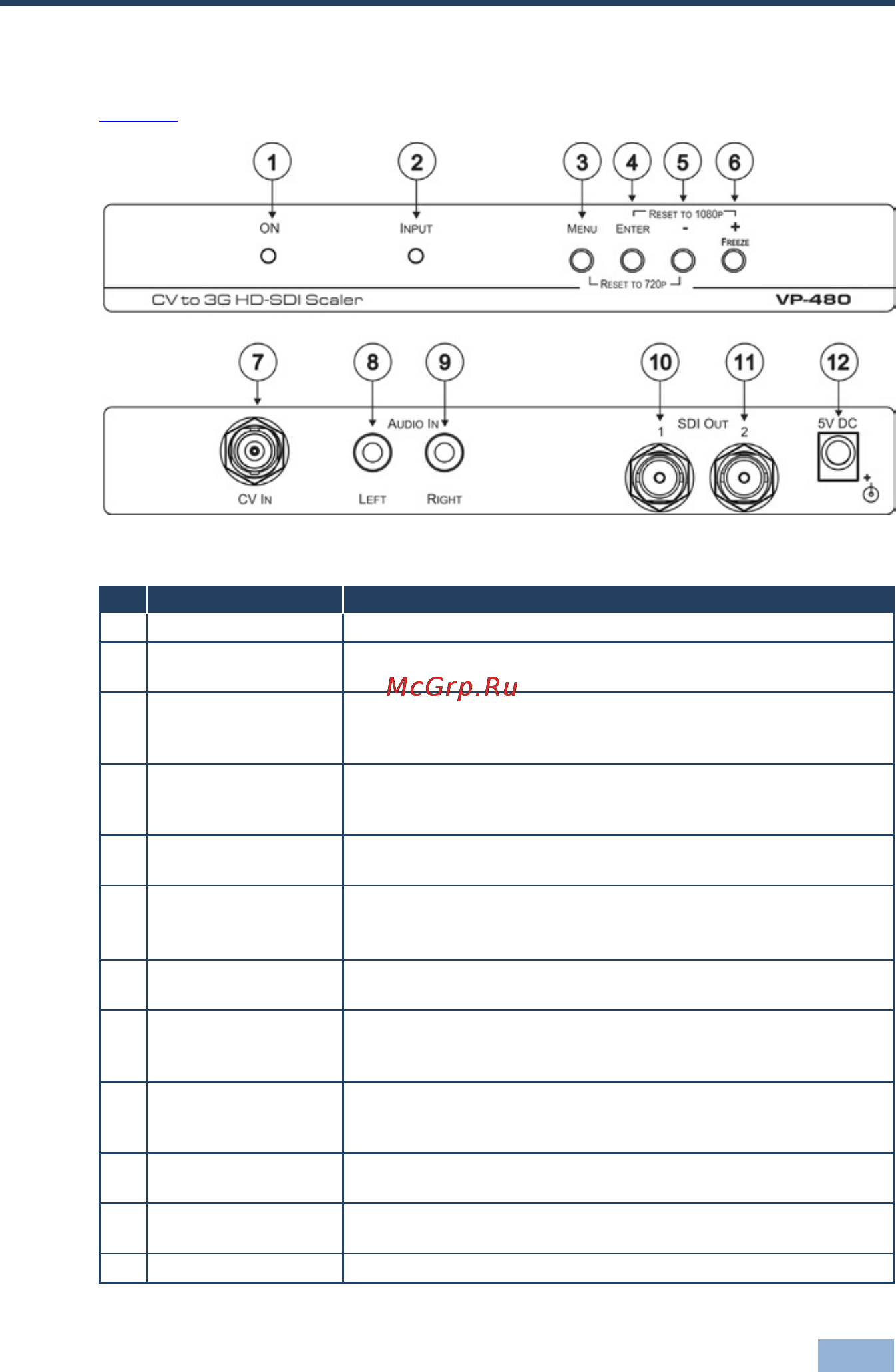

Figure 1 defines the front and rear panels of the VP-480.

Figure 1: VP-480 CV to 3G HD-SDI Scaler

# Feature Function

1 ON LED Lights green when the device is powered on

2 INPUT LED Lights green when a composite video signal is detected on the

input

3 MENU Button Press to display the OSD (On-screen Display) menu.

When the OSD is not displayed, press together with the –

button to set the output resolution to 720p (1280x720)

4 ENTER Button In the OSD, press to select the highlighted menu item.

When the OSD is not displayed, press together with the +

button to set the output resolution to 1080p (1920x1080)

5 – Button In the OSD, press to step up through the options or to

decrement the parameter value

6 + / FREEZE Button In the OSD, press to step down through the options or to

increment the parameter value.

When the OSD is not displayed, press to freeze the display

7 CV IN BNC

connector

Connect to a composite video source

8 AUDIO IN LEFT

RCA Connector

Connect to the left channel of the unbalanced stereo audio

source. Audio from this input is output to SDI channel 1 of the

first group

9 AUDIO IN RIGHT

RCA Connector

Connect to the right channel of the unbalanced stereo audio

source. Audio from this input is output to SDI channel 2 of the

first group

10 SDI OUT 1 BNC

Connector

Connect to SDI acceptor 1. The signal is re-clocked and

equalized

11 SDI OUT 2 BNC

Connector

Connect to SDI acceptor 2. The signal is re-clocked and

equalized

12 5V DC Connect to the +5V DC power adapter, center pin positive
