6 VP-480 - Connecting the VP-480

5 Connecting the VP-480

Always switch off the power to each device before connecting it to your

VP-480. After connecting your VP-480, connect its power and then

switch on the power to each device.

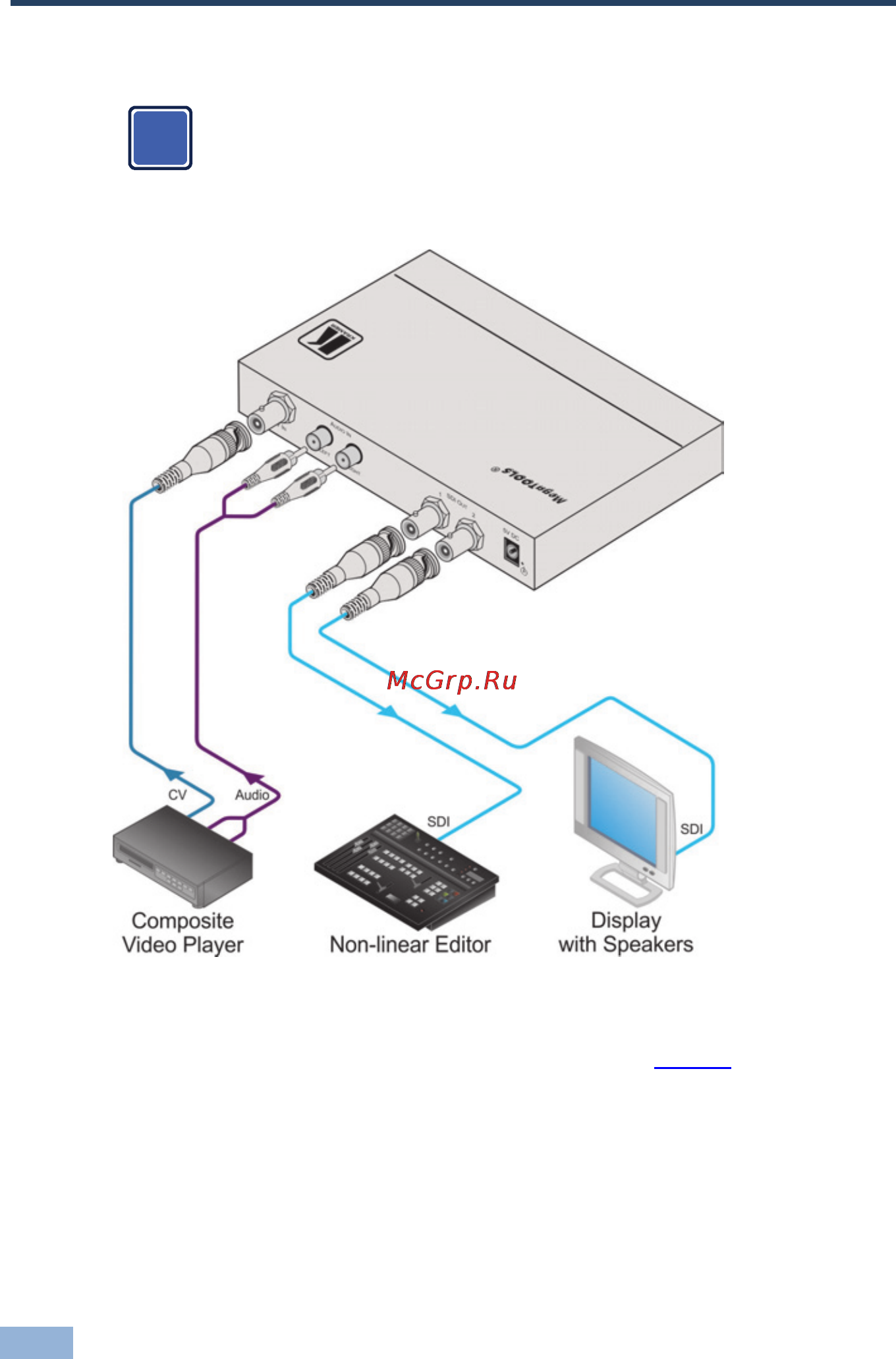

Figure 2: Connecting the VP-480 CV to 3G HD-SDI Scaler

To connect the VP-480 as illustrated in the example in Figure 2:

1. Connect a composite video source (for example, a composite video player)

to the CV IN BNC connector.

2. Connect an unbalanced stereo audio source (for example, the audio output

from the composite video player) to the LEFT and RIGHT AUDIO IN RCA
