Power Sockets for Pop-up TBUS
The Pop-up TBUS series requires a uniquely designed power socket, as illustrated in the
example in
Figure 1.

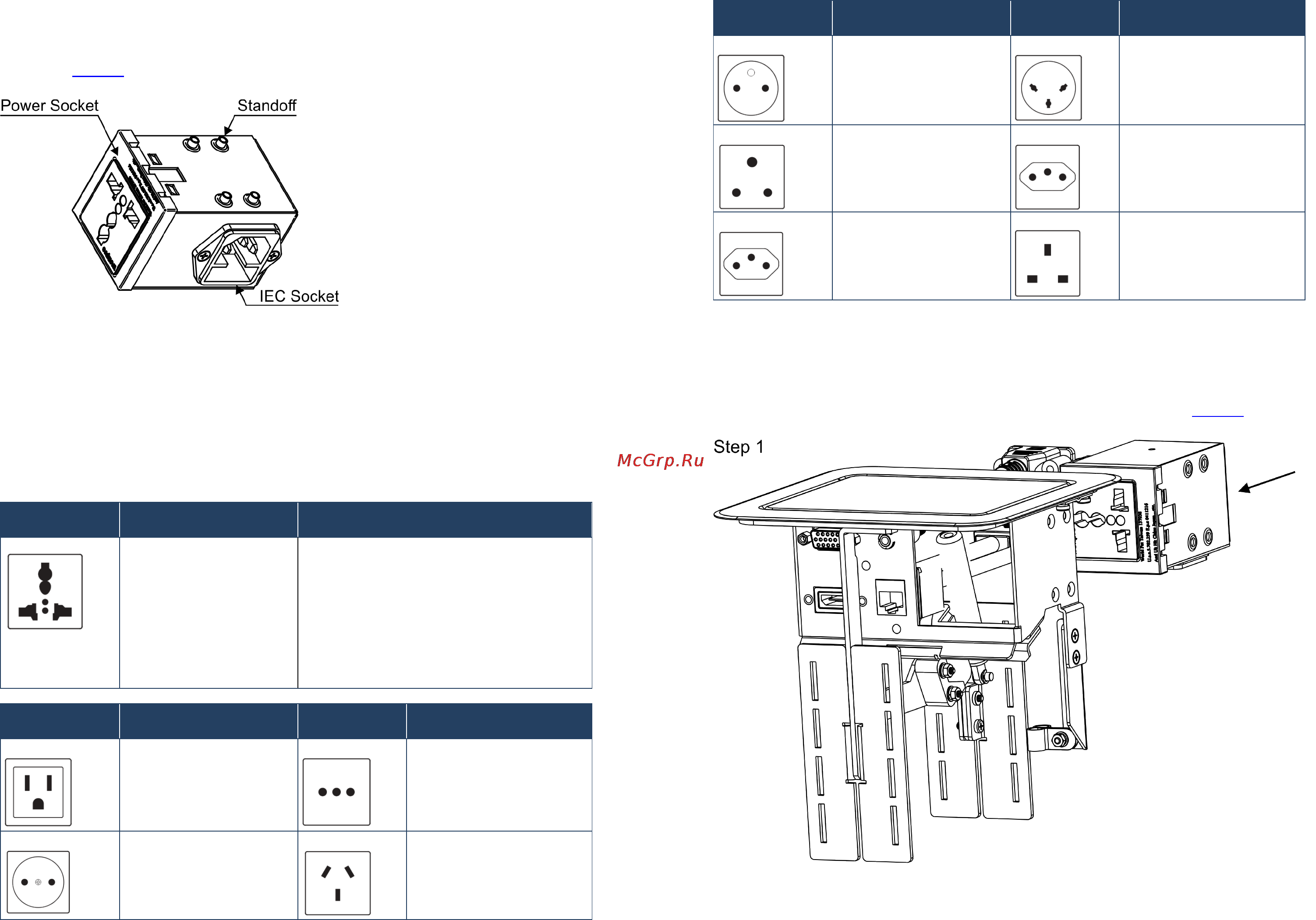

Figure 1: The TBUS-201 Power Socket
Power Socket Assemblies
A choice of power sockets is available for purchase in several versions, including power sockets
for the USA, Brazil, Germany (the Europlug), UK, Switzerland, Belgium-France, Italy, South
Africa, Israel and Australia. A “Universal” socket for general use is also available (see the
compatibility restrictions in the table below). Note that the photos below are for illustration
purposes only.
Power Socket
Type
Power Specs Description
Universal:
TS-201U (80-000043)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Fully compatible with power plugs in the UK, India,
Italy and Denmark, as well as with the 2-prong
Europlug.
Partially compatible (if the polarity is reversed) with
plugs in China, Switzerland, Israel and the USA. The
universal socket does not supply grounding to plugs in
Central Europe and France and so you should order
country specific sockets instead.
Not compatible with South African plugs.
Power Socket
Type
Power Specs Power Socket
Type
Power Specs
USA:
TS-201US (80-000046)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Italy:
TS-201IT (80-000047)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Germany and EU:
TS-201DE (80-000044)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Australia:
TS-201AU (80-000050)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Power Socket
Type
Power Specs Power Socket
Type
Power Specs
Belgium and France:
TS-201FR (80-000045)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Israel:
TS-201IL (80-000053)
220V AC, 50/60Hz, 5A
Maximum 5A per power outlet
South Africa:
TS-201ZA (80-000052)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Brazil:
TS-201BR (80-000051)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Switzerland:
TS-201CH (80-000049)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
England:
TS-201GB (80-000048)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Power Socket Installation
To install the power socket (the universal power socket installed on the TBUS-201 in this
example), insert it into the power socket opening from behind the unit so that the four standoffs
face the right side of the Pop-up TBUS and the IEC socket faces down, see
Figure 2.
Figure 2: Inserting the Power Socket (Step 1)
