Align the four standoffs on the power socket to the four screw holes on the TBUS-201 side.
Insert the four screws (supplied with the unit) and fasten them to tighten the power socket in
place, see
Figure 3:

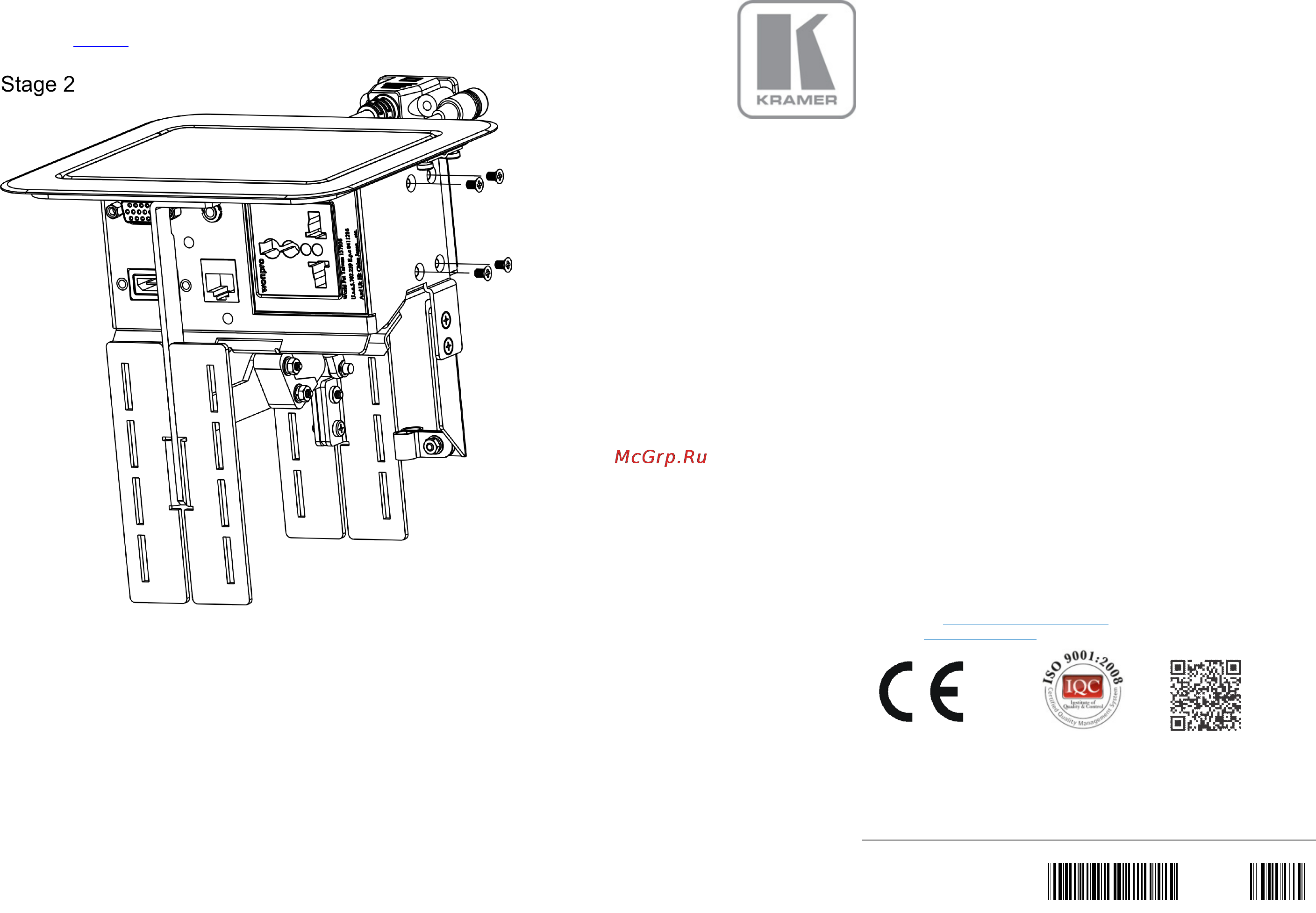

Figure 3: Inserting the Power Socket (Step 2)
KRAMER ELECTRONICS LTD.
Installation
Instructions
Pop-up TBUS Series
Power Socket Installation
Instructions
For the latest information on our products and a list of Kramer
distributors, visit our Web site where updates to these installation
instructions may be found
We welcome your questions, comments,
and feedback.
Web site:
E-mail:
www.kramerelectronics.com
info@kramerel.com
For more detailed
information regarding
this product scan the
QR code:
!
SAFETY WARNING
Disconnect the unit from the power
supply before opening and servicing
P/N: 2900-300259 Rev 2
P/N:
2900- 300259
Rev:
2
