SPK-C611 - Your SPK-C611 5
5

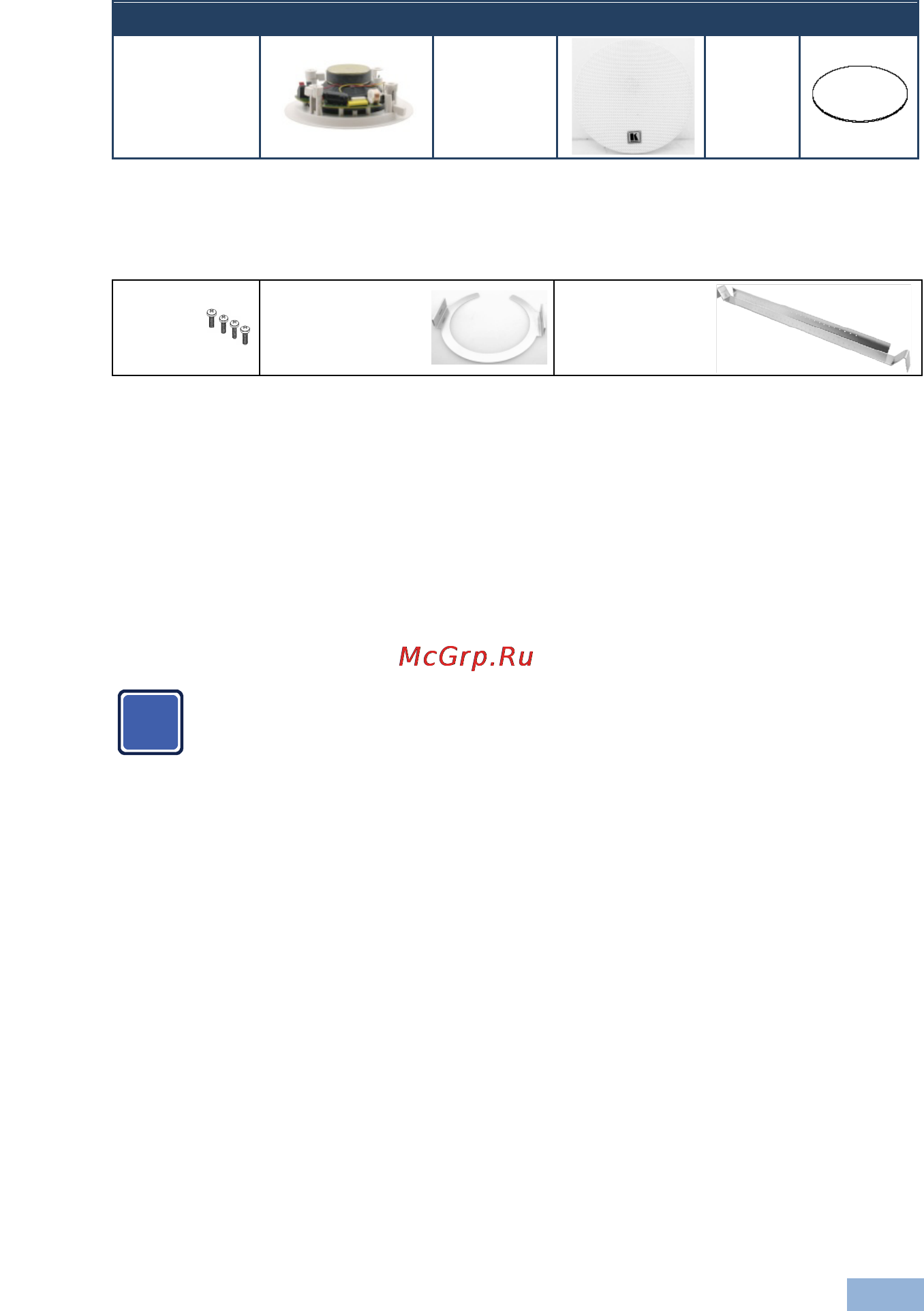

The following table defines the Open-back ceiling speaker hardware items (per
speaker pair):
Description
A pair of ceiling
speakers
(one shown)
Two grilles
(one shown)
Cutout
template
The following table defines the items that make up the optional Suspended Ceiling
Speaker Mounting Kit (SKIC):
Four
support
ring
screws
Two ceiling
support rings
(C-ring) – (one
shown)
Two pairs of tile
rails (one of a
pair shown)
Each Open-back ceiling speaker is supported by a C-ring and two tile rails. The tile
rails prevent the speakers from falling if the tile itself comes out or falls apart, as
their ends catch onto the T-grid.
When mounting onto the ceiling tiles, use both supports. When mounting onto a
sheetrock ceiling, the C-ring alone is used to reinforce the ceiling material.
Be sure that the tiles can support the speaker. Smaller sized tiles or
fiberglass-type tiles cannot support the weight of the speakers.
When this is the case, the speakers will need additional support.
