Yarden 6-ID - Installing the Yarden 6-ID

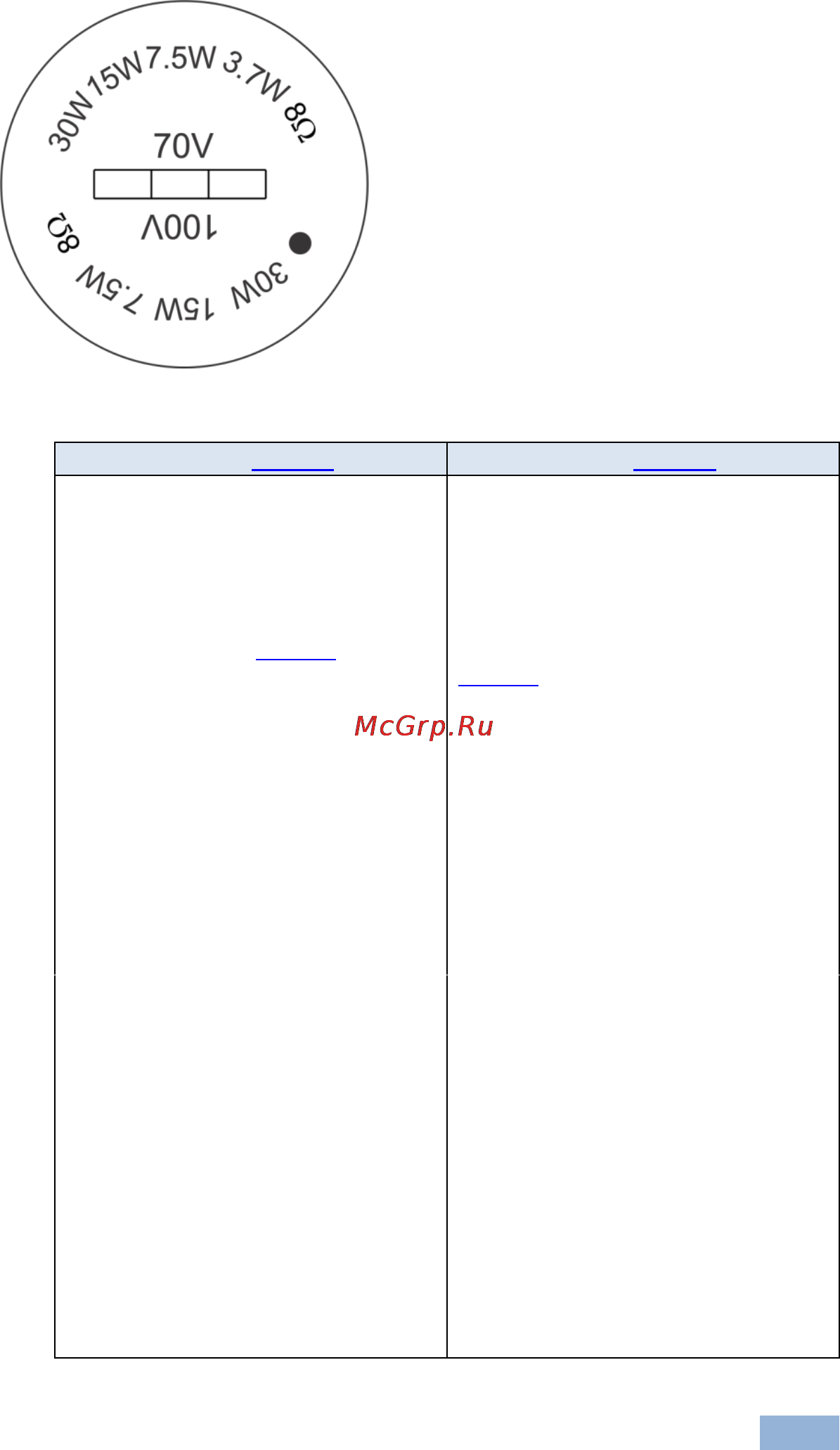

Figure 4: Adjust Tap Selector

Stereo Mode (see Figure 2)

Mono Mode (see Figure 8)

Set the selector switch to STEREO.

Set the selector switch to MONO.

Push the grille firmly in place.

On the L terminal block, connect one

of the + and – terminal block pairs on

the rear panel (see Figure 1) by

connecting the wire from the:

 Negative left terminal on the

receiver into the negative

terminal block of the speaker

 Positive left terminal on the

receiver into the positive

terminal block of the speaker

On any one of the terminal blocks,

connect one of the + and – terminal

block pairs on the rear panel (see

Figure 1) by connecting the wire from

the:

 Negative terminal on the

receiver into the negative

terminal block of the speaker

 Positive terminal on the

receiver into the positive

terminal block of the speaker

On the R terminal block, connect

one of the + and – terminal block

pairs on the rear panel by

connecting the wire from the:

 Negative right terminal on the

receiver into the negative

terminal block of the speaker

 Positive right terminal on the

receiver into the positive

terminal block of the speaker
