Yarden 6-ID - Overview

Feature

Function

Tap Selector

Adjust each speaker to the appropriate tap setting:

For 70V: 3.7W, 7.5W, 15W or 30W

For 100V: 7.5W, 15W or 30W

Or select 8 (to bypass the transformer when connecting

directly to an amplifier without using the 70/100V array

option), see Figure 4

Tweeters

2 pivoting tweeters, reproduce the higher frequency sounds

Woofer Driver

Reproduces low frequencies

Speaker Grille

Protects the internal components of the speaker from

foreign objects.

Selector Switches

Stereo/Mono to select the stereo or mono option

Music/Speech to select the music or speech option

Left (L) and Right (R)

Terminal Block

Connectors

Use the left and right terminal blocks to setup a stereo

speaker (see Figure 2)

Note that you can use any one of the two terminal block

connecters for a “Mono” setup (once the selector switch is

set to Mono): one +, - pair for the input (see Figure 8)

Mounting Tab (6)

For installing the speaker in the wall.

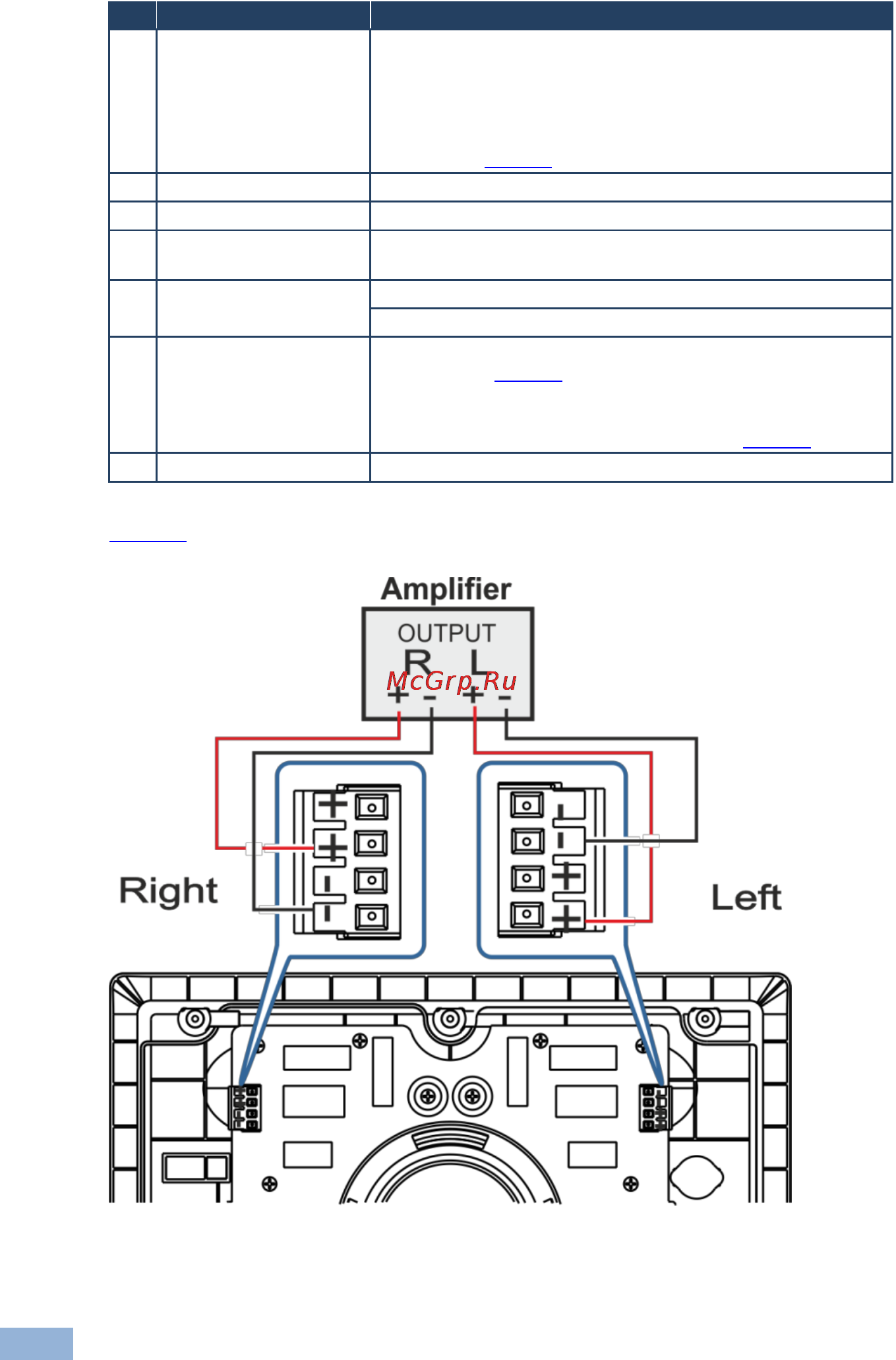

Figure 2 shows the Yarden 6-ID setup in stereo mode:

Figure 2: Yarden 6-ID Stereo Mode
