KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the 906 Amplifier
8

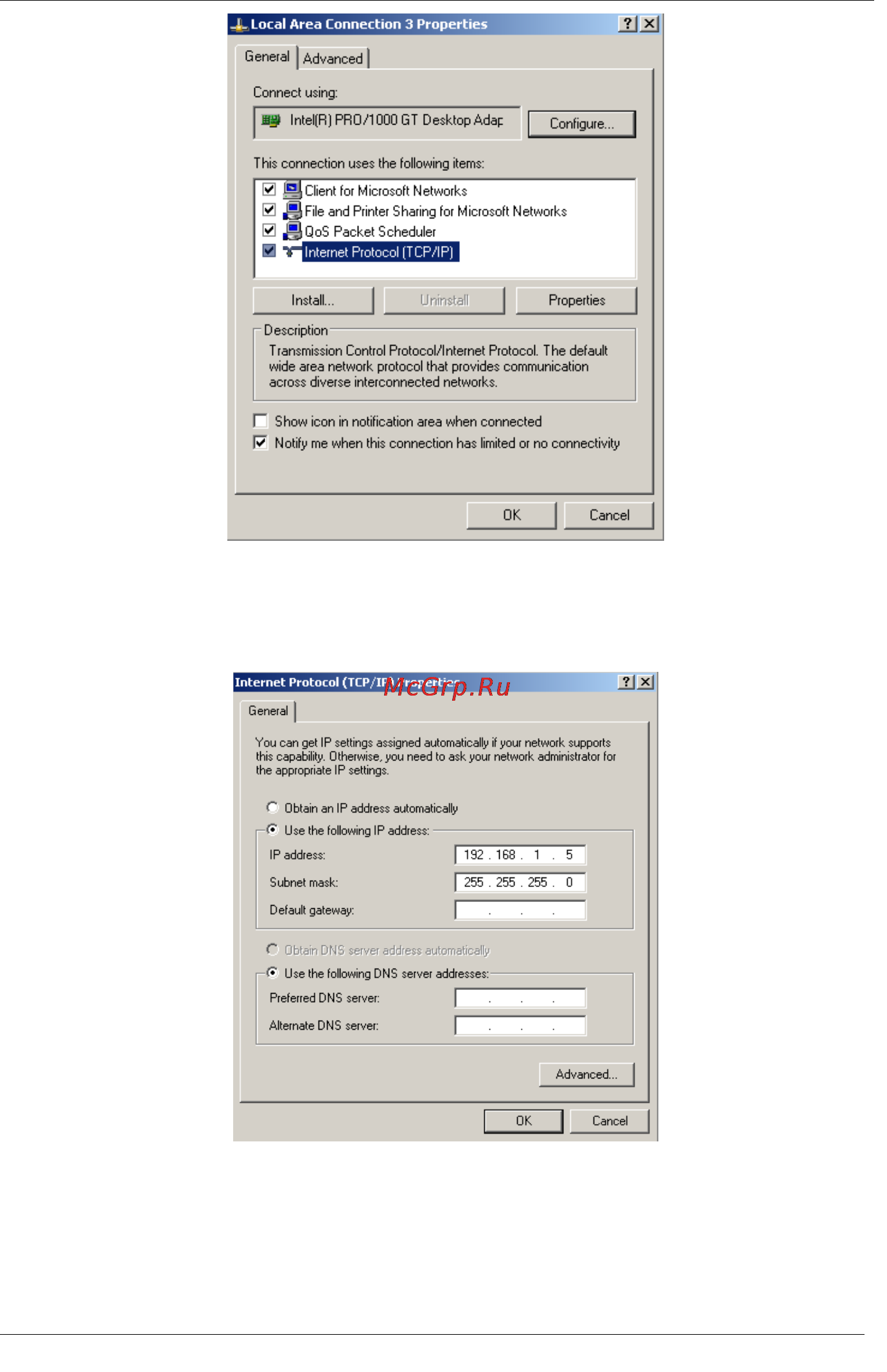

Figure 5: Local Area Properties Window
4. Select Internet Protocol (TCP/IP) and click Properties.
The Internet Protocol (TCP/IP) Properties Window appears:
Figure 6: Internet Protocol (TCP/IP) Properties Window
5. Click Use the following IP address and enter the IP address and Subnet
mask shown above. Click OK and OK to close both windows and save the
settings.
