Your 906 Amplifier

4 Your 906 Amplifier

Figure 1 and Table 1 define the 906.

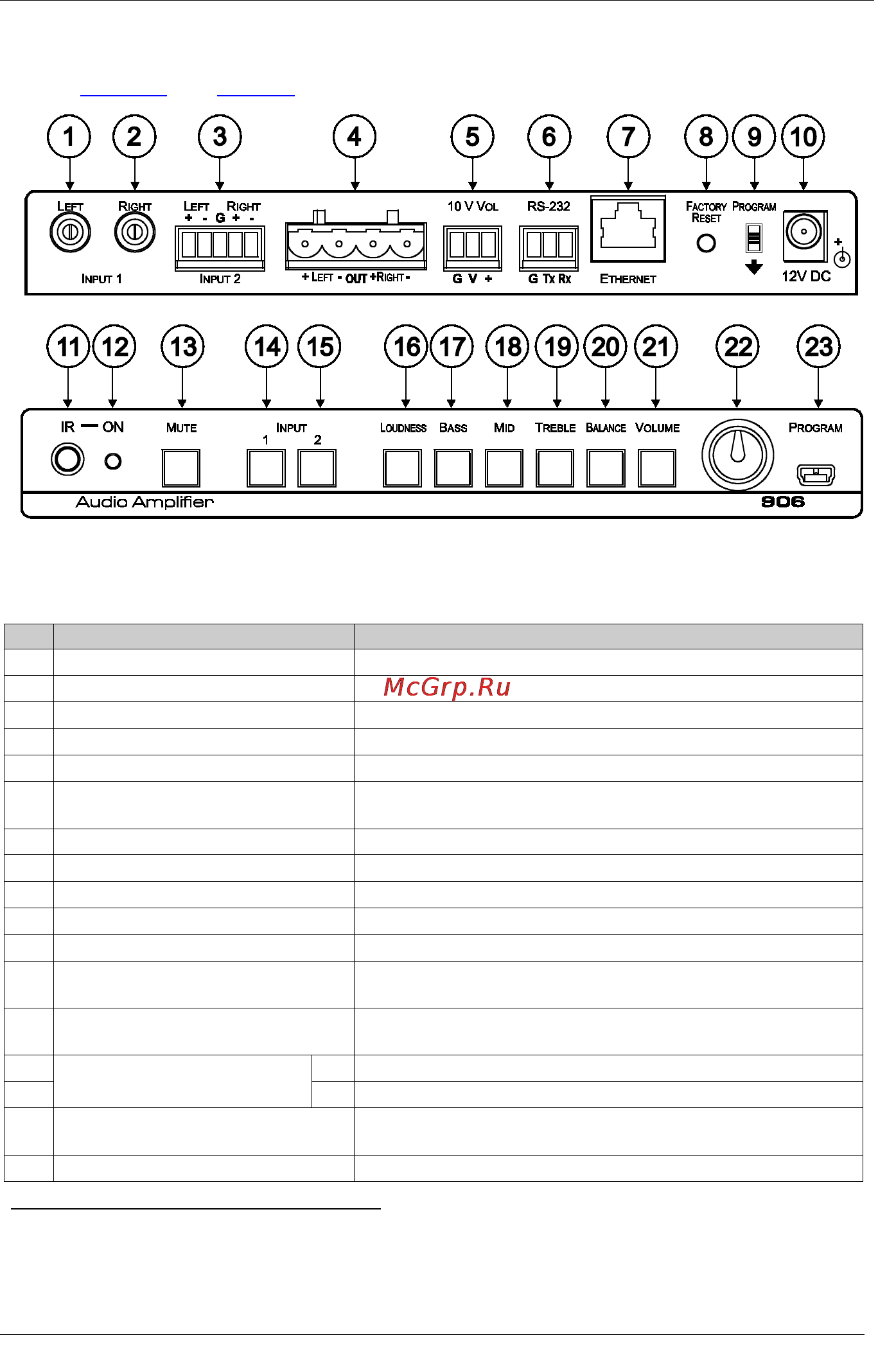

Figure 1: 906 Amplifier

Table 1: 906 Amplifier Functions

Feature

Function

1 INPUT 1 L RCA Connector Connect to the left unbalanced stereo analog audio source 1

2 INPUT 1 R RCA Connector Connect to the right unbalanced stereo analog audio source 1

3 INPUT 2 Terminal Block Connector Connect to the balanced stereo audio source 2

4 OUT Terminal Block Connector Connect to a balanced stereo acceptor (speakers)

5 10V VOL Terminal Block Connector Connect to a controller

to adjust the volume via the controller

RS-232 Tx Rx G Terminal Block

Connector

Control connector for RS-232

7 ETHERNET Port Connects to your LAN

FACTORY RESET Button Press to reset to the factory default state

9 PROGRAM Switch For factory use only

10 12V DC Connector +12V DC for powering the unit

11 IR IN Receiver Accepts IR remote commands

12 ON LED Illuminates green when receiving power, flashes when

receiving IR commands

13 MUTE Button Press to disable/enable the audio output. The button

illuminates when the audio output is disabled

14 INPUT SELECTOR Buttons 1 Press to select the input 1 audio source

15 2 Press to select the input 2 audio source

16 LOUDNESS Adjustment Button Press to select the loudness adjustment, adjust with the Level

Knob

17 BASS Adjustment Button Press to select the bass adjustment, adjust with the Level Knob

1 For example, the Kramer RC-63A

2 Local Area Network (that is, computers sharing a common communications line or wireless link, which often share a server

within a defined geographic area)
