Kramer 906 [10/27] Connecting a pc
![Kramer 906 [10/27] Connecting a pc](/views2/1154041/page10/bga.png)
Connecting the 906 Amplifier
7
7
5.2 Connecting a PC
You can connect a PC (or other controller) to the 906 via the RS-232
terminal block connector.
To connect a PC to a 906 unit, connect the RS-232 terminal block connector
on the 906 unit to the RS-232 9-pin D-sub port on your PC, see
Figure 4

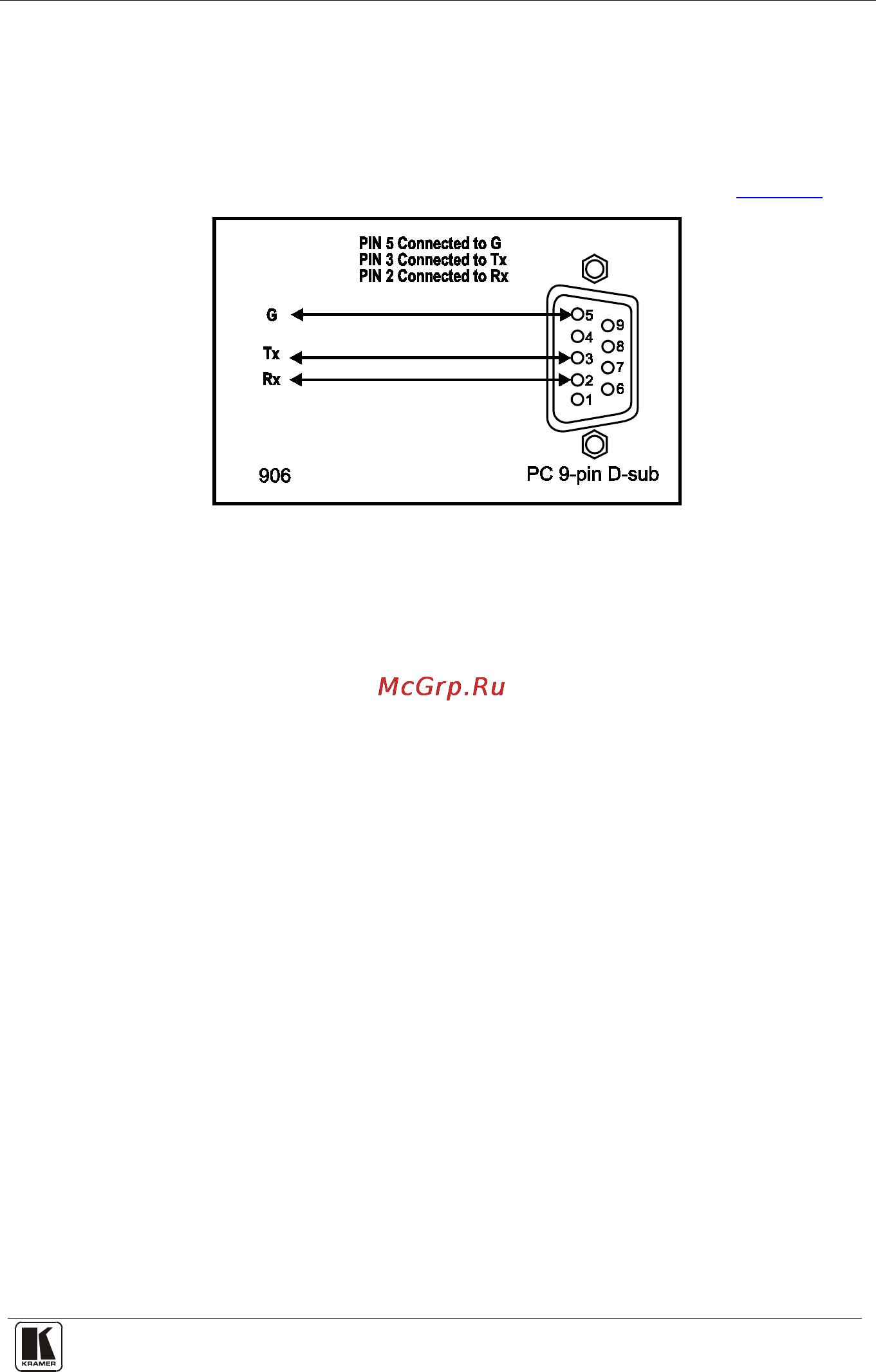

Figure 4: Connecting to a PC
5.3 Connecting the 906 via the Ethernet Port
To connect the 906 via the Ethernet port, do the following:
• When connecting to the Ethernet port on a network hub or network
router, use a straight-through cable with RJ-45 connectors
• When connecting to the Ethernet port of a PC, use a crossover
cable with RJ-45 connectors
If you are connecting the 906 directly to your computer (not through the
network) you may need to reconfigure the PC network settings.
To reconfigure the PC network settings:
1. Navigate to Start > Settings > Network Connections.
2. Click on the appropriate Local Area Connection.
3. Right-click the Local Area Connection and click Properties.
The Local Area Properties Window appears:
