Connecting and Operating the VS-406

6.1 Optional Gain Adjustment

You can set the overall gain of the loudspeaker outputs by adjusting the

gain DIP-switches located on the circuit board inside the VS-406. Settings

available are 26dB, 32dB, 38dB (factory default setting) and 42dB.

To set the gain DIP-switches:

1. Remove the screws from the top and sides that hold the top cover.

2. Remove the top cover to access the circuit board.

3. Using a small screwdriver or pointed object, slide the DIP-switches to

set the desired gain (see

Figure 3).

4. Replace the top cover and secure with the screws removed as per Step 1

above.

OFF

Rear Side

Front Side

26dB

38dB

42dB

32dB

Factory

Setting

OFF

26dB (x10)

32dB (x20)

38dB (x40)

42dB (x63)

OFF OFF

OFF

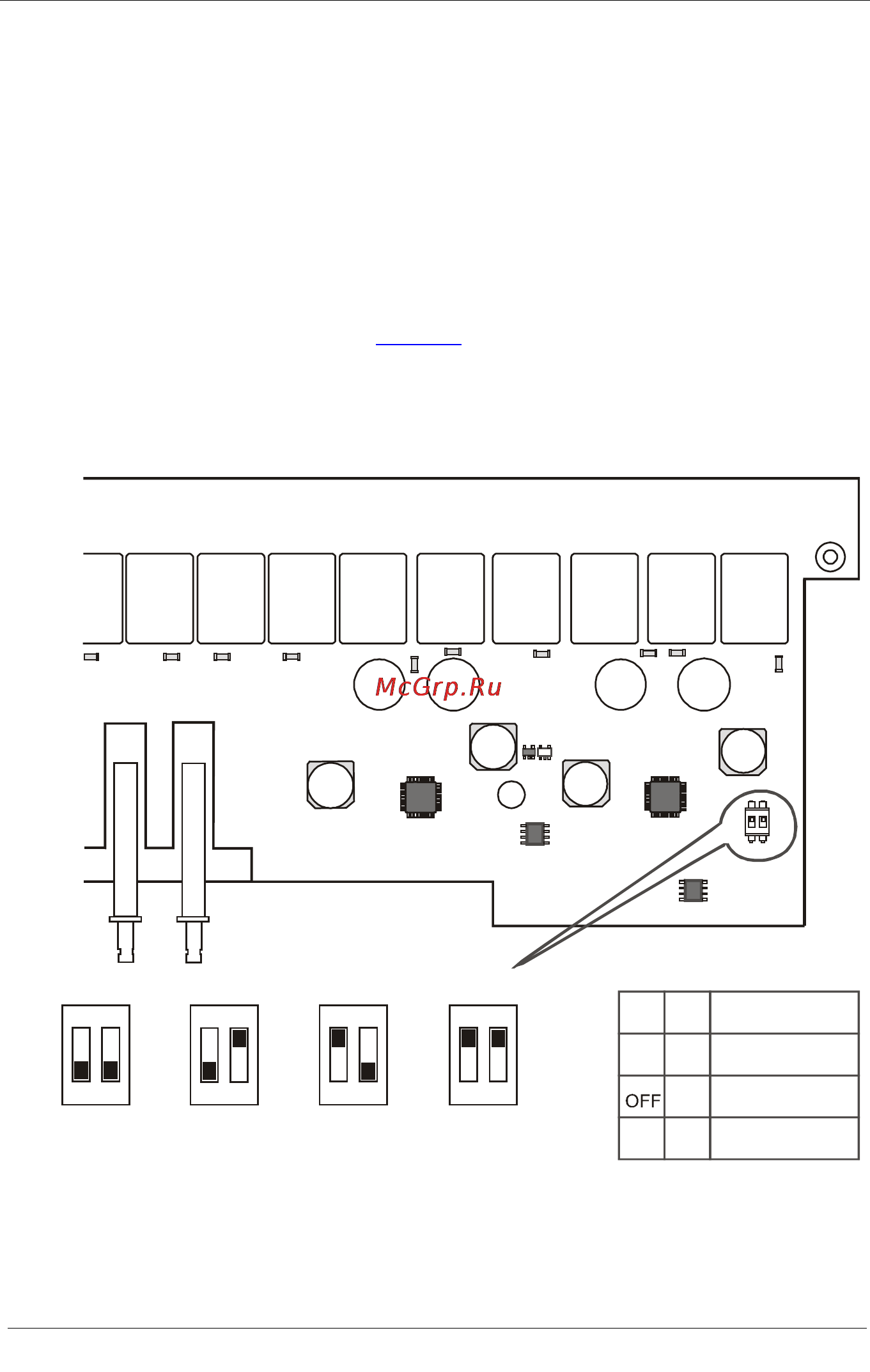

Figure 3: Adjusting the Gain DIP-Switches
