KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VS-406 Audio Selector/Amplifier

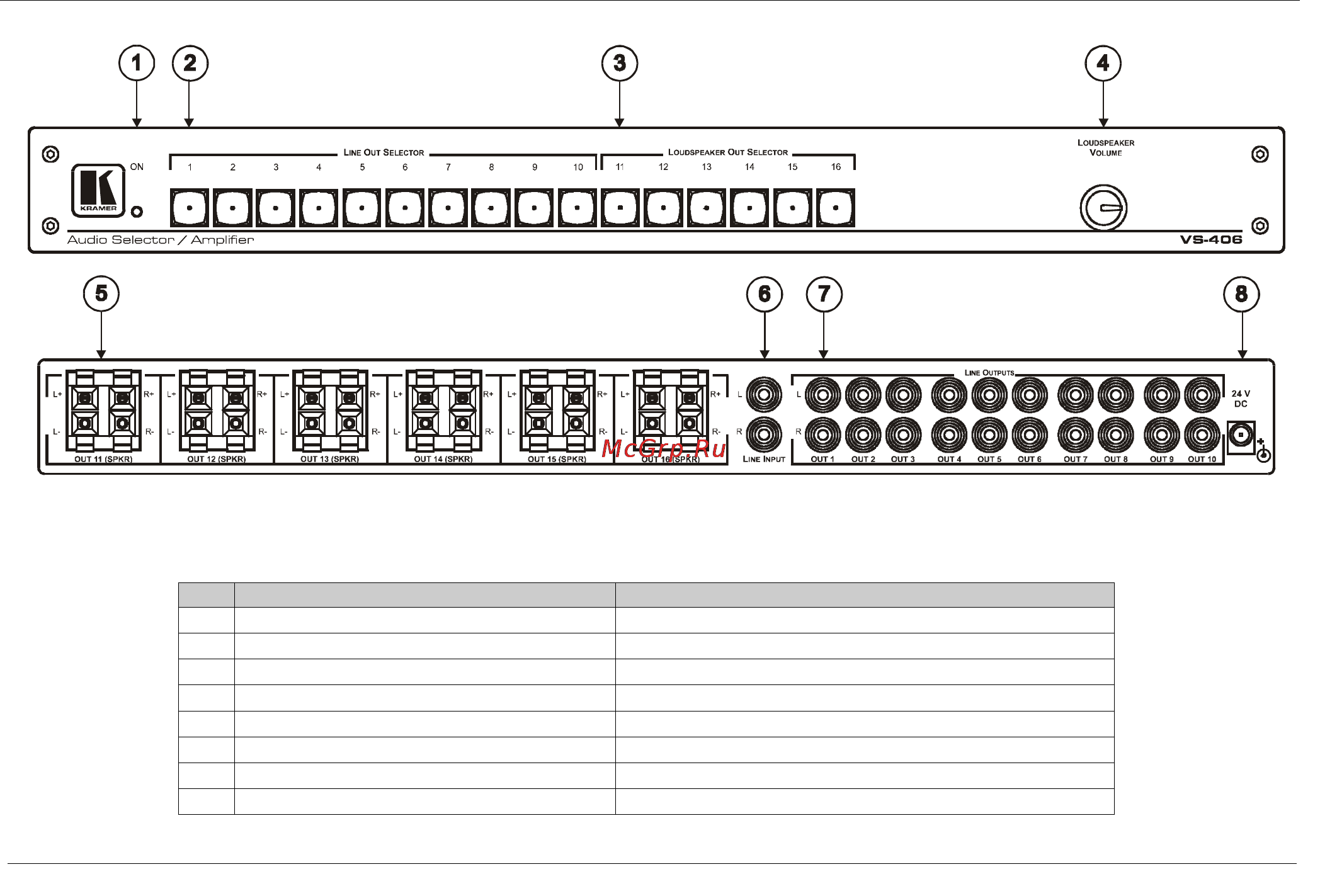

Figure 1: VS-406 Audio Selector/Amplifier

Table 1: VS-406 Audio Selector/Amplifier Functions

Feature

Function

1 ON LED Illuminates green when receiving power

2 LINE OUT SELECTOR Buttons Press to choose the output line (1 to 10)

3 LOUDSPEAKER OUT SELECTOR Buttons Press to choose the output speaker pair (11 to 16)

4 LOUDSPEAKER VOLUME Knob Turn to adjust the volume level of the selected speakers

5 OUT (SPKR) (L+, L-, R+, R-) Terminal Blocks Connect to the stereo speaker pairs (11 to 16)

6 LINE INPUT (L, R) RCA Connectors Connect to the unbalanced audio stereo line source

7 LINE OUTPUT (L, R) RCA Connectors Connect to the unbalanced audio stereo acceptors (1 to 10)

8 24V DC Connector +24V DC for powering the unit
