Samsung RV520-S04 [29/133] Overview
![Samsung RV520-S04 [29/133] Overview](/views2/1015783/page29/bg1d.png)
28
Chapter 1
Getting Started
Overview

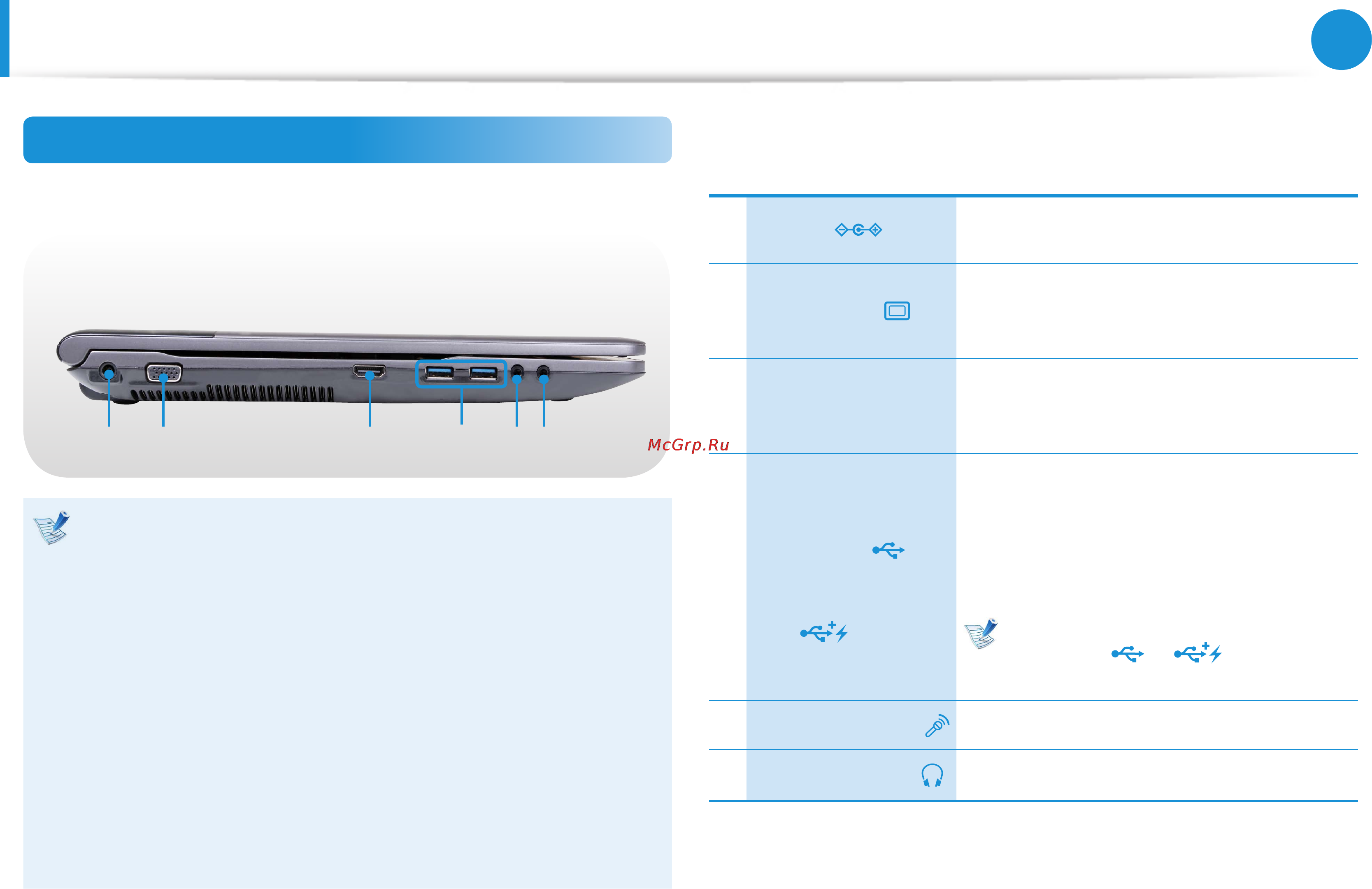

Left View
►
Model B
21 3 4 5 6
What is a chargeable USB port?
USB device accessing and charging functions are •
supported.
The USB charging function is supported regardless of •
whether the power is turned on or o.
Charging a device through a chargeable USB port may take •
longer than general charging.
Using the Chargeable USB function when the computer is •
running on battery power reduces the battery usage time.
The user cannot evaluate the charging status of the USB •
device from the computer.
This may not be supported for some USB devices.•
1 DC Jack
A jack to connect the AC adapter that
supplies power to the computer.
2 Monitor Port
A port used to connect a monitor, TV
or projector supporting a 15pin D-SUB
interface.
3
Digital Video/
Audio Port (HDMI)
(Optional)
You can connect an HDMI cable to this
port. Using this port, you can enjoy
digital video and audio on the TV.
4
USB 3.0 Port
(Blue Color)
or
Chargeable USB
Port
(Optional)
USB 3.0 ports to which you can connect
USB devices as well as a chargeable USB
port are provided.
Using a chargeable USB port, you can
access or charge a USB device.
The port can be distinguished by
the gure ( or ) printed on
the port of the product.
5
Microphone Jack
A jack used to connect the microphone.
6
Headphone Jack
A jack used to connect the headphones.
