9Smart-UPS C 1000/1500 Va 120/230 Vac Rack-Mount 2U

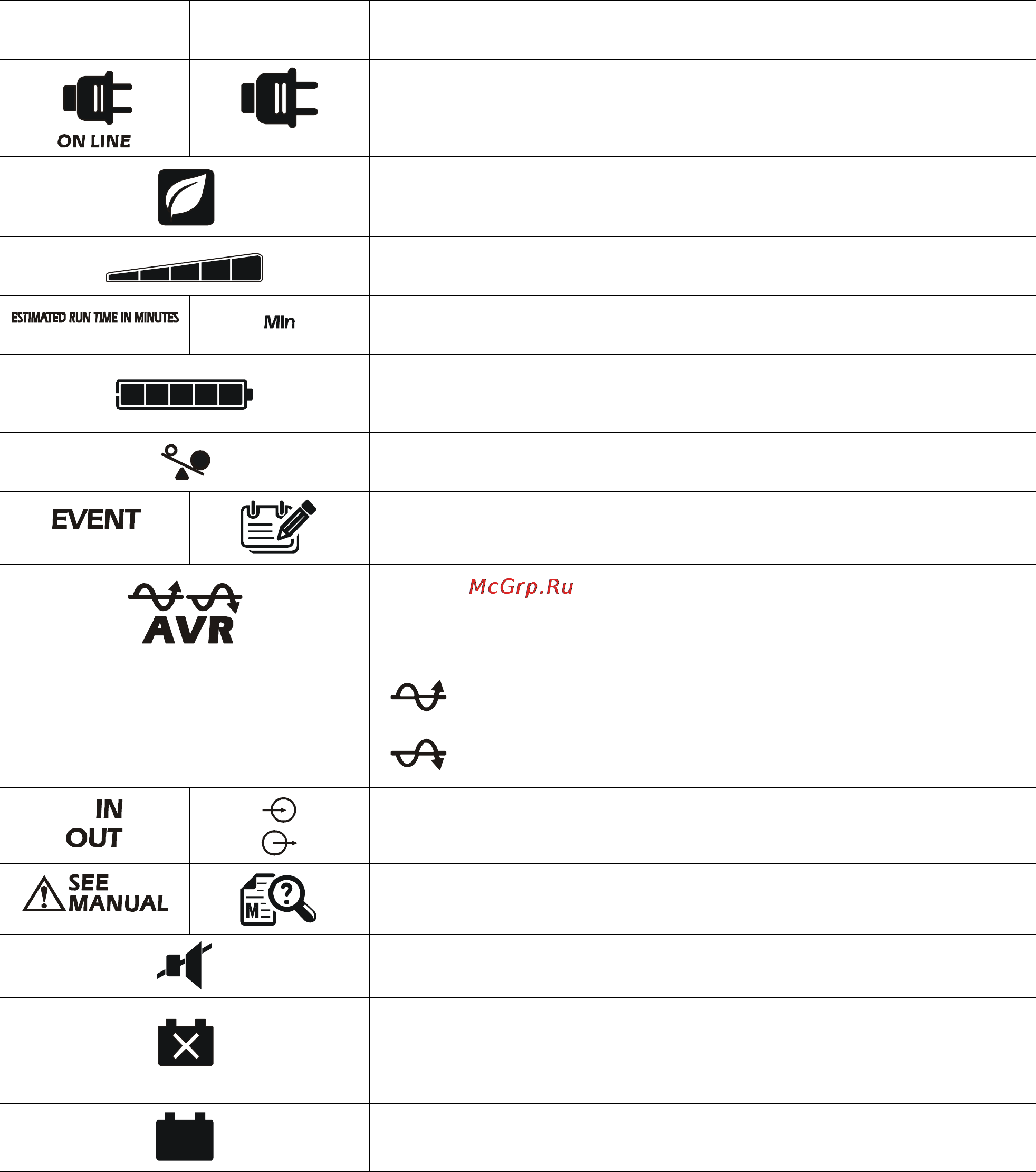

Display interface features

1000/1500 VA

120 Vac

1000/1500 VA

230 Vac Description

On Line: The UPS is supplying conditioned utility power to connected equipment.

Green mode: The UPS is operating at the most efficient level, bypassing unused AVR

components while acceptable utility voltage is present. The UPS will enter and exit

Green mode automatically and will not compromise power protection.

Load Capacity: The load capacity percentage is indicated by the number of load bar

sections illuminated. Each bar represents 20% of the load capacity.

Estimated Run Time / Min: This indicates the battery runtime minutes that remain if

the UPS switches to battery power.

Battery Charge: The battery charge level is indicated by the number of load bar

sections illuminated. When all five blocks are illuminated, the battery is fully charged.

Each bar represents 20% of the battery charge capacity.

Overload: The equipment connected to the UPS is drawing more power than the

voltage rating allows.

Event: The event counter indicates the number of events that occurred to cause the

UPS to switch to battery operation.

Automatic Voltage Regulation (AVR): The UPS has an AVR boost and trim feature

that automatically regulates high or low levels of input voltage without using battery

power. The UPS also features AVR Bypass which temporarily deactivates the AVR

circuitry when the input voltage is within normal range. This conserves battery power

and helps to maximize battery life.

When illuminated, the UPS is compensating for low input voltage.

When illuminated, the UPS is compensating for high input voltage.

In: Input voltage.

Out: Output voltage.

System Fault: An internal system fault has occurred. The fault number will illuminate

on the display. Refer to “Display interface features” on page 9.

Mute: An illuminated line through the icon indicates that audible alarms are disabled.

Battery Fault: The icon will flash to indicate that the battery is disconnected.

When the icon remains continuously illuminated the UPS has failed a Self-Test or the

battery is near the end of its service life and should be replaced.

Refer to “LCD status indicators” on page 7.

On Battery: The UPS is supplying battery backup power to the connected equipment.
