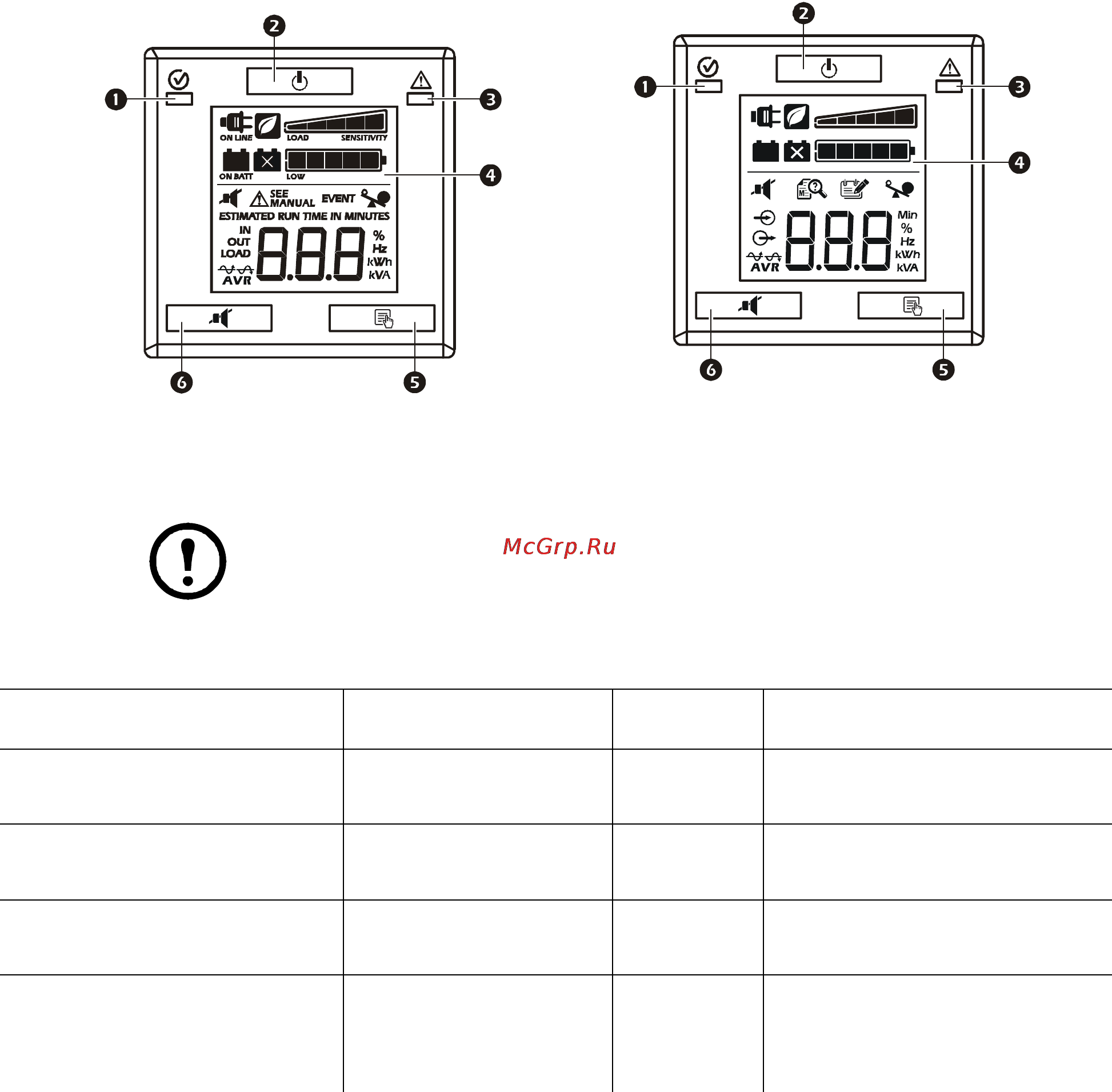

7Smart-UPS C 1000/1500 Va 120/230 Vac Rack-Mount 2U
Status Indicators
Display panel features
LED status indicators
1000/1500 VA 120 Vac 1000/1500 VA 230 Vac
1 On Line/On Battery LED 4 Display interface
2
POWER ON/OFF button 5 DISPLAY button
3 Site Wiring Fault/System Fault LED 6
MUTE button
Note: Refer to “Feature Reference Guide” on page 10 in this manual for a detailed description
of the front panel buttons and icons.
Status LED
Audible
Indicator On Audible Indicator Terminates
Power On
The UPS is supplying utility power to
connected equipment.
The On Line/On Battery
LED illuminates green.
None N/A
On Battery
The UPS is supplying battery power
from the internal battery.
The On Line/On Battery
LED illuminates amber.
The UPS beeps
4 times every 30
seconds.
The beeping stops when utility power is
restored or the
MUTE button is pressed
for two seconds.
System Fault
The UPS detects an internal system
fault.
System Fault LED
illuminates red.
Constant tone The alarm stops when the
POWER ON/OFF button is pressed for
two seconds. This creates a Fault Reset.
Site Wiring Fault
A building wiring fault has occurred.
Do not operate the UPS. Contact a
qualified electrician to correct the
building wiring fault.
Site Wiring Fault
LED flashes red.
None N/A
su0740d
su0740c
