B85M Pro4
27
English

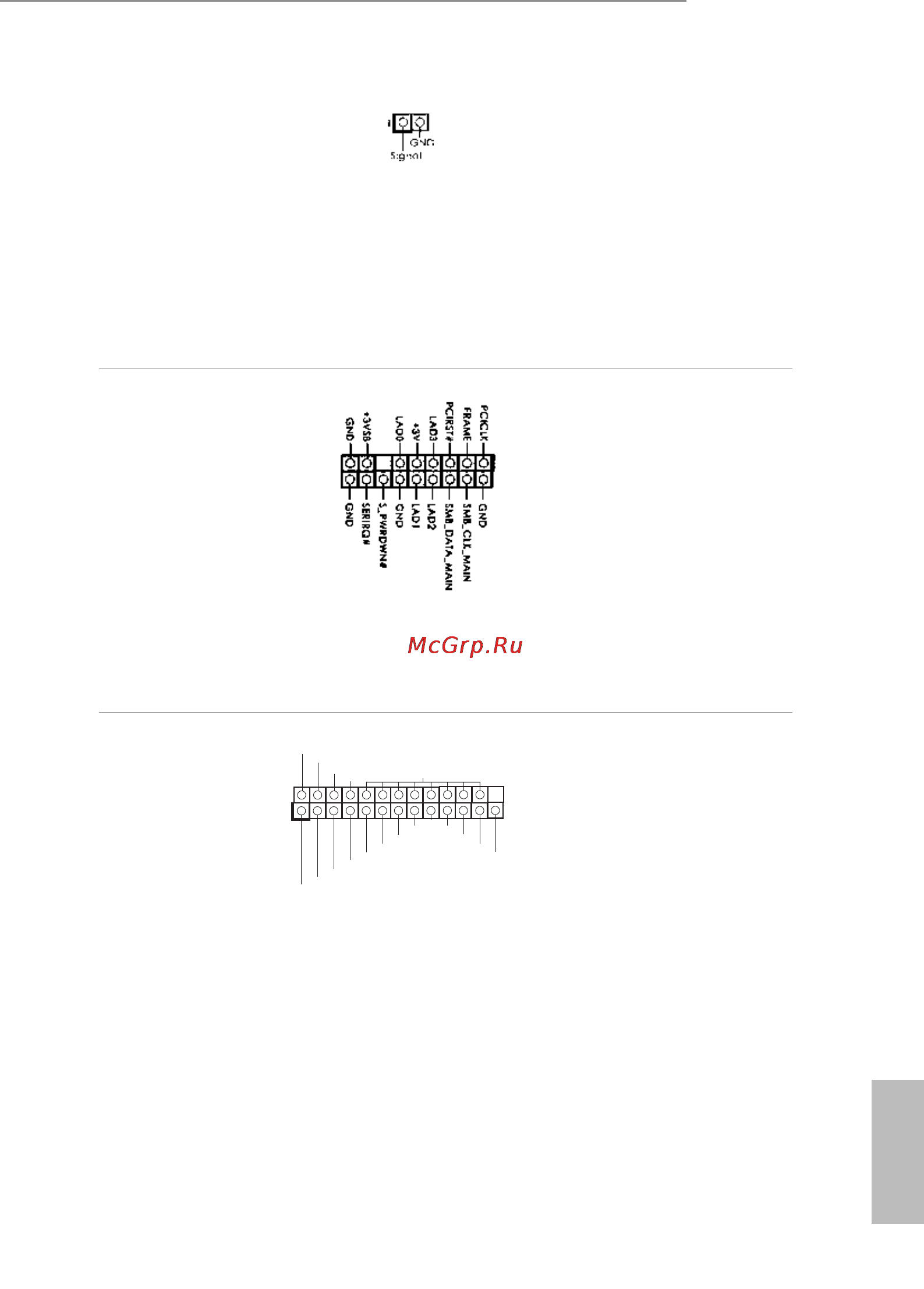

Chassis Intrusion Header
(2-pin CI1)
(see p.10, No. 19)
is motherboard
supports CASE OPEN
detection feature that
detects if the chassis cove
has been removed. is
feature requires a chassis
with chassis intrusion
detection design.
TPM Header
(17-pin TPMS1)
(see p.10, No. 18)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords,
and data. A TPM system
also helps enhance
network security, protects
digital identities, and
ensures platform integrity.
Print Port Header
(25-pin LPT1)
(see p.10, No. 20)
is is an interface
for print port cable
that allows convenient
connection of printer
devices.
1
AF D#
ER RO R#
PI NI T#
GN D
SL IN #
ST B#
SP D0
SP D1
SP D2
SP D3
SP D4
SP D5
SP D6
SP D7
AC K#
BU SY
PE
SL CT
1
