ASRock b85m pro4 [72/86] Super io coniguration
![ASRock b85m pro4 [72/86] Super io coniguration](/views2/1159407/page72/bg48.png)
68
English

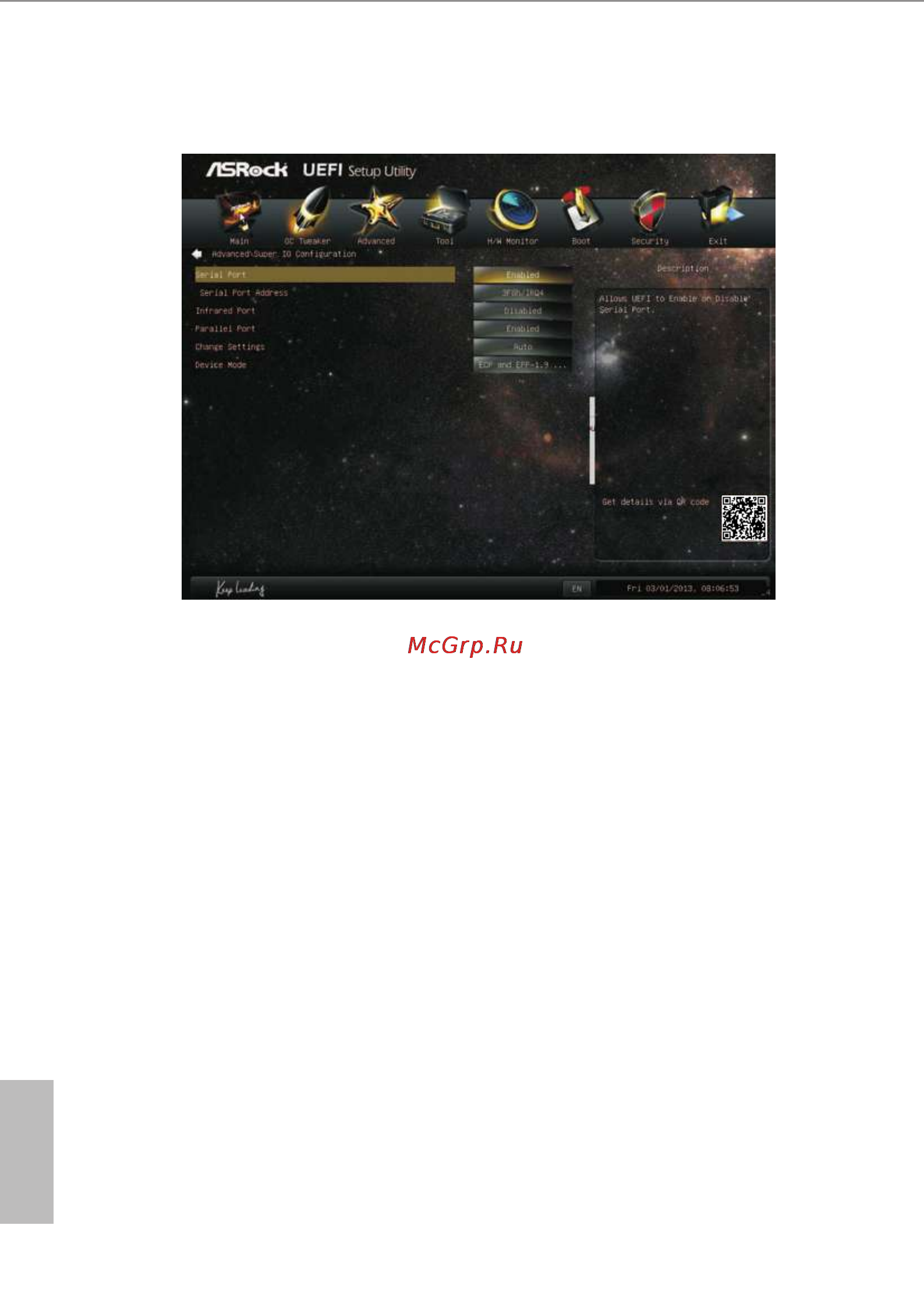

4.4.6 Super IO Conguration
Serial Port
Enable or disable the Serial port.
Serial Port Address
Select the address of the Serial port.
Infrared Port
Enable or disable the Infrared port.
Parallel Port
Enable or disable the Parallel port.
Change Settings
Select the address of the Parallel port.
Device Mode
Select the device mode according to your connected device.
