12
English

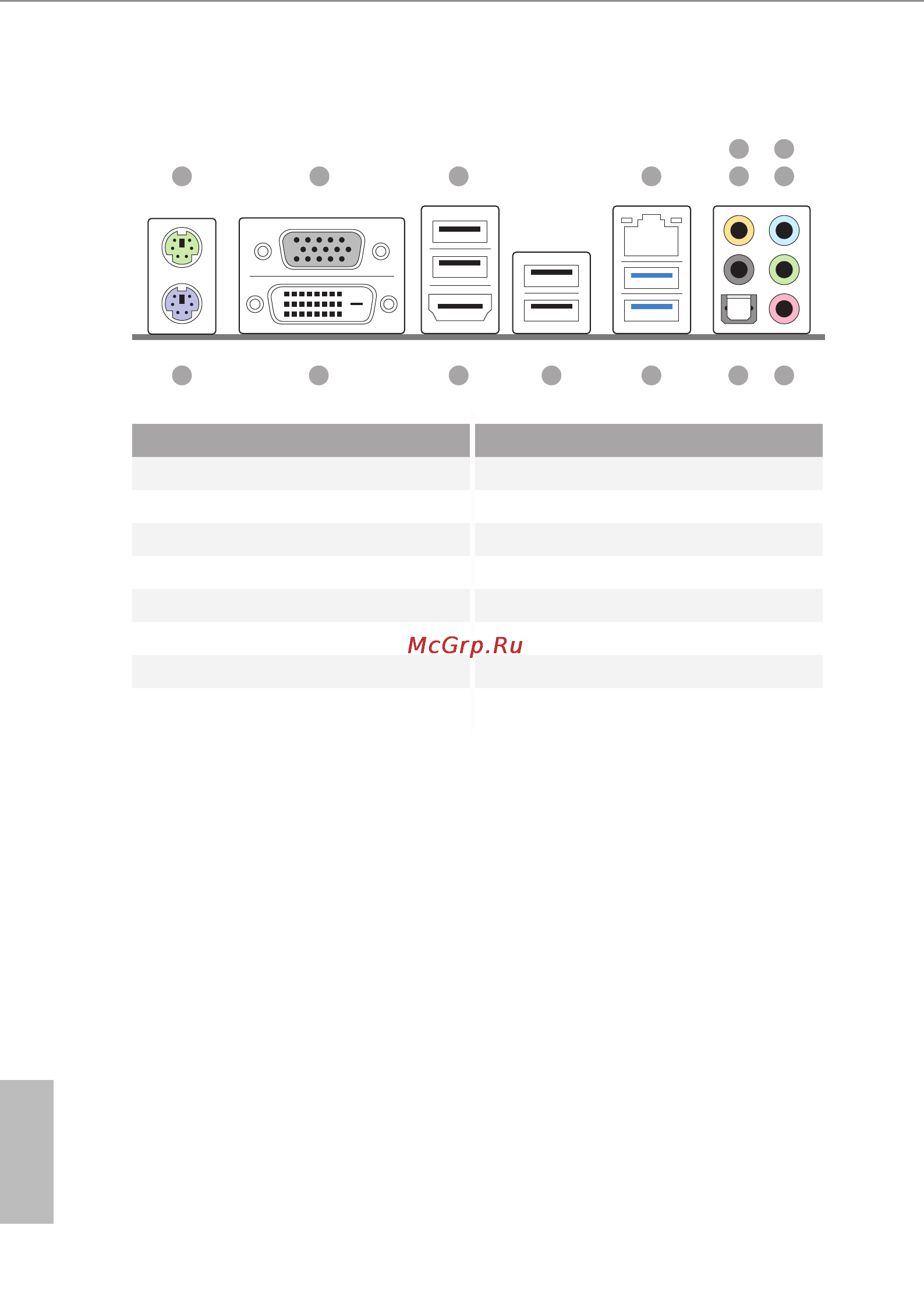

1.5 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 9 Microphone (Pink)
2 D-Sub Port 10 Optical SPDIF Out Port
3 USB 2.0 Ports (USB23) 11 USB 3.0 Ports (USB3_01)
4 LAN RJ-45 Port* 12 USB 2.0 Ports (USB_0_1)
5 Central / Bass (Orange) 13 HDMI Port
6 Rear Speaker (Black) 14 DVI-D Port
7 Line In (Light Blue) 15 PS/2 Keyboard Port
8 Front Speaker (Lime)**
91015 11121314
1 2 3 4 6
5
8
7
