B85iCafe4
57
English

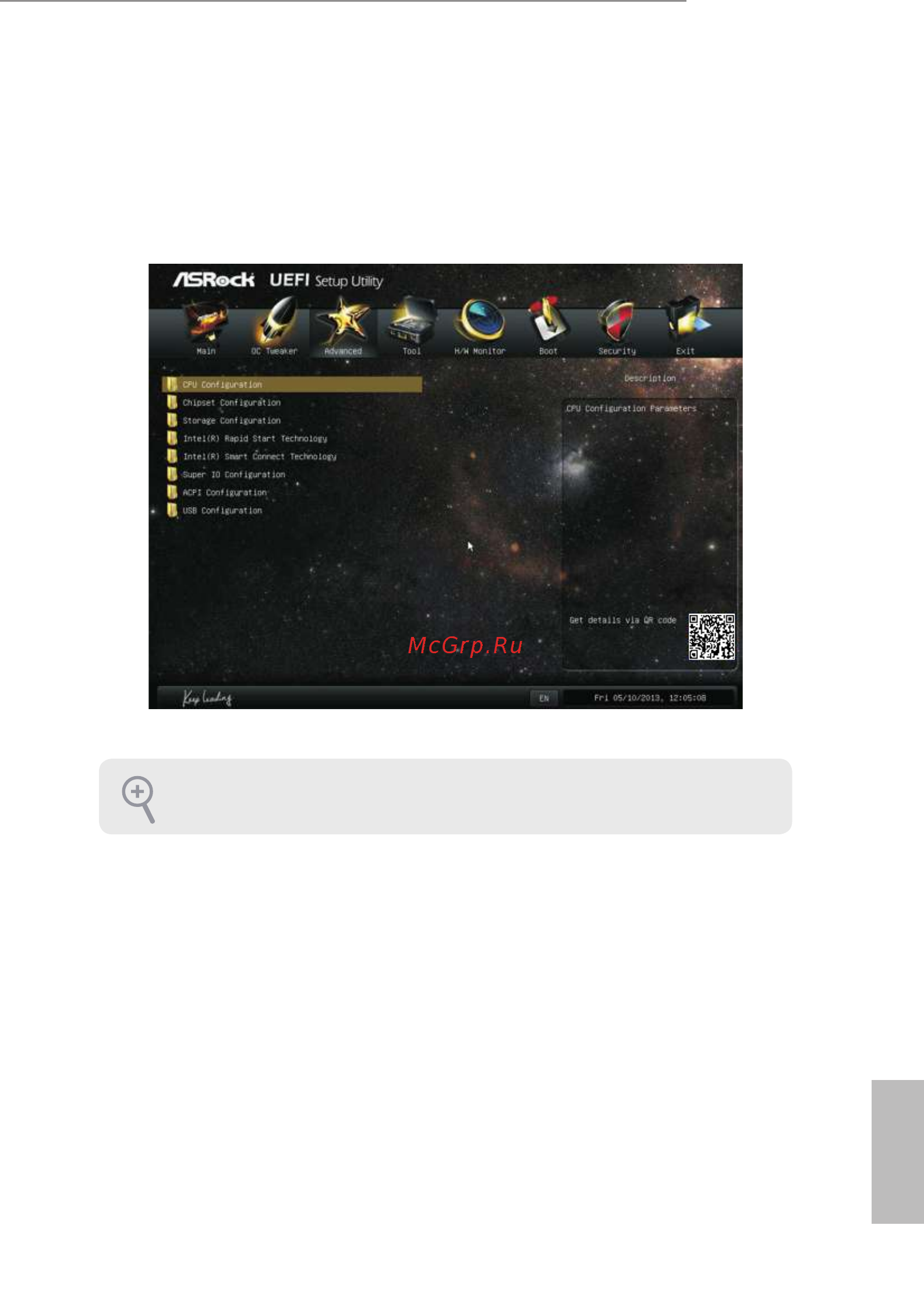

4.4 Advanced Screen
In this section, you may set the congurations for the following items: CPU
Conguration, Chipset Conguration, Storage Conguration, Intel® Rapid Start
Technology, Intel® Smart Connect Technology, Super IO Conguration, ACPI Con-
guration and USB Conguration.
Setting wrong values in this section may cause the system to malfunction.
