24
English

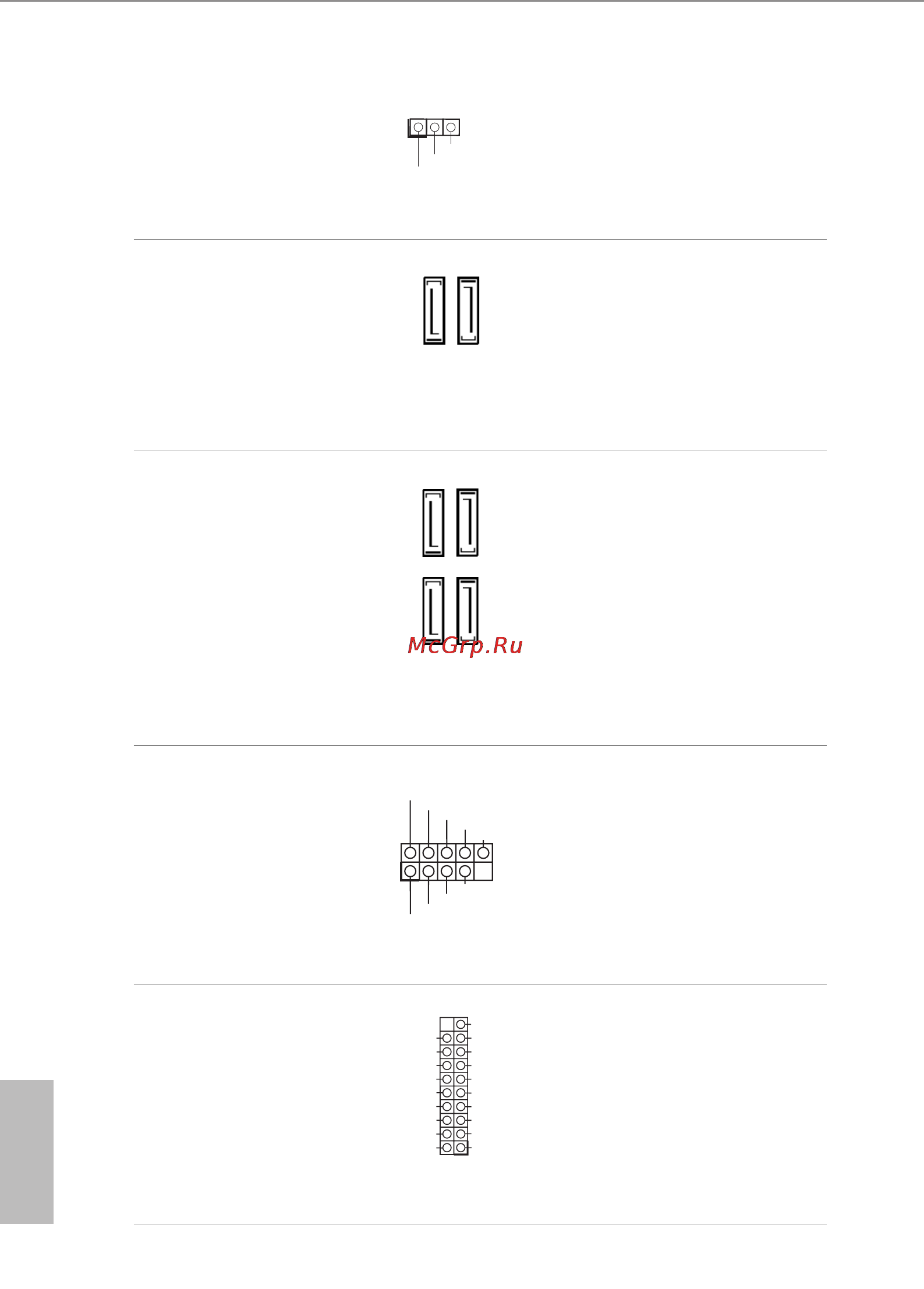

Power LED Header
(3-pin PLED1)
(see p.10, No. 16)
Please connect the chassis
power LED to this header
to
indicate the system’s
power status.
Serial ATA2 Connectors
(SATA_5:
see p.10, No. 11)
(SATA_6:
see p.10, No. 12)
ese two SATA2
connectors support SATA
data cables for internal
storage devices with up to
3.0 Gb/s data transfer rate.
Serial ATA3 Connectors
(SATA_1:
see p.10, No. 15)
(SATA_2:
see p.10, No. 14)
(SATA_3:
see p.10, No. 10)
(SATA_4:
see p.10, No. 13)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB4_5)
(see p.10, No. 21)
(9-pin USB6_7)
(see p.10, No. 20)
Besides four USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Header
(19-pin USB3_2_3)
(see p.10, No. 8)
Besides two USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. Each USB
3.0 header can support
two ports.
1
PLED+
PLED+
PLED-
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
IntA_PB _D+
Dummy
IntA_PB _D-
GND
IntA_PB _SS TX+
GND
IntA_PB _SS TX-
IntA_PB _SS RX+
IntA_PB _SS RX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
SATA_5
SATA_6
SATA_1 SATA_3
SATA_2 SATA_4
