B85iCafe4
35
English
Step 3

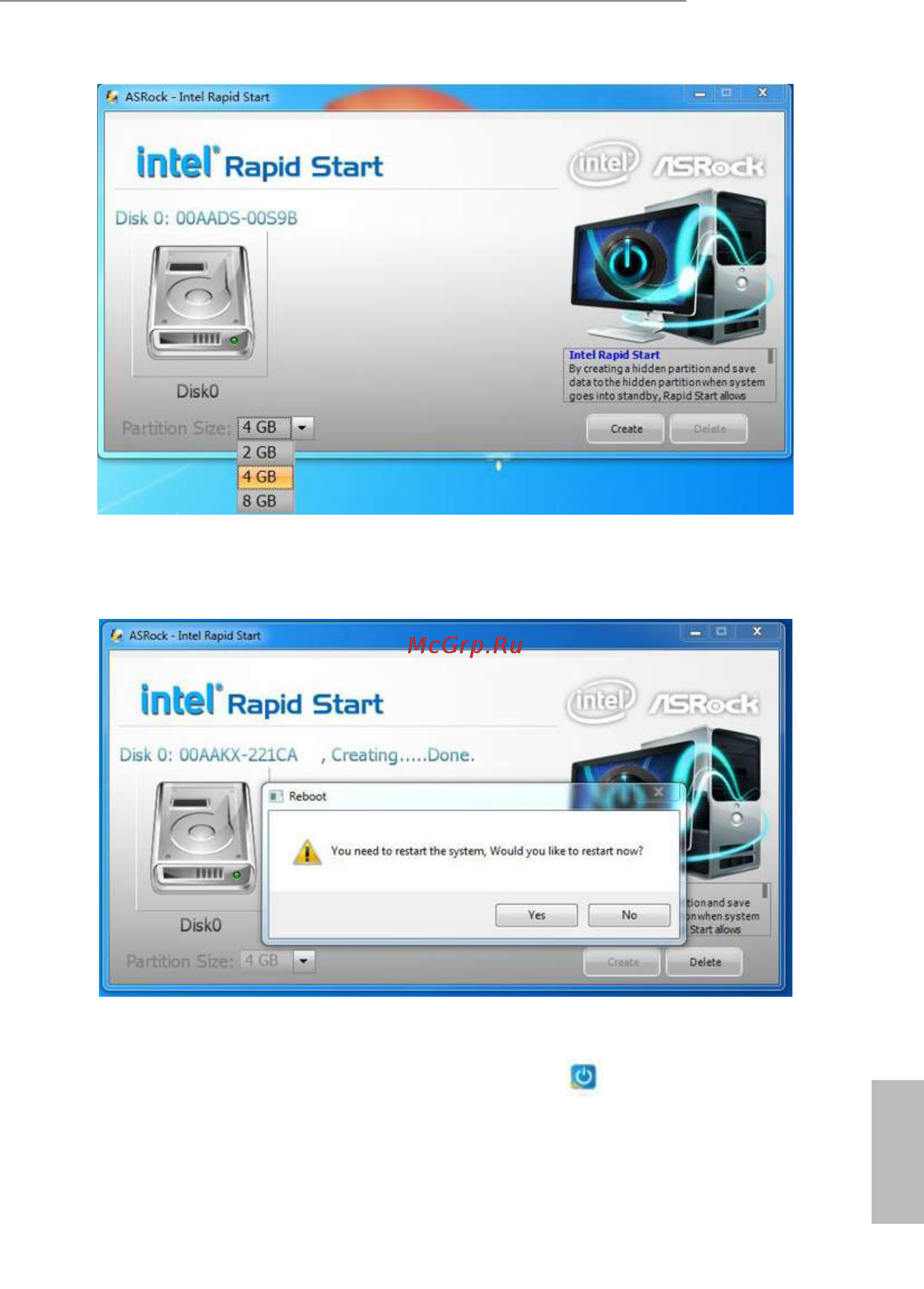

When prompted to restart aer the setup, click Yes to reboot.
Step 4
Double-click the Intel® Rapid Start Technology Manager icon in the Windows
system tray.
