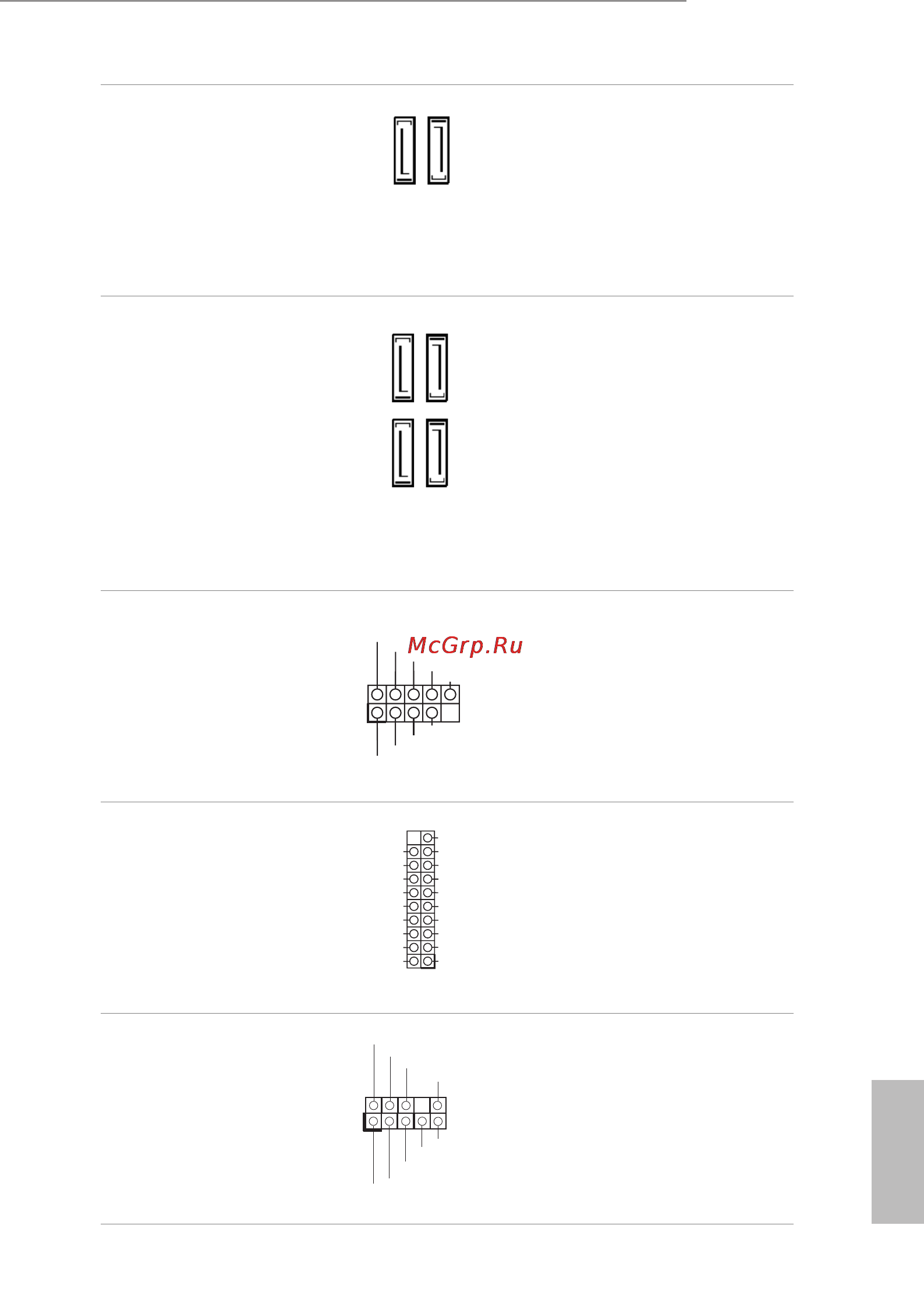

P85 Pro3
21
English
Serial ATA2 Connectors
(SATA2_4:
see p.8, No. 13)
(SATA2_5:
see p.8, No. 12)
ese two SATA2
connectors support SATA
data cables for internal
storage devices with up to
3.0 Gb/s data transfer rate.
Serial ATA3 Connectors
(SATA3_0:
see p.8, No. 9)
(SATA3_1:
see p.8, No. 10)
(SATA3_2:
see p.8, No. 8)
(SATA3_3:
see p.8, No. 11)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB4_5)
(see p.8, No. 20)
(9-pin USB6_7)
(see p.8, No. 19)
Besides four USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Header
(19-pin USB3_2_3)
(see p.8, No. 7)
Besides two USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. Each USB
3.0 header can support
two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.8, No. 23)
is header is for
connecting audio devices
to the front audio panel.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
IntA_PB _D+
Dummy
IntA_PB _D-
GND
IntA_PB _SST X +
GND
IntA_PB _SST X -
IntA_PB _SSR X +
IntA_PB _SSR X -
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
J _SENSE
O UT2_L
1
M IC_RET
P RESENCE#
GND
O UT2_R
M IC2_R
M IC2_L
OUT_RET
SATA2_4
SATA2_5
SATA3_2
SATA3_3
SATA3_0
SATA3_1
