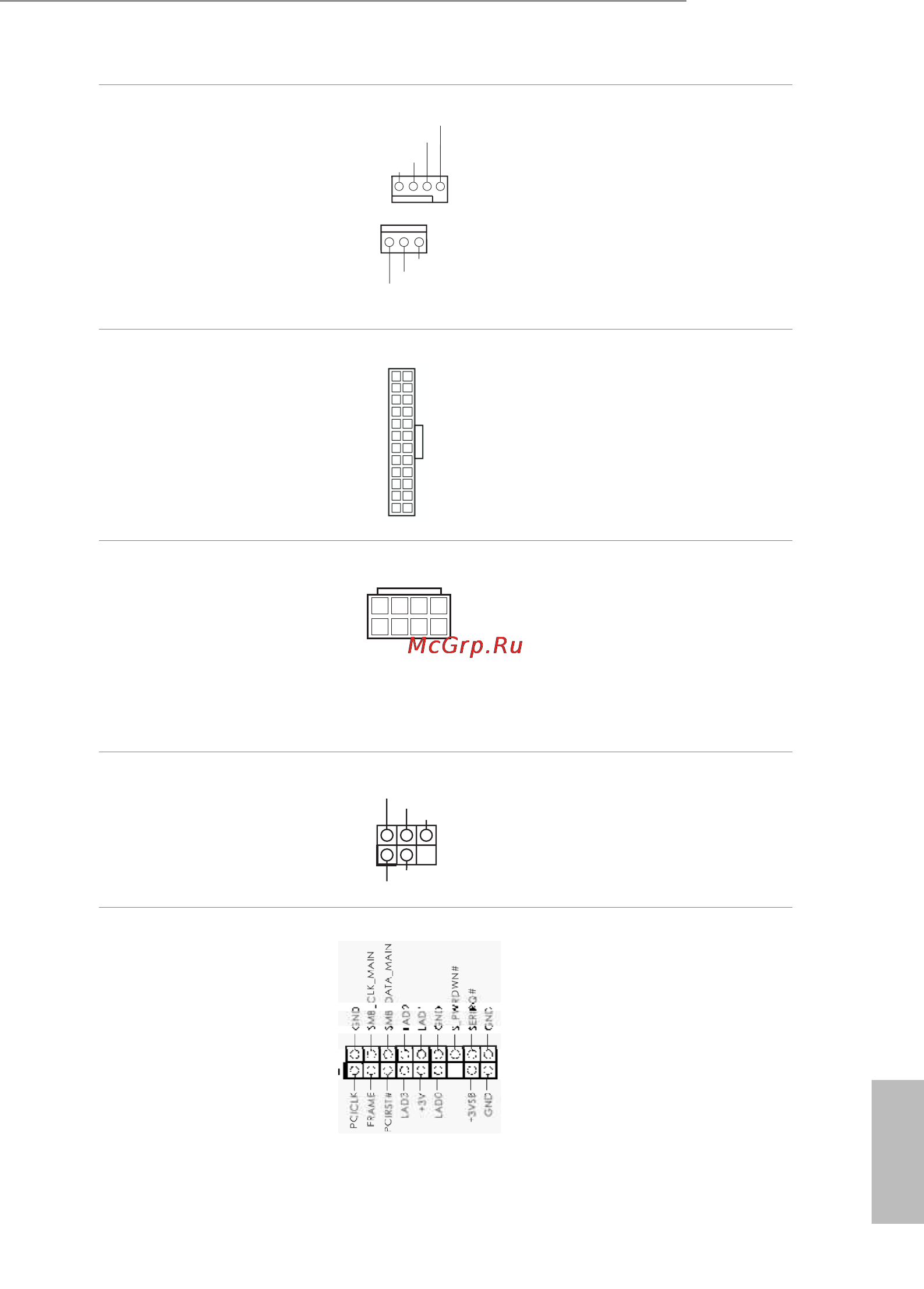

P85 Pro3
23
English
GND
+12V
FAN_SPEED
GND
+ 12V
CPU_FAN_SPEED
FAN_SP EED_CONTROL
CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.8, No. 3)
(3-pin CPU_FAN2)
(see p.8, No. 1)
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.8, No. 6)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.8, No. 4)
is motherboard pro-
vides an 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
Infrared Module Header
(5-pin IR1)
(see p.8, No. 22)
is header supports an optional
wireless transmitting and
receiving infrared module.
TPM Header
(17-pin TPMS1)
(see p.8, No. 21)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords,
and data. A TPM system
also helps enhance
network security, protects
digital identities, and
ensures platform integrity.
12
1
24
13
GND
IRRX
DUMMY
+5VSB
IRTX
1
4 1
8 5
