P85 Pro3
27
English
Dehumidier
Prevent motherboard damages due to dampness. Enable this function and
congure the period of time until the computer powers on, and the duration of the
dehumidifying process.
HDMI-IN
Connect two dierent devices to one monitor and toggle between the primary and
secondary screen without replugging the connectors every time. Please set a hotkey
for switching between the two devices.

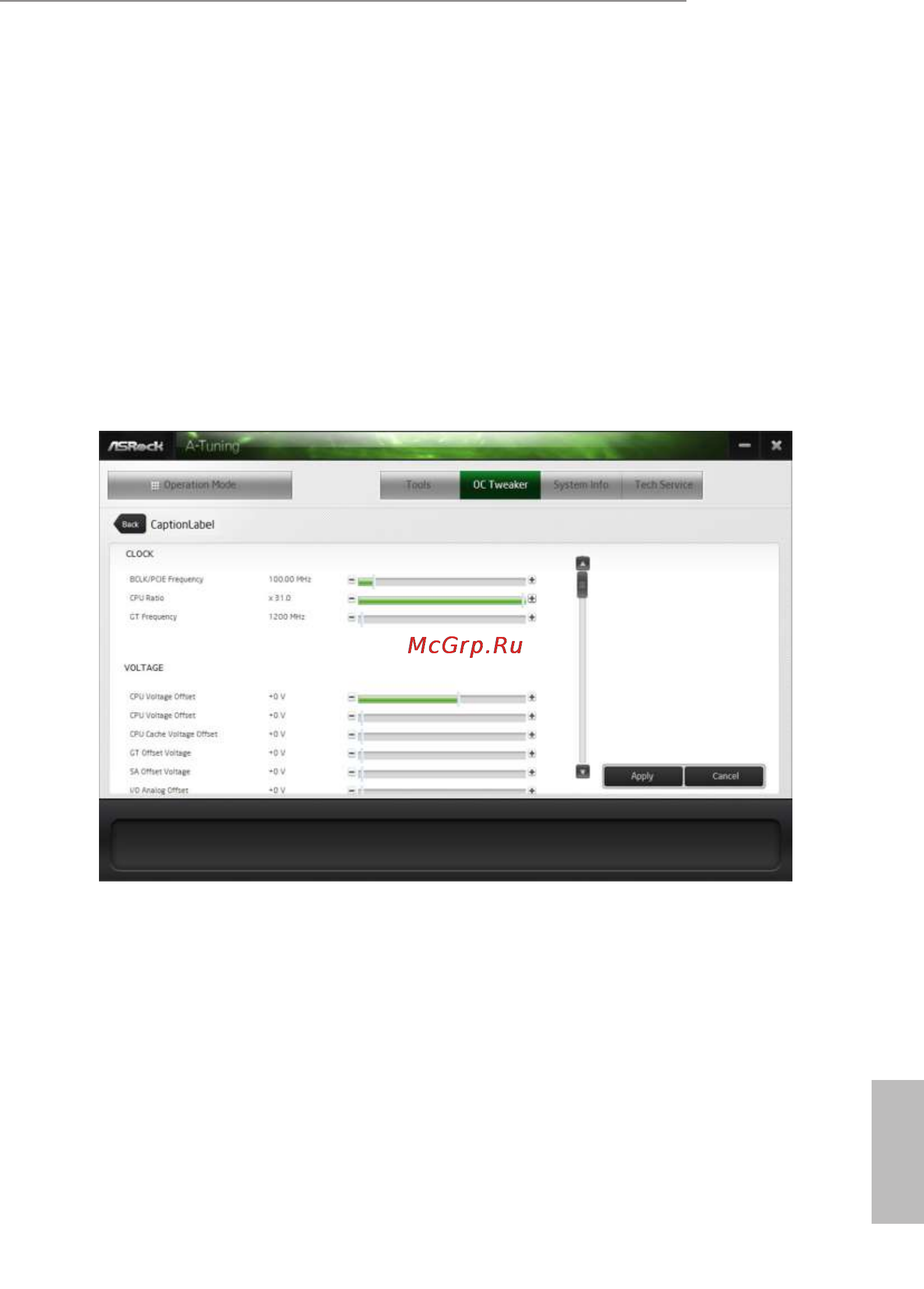

OC Tweaker
Congurations for overclocking the system.
System Info
View information about the system.
