8
English

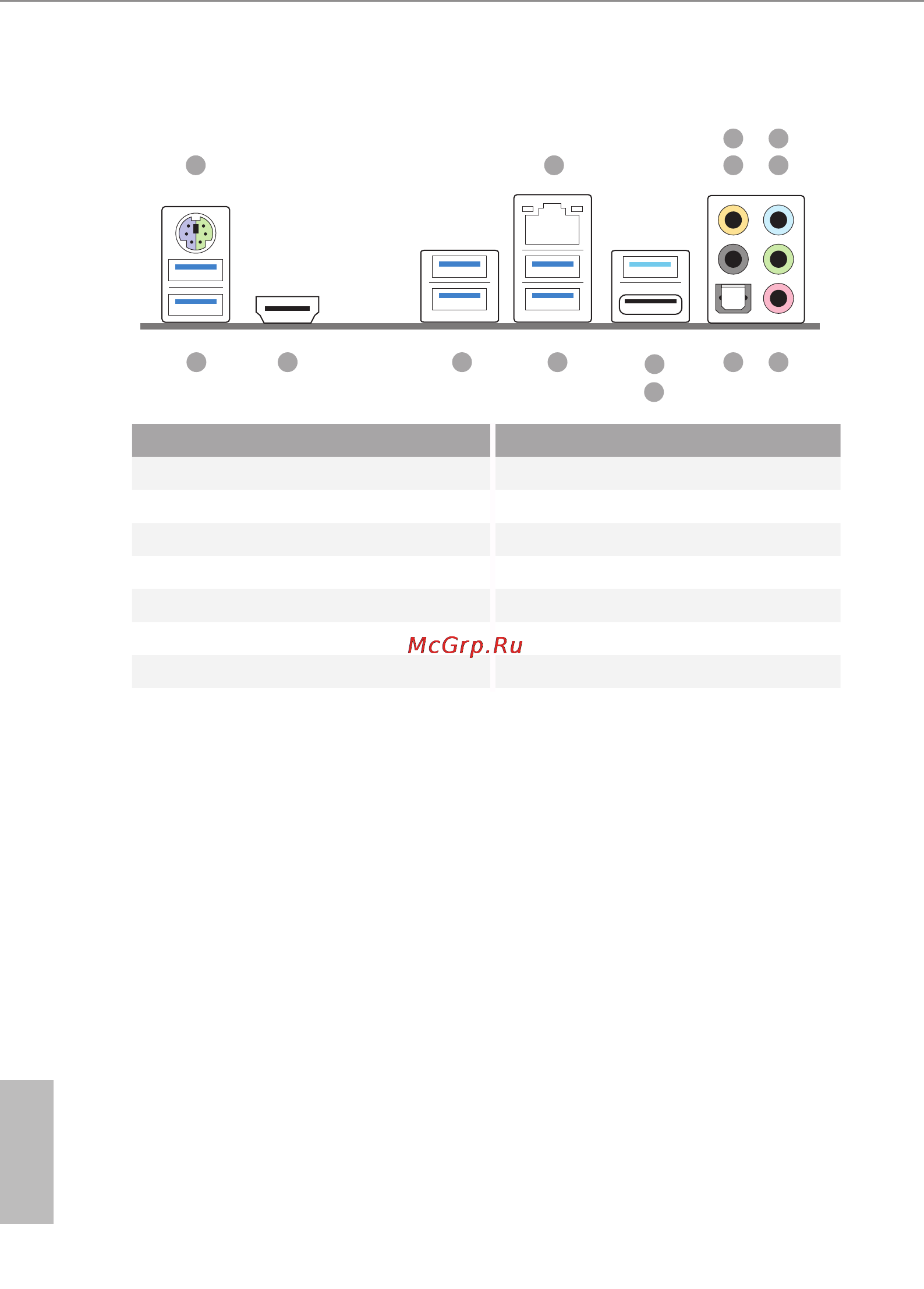

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 8 Optical SPDIF Out Port
2 LAN RJ-45 Port* 9 USB 3.1 Type-A Port (USB31_TA_1)
3 Central / Bass (Orange) 10 USB 3.1 Type-C Port (USB31_TC_1)
4 Rear Speaker (Black) 11 USB 3.0 Ports (USB3_56)
5 Line In (Light Blue) 12 USB 3.0 Ports (USB3_34)
6 Front Speaker (Lime)** 13 HDMI Port
7 Microphone (Pink) 14 USB 3.0 Ports (USB3_12)
14 1113
1 2
12 78
4
3
6
5
9
10
