ASRock z170 extreme3 [17/91] Installing the cpu
![ASRock z170 extreme3 [17/91] Installing the cpu](/views2/1159496/page17/bg11.png)
11
English
Z170 Extreme3

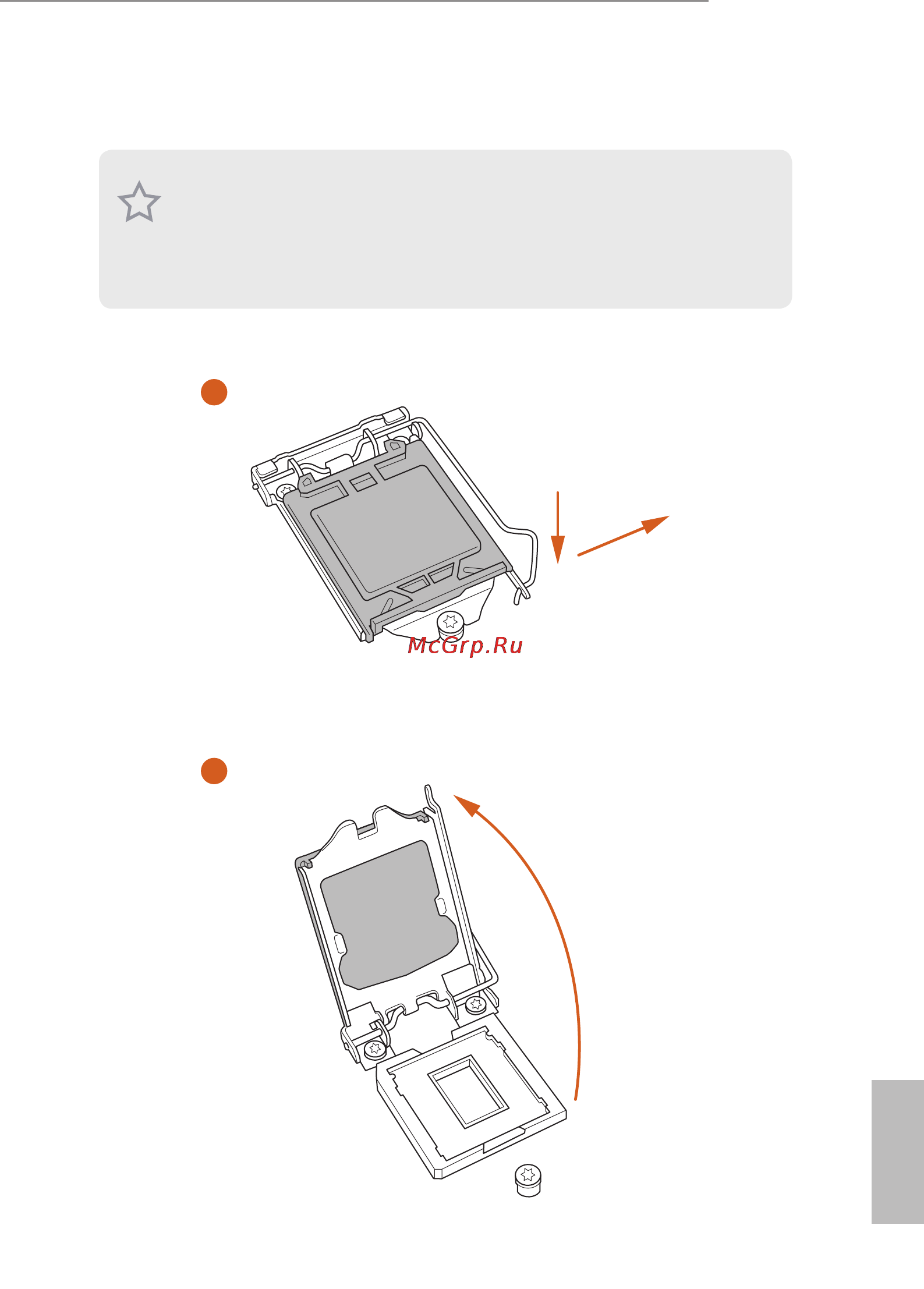

2.1 Installing the CPU
1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap
is on the socket, if the CPU surface is unclean, or if there are any bent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B
