2-4
Chapter 2: Getting started

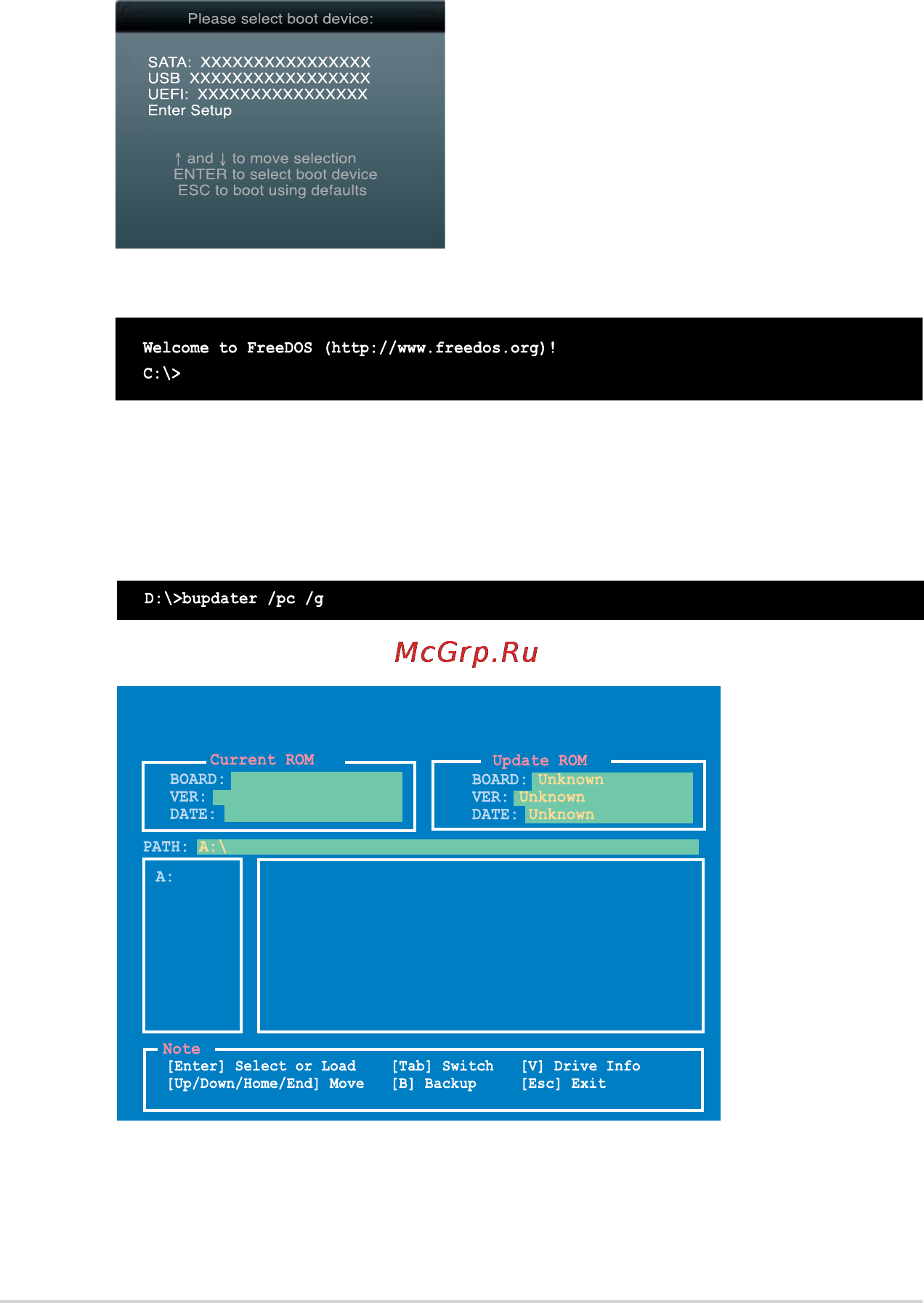

Booting the system to a DOS environment
1. Insert the DOS-bootable USB ash drive with the latest BIOS le and BIOS Updater to
your computer’s USB port.
2. Boot your computer. When the ASUS Logo appears, press <F8> to show the
BIOS
Boot Device Menu.
3. Select the USB ash drive as the boot device. The DOS screen appears.
Updating the BIOS le
To update the BIOS le using BIOS Updater:
1. At the FreeDOS prompt, type
bupdater /pc /g and press <Enter>.
2. The BIOS Updater screen appears as below.
0305
H81M-PLUS-ASUS-0207.CAP 8194 2013-04-08
15:25:48
06/08/2013
H81M-PLUS
ASUSTek BIOS Updater for DOS V1.30
