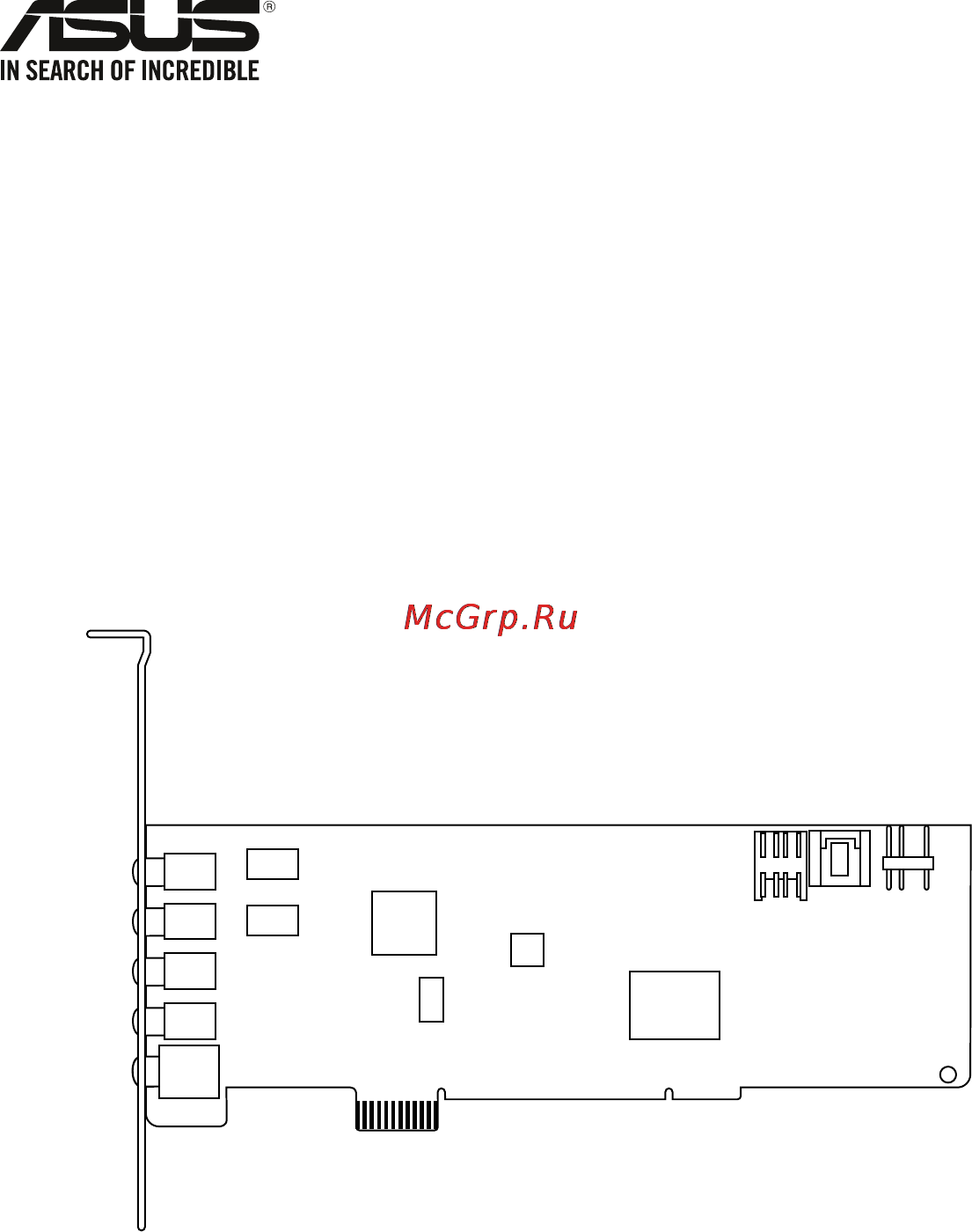

Asus xonar dsx Инструкция по эксплуатации онлайн
Содержание
- User manual 1
- E8903 first edition v3 december 2013 2
- Contents 3
- Australia statement notice 4
- Canadian department of communications statement 4
- Federal communications commission statement 4
- Notices 4
- License 5
- Safety information 5
- Trademarks 5
- Introduction 7
- Package contents 7
- System requirements 7
- Specifications summary 8
- Xonar dsx card layout 10
- Installing the audio card 12
- Installing the hardware 12
- Connecting to a tv tuner card 13
- Installing software 14
- Installing the card driver 14
- Connecting digital speaker systems home theater 15
- Connecting speakers and peripherals 15
- The xonar dsx supports dts interactive technology which transcodes any audio including games and music into industry standard dts surround bit streams this makes playback through your home theater system possible creating an immersive and impressive cinema surround sound experience a single digital cable connection can carry high quality dts digital audio from any of your pc audio sources to any digital speakers or av receivers with dts 5 decoding capabilities 15
- Connecting stereo headphones 16
- Connecting 5 channel headphones 17
- Connecting analog power amplifier 18
- Connecting analog speaker systems 18
- Connecting 2 2 channel speakers 19
- Speakers 19
- Connecting 4 4 channel speakers 20
- Speakers 20
- Connecting 5 channel speakers 21
- Connecting 6 7 channel speakers 21
- Speakers 21
- Speakers 22
- Connecting a microphone 23
- Connecting line in audio sources 24
- Xonar audio center 25
- Xonar audio center gui 25
- Main setting 27
- Sample rate 27
- The sample rate determines the number of audio samples per second that the digital to analog converters dac and s pdif digital interface will output the xonar dsx card can support sample rates up to 192khz 44 k 48k 96k 192khz audio cds and mp3 files are typically at 44 khz dvd video uses 48khz dvd audio or other hd media may contain 96khz or 192khz high definition audio content select the corresponding sample rate for your playback sources to get the best audio quality even if your setting differs from the audio source s sample rate the xonar dsx engine will execute super high fidelity sample rate conversion with a double floating point filter which can reduce total harmonic distortion thd n by 140db 27
- Analog out mode 28
- Spdif out dts interactive 29
- Xonar dsx is capable of producing dts interactive audio which is audio transcoded real time into industry standard dts digital bit streams on the fly this is ideal for playback through a home theater system creating an immersive and impressive cinema surround sound experience this technology enables a single digital connection to carry high quality dts surround audio from your pc to digital speakers and av receivers 29
- Audio channels for window 30
- This setting only appears in window 30
- Vista only 30
- Vista vista will deliver the audio channels to the audio driver according to this setting no matter what the original audio content is or how many channels they have configure your audio channel based on your audio content before playback please note that this setting is synchronized with vista s system speaker configuration and changing the setting during playback will stop audio playback you may have to restart the program after making changes it s recommended that you close all multimedia programs before you change this setting 30
- 7 virtual speaker shifter 31
- Expanding upmixing audio to 7 channel surround sound 31
- The 7 virtual speaker shifter has the following major features 31
- Virtual speakers that can be positioned to improve sound quality without having to move physical speakers and wires 31
- Virtualizing 7 surround sound over any set of speakers 31
- Dts neo pc 32
- Dts neo pc is a 7 surround upmixing technology and is widely used in home theater systems tvs game consoles and car audio systems it can expand stereo audio from mp3s cds and tv programs into immersive 5 or 7 channel surround 32
- Mixer volume 33
- Playback volume 33
- The mixer page is designed to control the volume for playback and recording on the xonar dsx in addition the xonar dsx also provides a high quality digital monitoring function for hearing the recorded audio from the speakers you can also process the input signals with all playback sound effects including dts technology 33
- Recording monitoring volume 34
- Effects 36
- Environment effects 36
- Environment effects can be used to create realistic listening experiences that mimic different environments there are a total of 27 environment options which can be applied to music and other 2d sound sources 36
- 10 band equalizer 37
- The equalizer can modify the audio output for different frequencies and can be used to compensate for deficiencies in your speakers sound system you can create custom settings in addition to the 12 default patterns available 37
- Karaoke 38
- The xonar dsx provides powerful features for karaoke including key shifting vocal cancellation and microphone echo microphone echo can generate natural echo effects on your singing voice just like a karaoke machine key shifting can change the pitch of karaoke background music and vocal cancellation can reduce the original vocal in songs and keep the music and symphony for karaoke 38
- Flexbass 40
- Flexbass is an advanced bass management and enhancement mechanism that allows you to select each satellite speaker s type for optimal sound performance it comes with an adjustable crossover frequency for the boundary of the bass signals flexbass will filter out the bass signals from small speaker channels and redirect them to the subwoofer or large speakers 40
- Smart volume normalization 41
- Smart volume normalizationtm svn automatically keeps all music or video tv audio output at a constant level to reduce manual adjustment inherent with sound sources of different loudness it allows you to listen to various content like mp3 tv program dvd video and even games at a consistent sound level the following graph shows how signals 1 and 2 adjust to the same level for example 10db below full scale after you turn on svn in the illustration below lower volume music 2 becomes louder when you turn on svn while higher volume music 1 becomes quieter with svn enabled 41
- Ds3d gx and dsp modes 43
- Vocalfx 45
- Vocalfx is an innovative voice processing technology that can immerse your voice in a realistic game landscape voiceex or imitate background scenes while chatting online chatex it also allows you to change your voice pitch to disguise who you are magic voice 45
- Troubleshooting 48
- Troubleshooting and faqs 48
- Asus computer gmbh germany and austria 54
- Asus computer international america 54
- Asus contact information 54
- Asustek computer inc 54
