ASUS Xonar DSX
6.3 Mixer/Volume
The mixer page is designed to control the volume for playback and recording on
the Xonar DSX. In addition, the Xonar DSX also provides a high-quality digital
monitoring function for hearing the recorded audio from the speakers. You can also
process the input signals with all playback sound effects including DTS technology.
6.3.1 Playback Volume

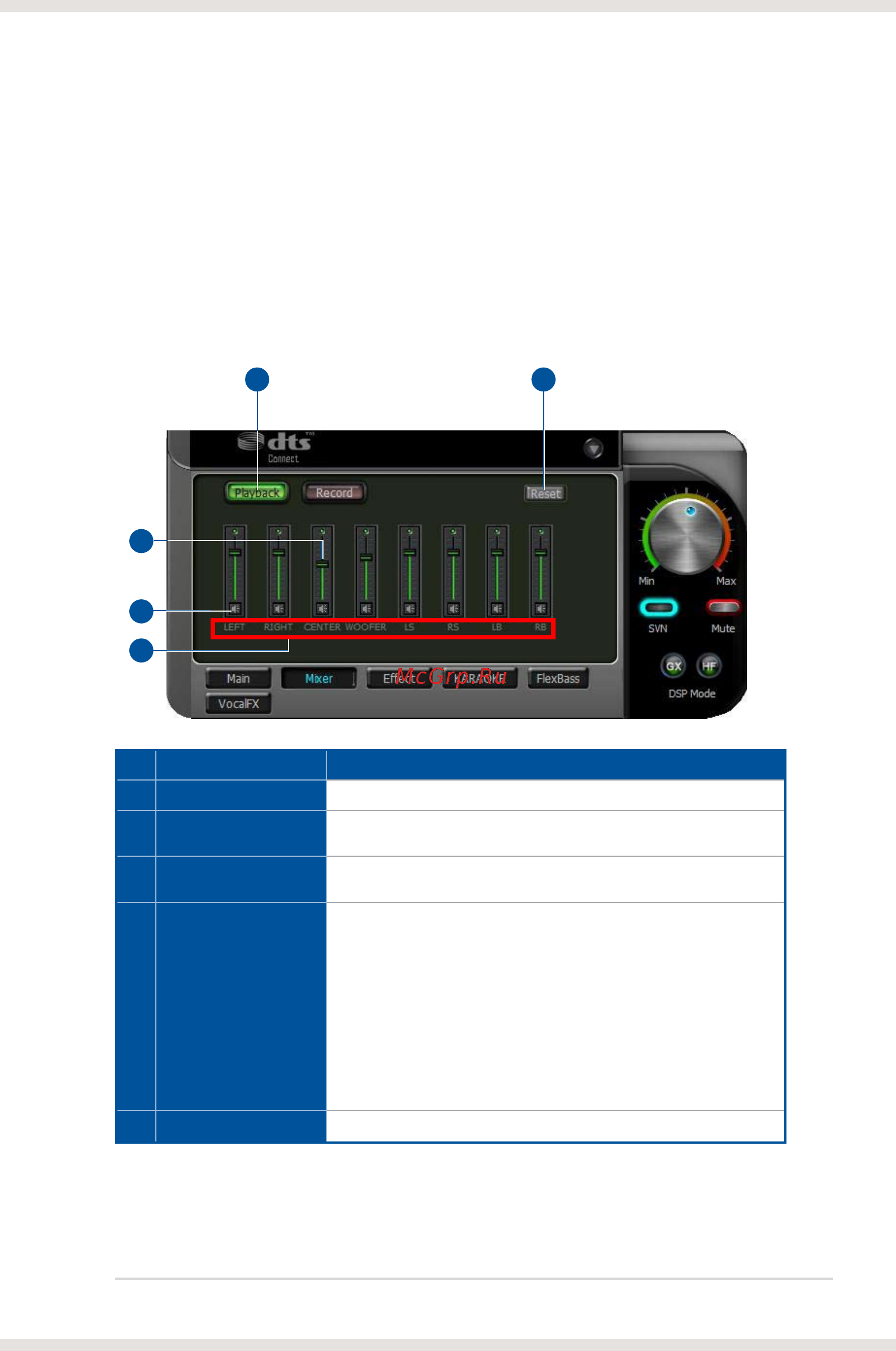

No Item Description
1 Playback volume tab Click this button to show the playback volume page.
2 Volume slider Drag this slider down to decrease the volume; drag it up to increase
the volume. The tool-tip displays percentage increments.
3 Mute button Click this button to mute the audio channel; click this button again to
restore the audio output.
4 Source / path name Displays the source name for each volume control slider*:
- WAVE: All digital audio sources except MIDI les
- SW: Software Synthesizer; control the playback volume of the
MIDI les
- CD: CD-ROM digital playback (CD-DA) volume control
- LEFT, RIGHT, CENTER, WOOFER: volume control for each
speaker/ channel
*Windows
®
Vista does not support WAVE, Synthesizer, and CD-In
volume controls.
5 Reset Reset all volume controls to the default settings
51
4
2
3
