22
ASUS Xonar DSX

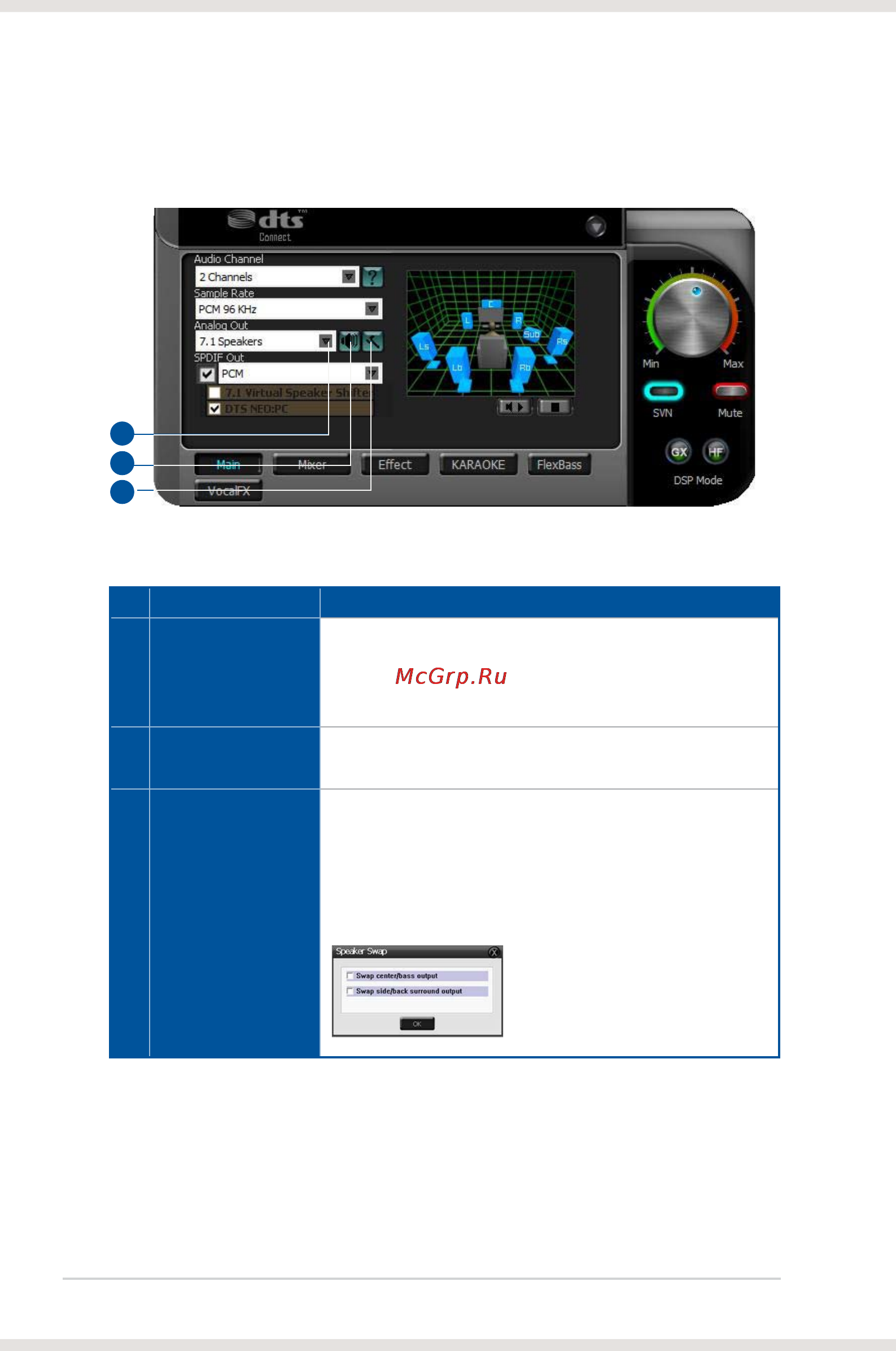

6.2.2 Analog Out mode
No Item Description
1 Analog Out The Analog Out setting is used to adjust audio to your actual speaker
setting, such as headphones, 2 speakers (or 2.1), 4 speakers (or 4.1),
5.1 speakers, 7.1 speakers, Front Panel Headphone and Front Panel
2 speakers (or 2.1). Xonar DSX will play the channels and process
the proper 3D/DTS sound accordingly. Select the correct speaker
type for your connected speakers.
2 Speaker Test Click this button to show the speaker test window in the right pane.
Click the “play” button to test each speaker one by one or click each
speaker to test them individually.
3 HP Advanced Setting Clicking this button will display an advanced setting window to
• Swap center/bass output for 5.1/7.1-speaker set up
• Swap Side/Back Surround output for 7.1-speaker set up
Select the appropriate Speaker Swap options if your speakers are
outputting the incorrect channel. Otherwise, leave them blank.
3
2
1
