ASUS Xonar DSX
No Item Description

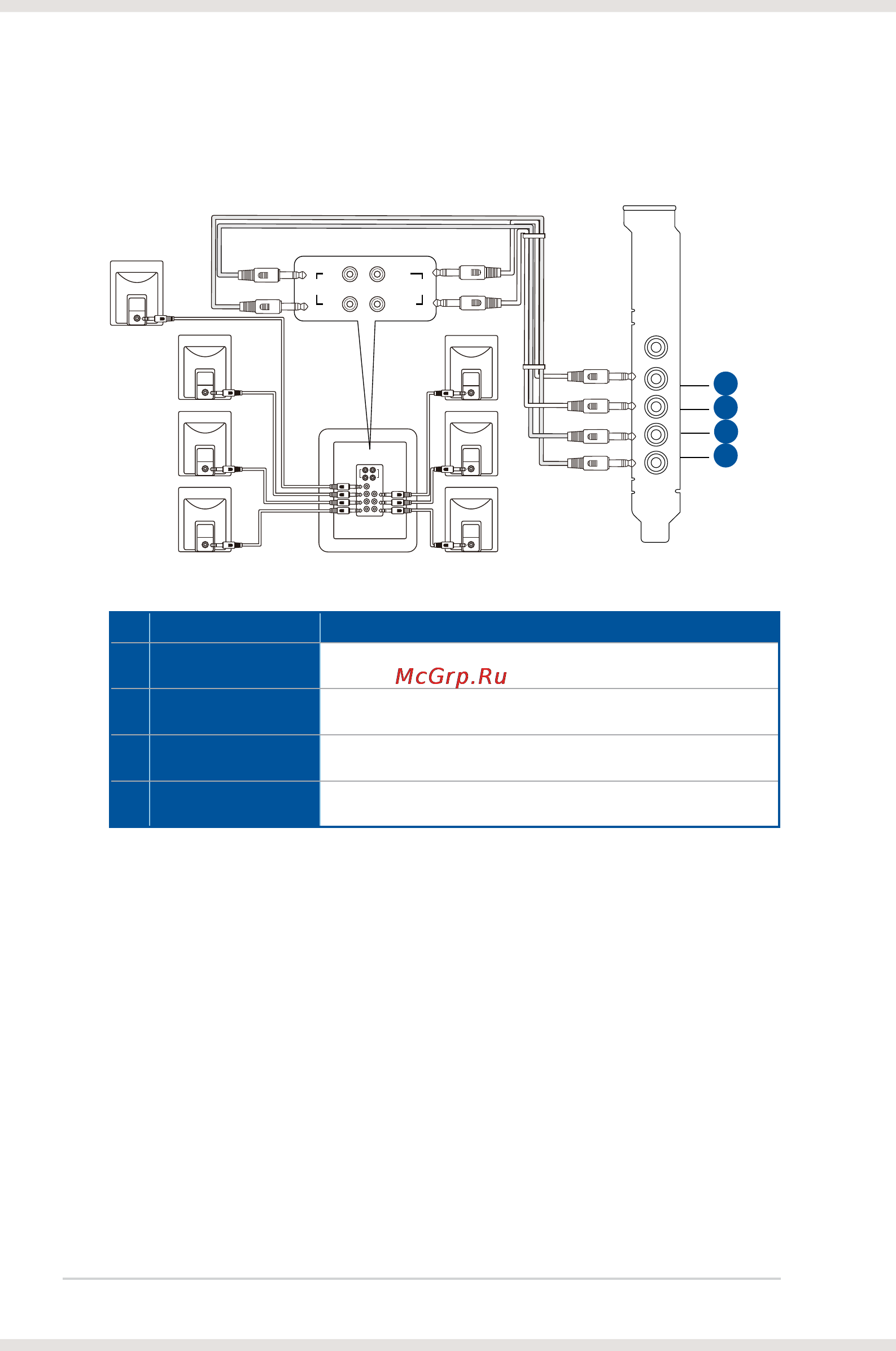

1 Front Out Connects to the Front input port of the 6.1/7.1 speakers with the
mini-jack cable.
2 Side Surround Out Connects to the Surround input port of the 6.1/7.1 speakers with the
mini-jack cable.
3 Center/Subwoofer Connects to the Center/Subwoofer input port of the 6.1/7.1 speakers
with the mini-jack cable.
4 Back Surround Out Connects to the Back Surround input port of the 6.1/7.1 speakers with
the mini-jack cable.
7.1 Speakers
4
3
2
1
Rear
Side
Front
Center/
Subwoofer
AUDIO
INPUTS
AUDIO
INPUTS
