Chapter 1: Product introduction1-2
*ASUS System Web-based Management
If any of the above items is damaged or missing, contact your retailer.
1.1 System package contents
Check your system package for the following items.
Model Name RS720-E7/RS12; RS720-E7/RS12-E
Chassis ASUS R20C 2U Rackmount Chassis
Motherboard ASUS Z9PE-D16 Server Board
Component 1 x 770W Redundant Power Supply
1 x SATA HDD Backplane (RS720-E7/RS12)
1 x SATA/SAS HDD Backplane with expander (RS720-E7/RS12-E)
12 x hot-swap HDD trays
1 x Front I/O Shield
1 x Front USB Board
4 x System Fans (80 x 38mm)
1 x Redundant Power Supply Distribution Board (PDB-R20A)
1 x Air Duct
Accessories 1 x RS720-E7/RS12; RS720-E7/RS12-E User’s Guide
1 x ASWM Enterprise User’s Guide
1 x RS720-E7/RS12; RS720-E7/RS12-E Support DVD
1 x Bag of Screws
1 x ASWM Enterprise DVD
1 x ASMB6 Series DVD
1 x ASMB6 User’s Guide
1 x AC Power Cable
1 x Friction Rail Kit
1 x Air Duct

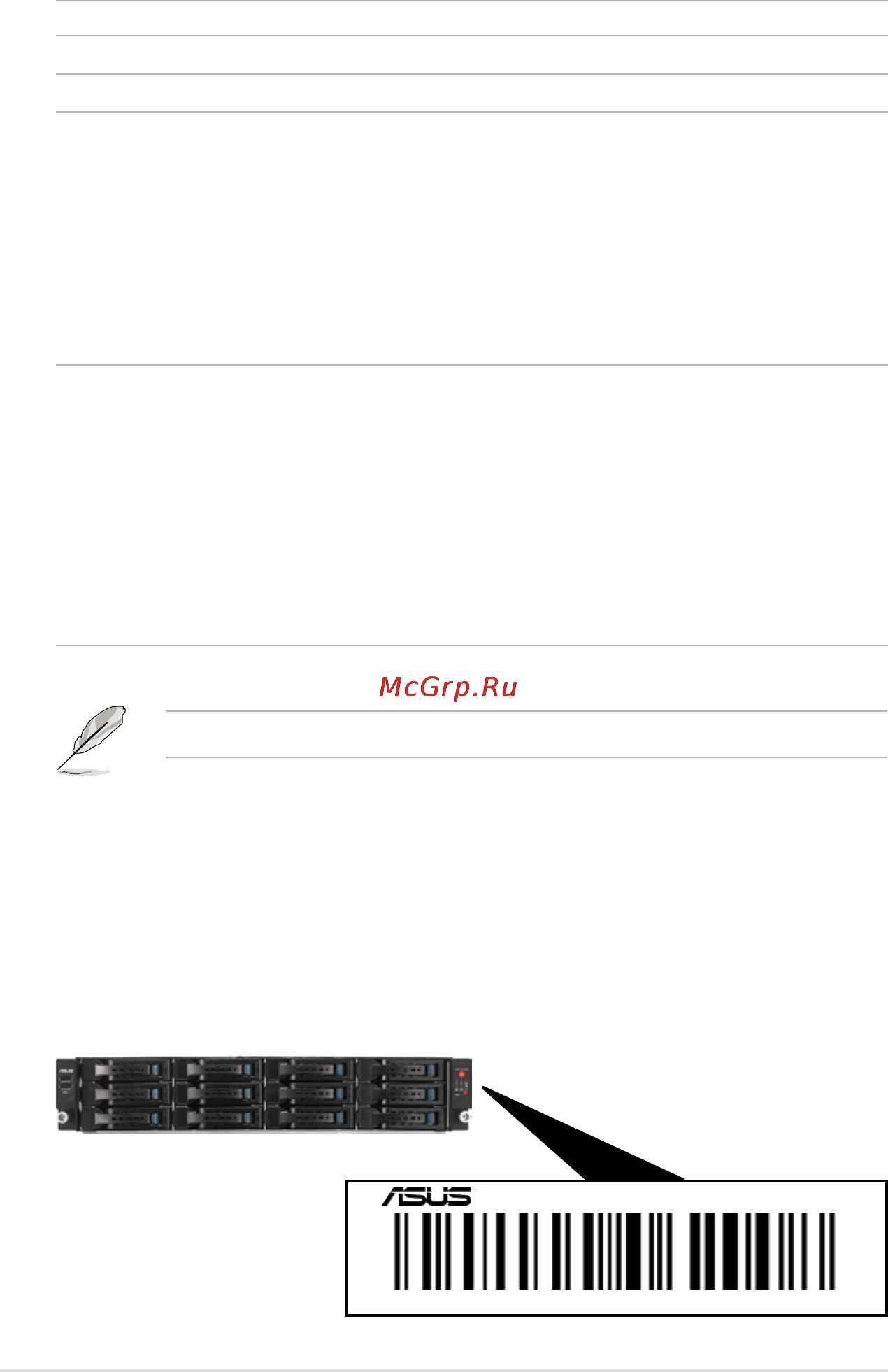

1.2 Serial number label
Before requesting support from the ASUS Technical Support team, you must
take note of the product’s serial number containing 14 characters such as
xxS0xxxxxxxxxx. See the gure below.
With the correct serial number of the product, ASUS Technical Support team
members can then offer a quicker and satisfying solution to your problems.
xxS0xxxxxxxxxx
RS720-E7/RS12
