ASUS TROOPER B85
1-19

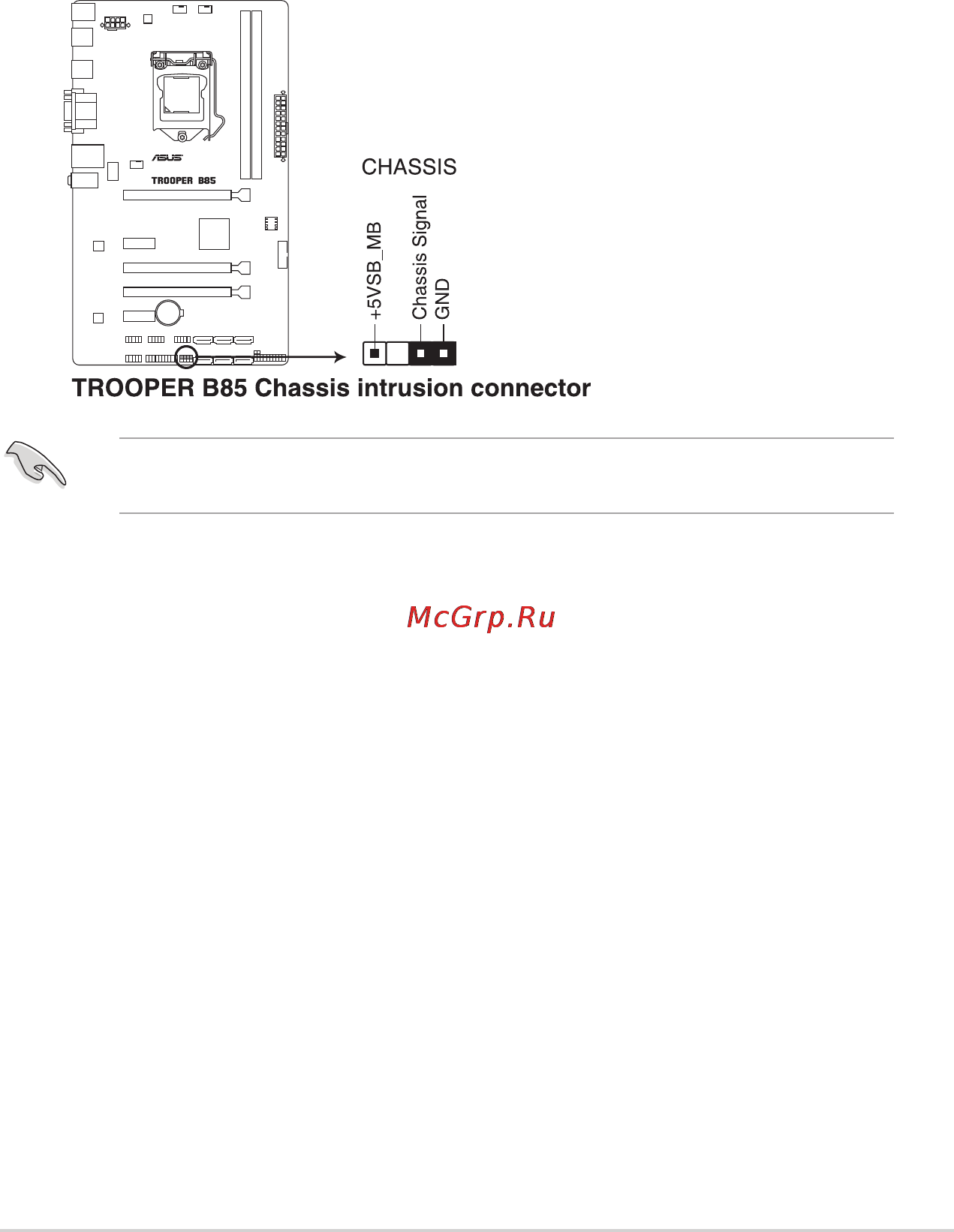

12. Chassis intrusion connector (4-1 pin CHASSIS)
Thisconnectorisforachassis-mountedintrusiondetectionsensororswitch.Connect
one end of the chassis intrusion sensor or switch cable to this connector. The chassis
intrusionsensororswitchsendsahigh-levelsignaltothisconnectorwhenachassis
componentisremovedorreplaced.Thesignalisthengeneratedasachassisintrusion
event.
Bydefault,thepinlabeled“ChassisSignal”and“Ground”areshortedwitha
jumpercap.RemovethejumpercapsandenabletherelatedoptionsinBIOS
if you intend to use the chassis intrusion detection feature.
Amessageappearswhenyouconnectthesensororswitchatthersttimeorwhenyou
reconnectthesensororswitchtothisconnector.Resetthesystemtoexitthemessage.
