150Mbps Wireless-N Outdoor AP User Manual
2 Hardware Installation
2.1 System Requirement
Minimum Requirements:
Ø Broadband Internet access service (DSL / Cable / Ethernet)
Ø Internet Explorer® 5.0, Firefox® 2.0 or Safari® 1.4 or higher for Web configuration
Ø 802.11n，802.11g or 802.11b compliant wireless adapters (for wireless connection)
Ø Windows 98/2000/XP/2003/Vista or higher operating system

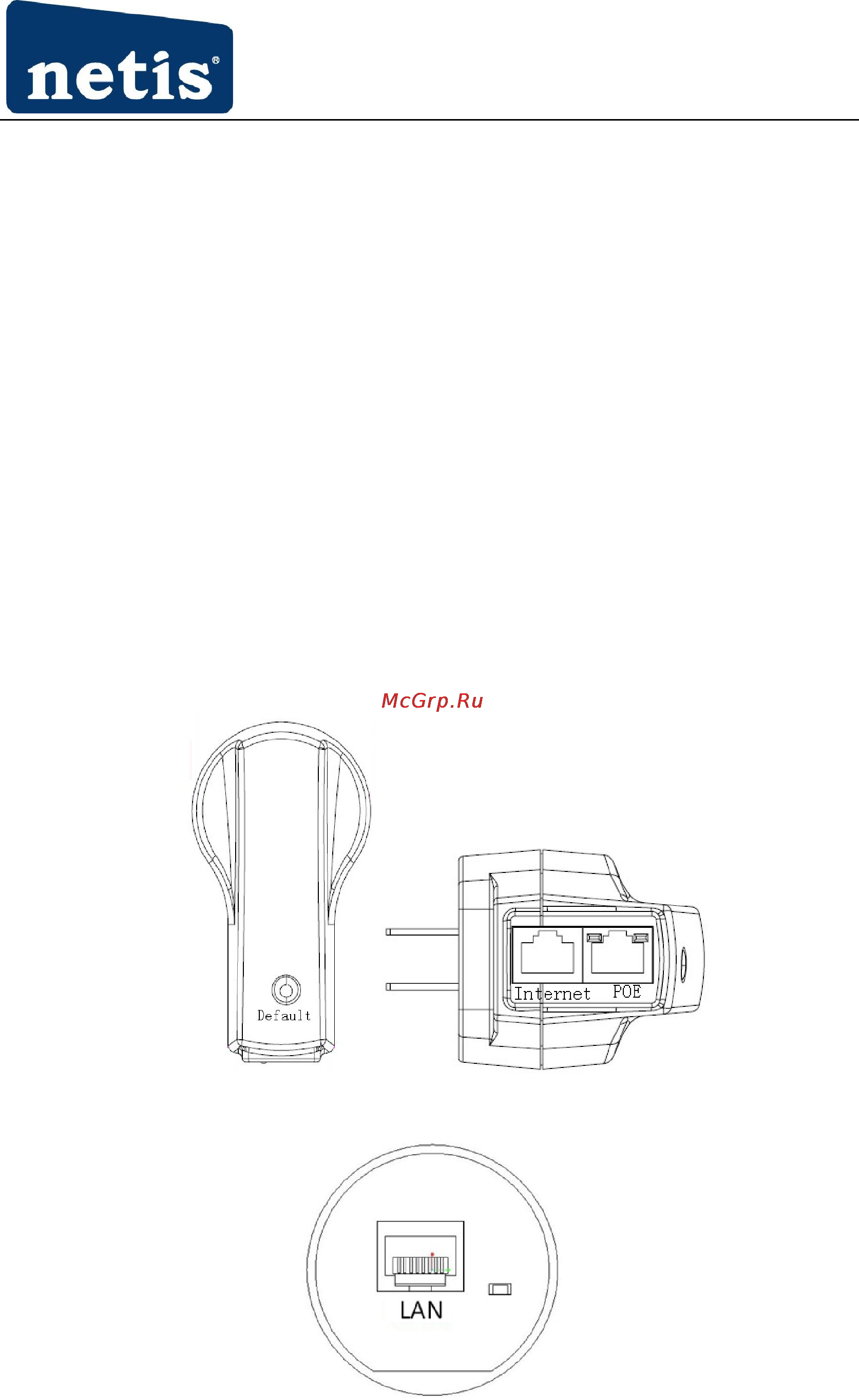

2.2 Panel
Figure 2-1 Power Adapter
Figure 2-2 Outdoor AP Ethernet port
