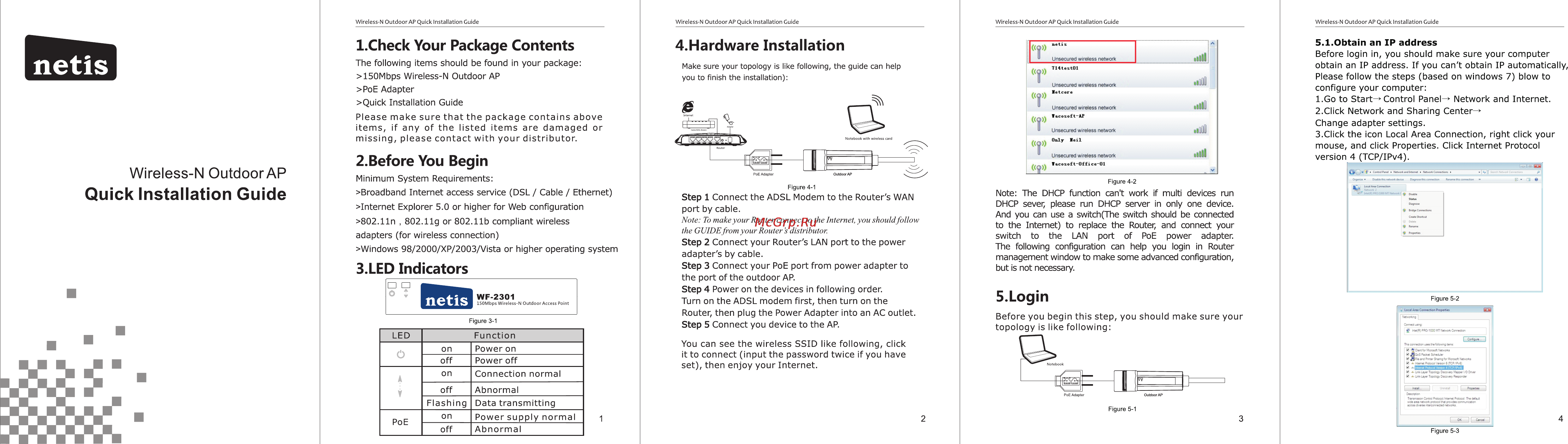

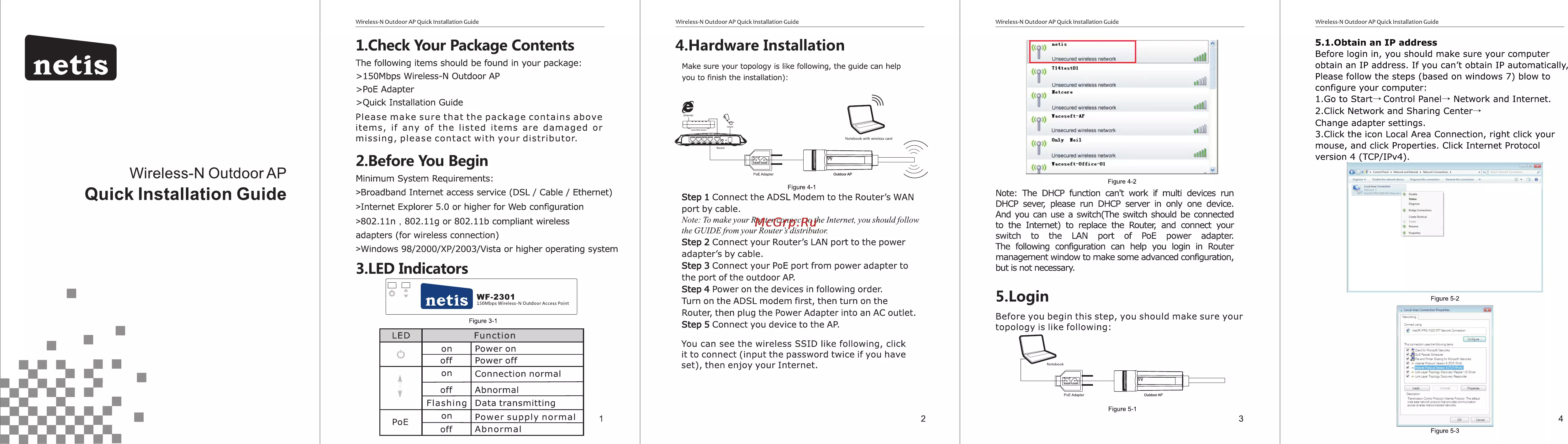

Wireless N Outdoor AP Quick Installation Guide Wireless N Outdoor AP Quick Installation Guide l Check Your Package Contents 4 Hardware Installation The following items should be found in your package 150Mbps Wireless N Outdoor AP Wireless N Outdoor AP Quick Installation Guide 5 1 Obtain an IP address Before login in you should make sure your computer obtain an IP address If you can t obtain IP automatically Please follow the steps based on windows 7 blow to configure your computer l Go to Start Control Panel Network and Internet 2 Click Network and Sharing Centei Change adapter settings 3 Click the icon Local Area Connection right click your mouse and click Properties Click Internet Protocol version 4 TCP IPV4 Make sure your topology is like following the guide can help you to finish the installation PoE Adapter Quick Installation Guide Please make sure that the package contains above items if any of the listed items are damaged or missing please contact with your distributor 2 Before You Begin Minimum System Requirements Broadband Internet access service DSL I Cable I Ethernet Internet Explorer 5 0 or higher for Web configuration 802 lln 802 11g or 802 11b compliant wireless adapters for wireless connection Windows 98 2000 XP 2003 Vista or higher operating system 3 LED Indicators ГП 0 netis WF 2301 150Mbps Wireless N Outdoor Access Point Figure 3 1 LED Û A V PoE Function on off on off Flashing on off Power on Power off Connection normal Abnormal Data transmitting Power supply normal Abnormal Wireless N Outdoor AP Quick Installation Guide Figure 4 2 Step 1 Connect the ADSL Modem to the Router s WAN port by cable Note To make your Router connect to the Internet you should follow the GUIDE from your Router s distributor Step 2 Connect your Router s LAN port to the power adapter s by cable Step 3 Connect your PoE port from power adapter to the port of the outdoor AP Step 4 Power on the devices in following order Turn on the ADSL modem first then turn on the Router then plug the Power Adapter into an AC outlet Step 5 Connect you device to the AP Note The DHCP function can t work if multi devices run DHCP sever please run DHCP server in only one device And you can use a switch The switch should be connected to the Internet to replace the Router and connect your switch to the LAN port of PoE power adapter The following configuration can help you login in Router management window to make some advanced configuration but is not necessary 5 Login Figure 5 2 Before you begin this step you should make sure your topology is like following You can see the wireless SSID like following click it to connect input the password twice if you have set then enjoy your Internet Figure 5 1 I Carol Figure 5 3 4
