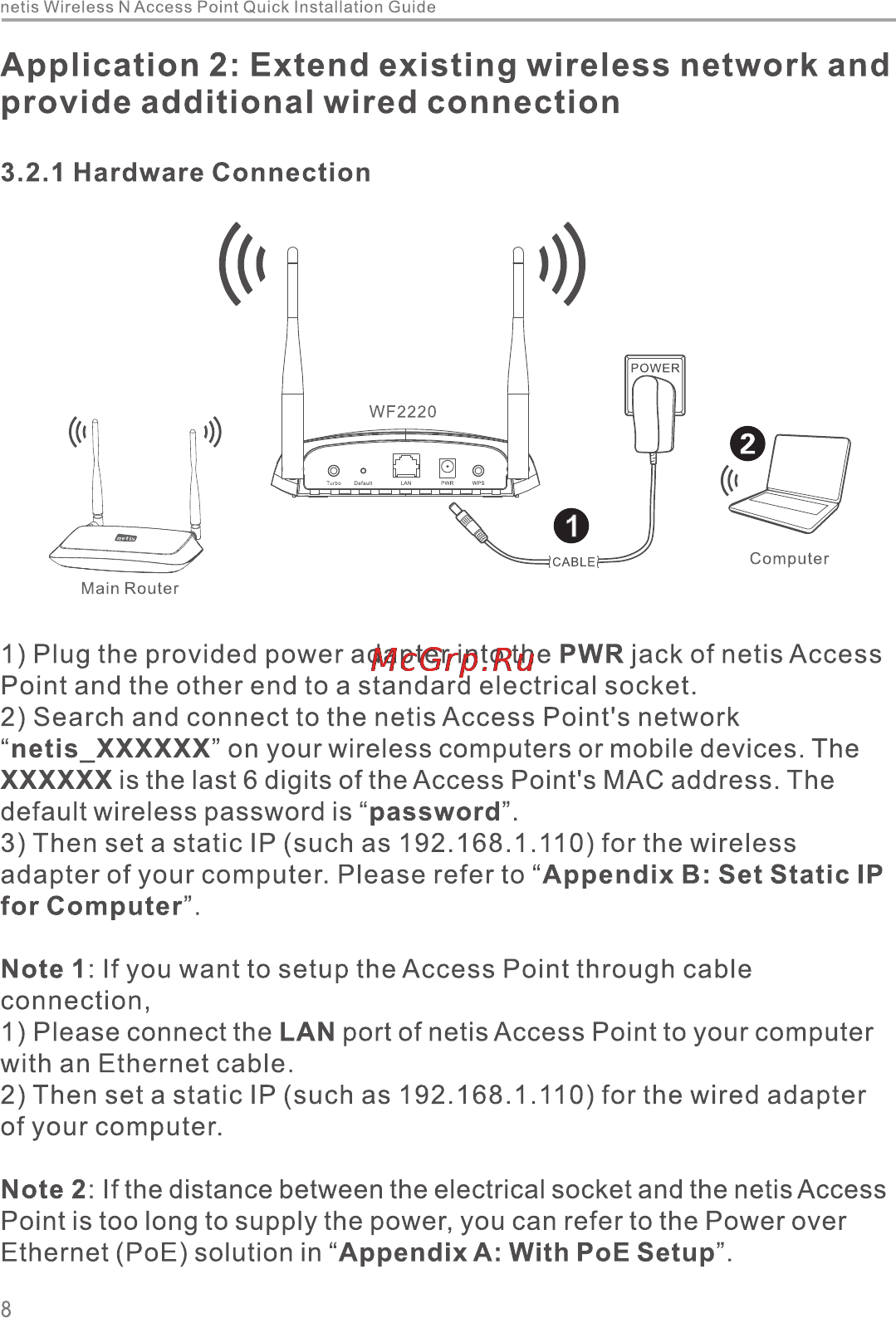

netis Wireless N Access Point Quick Installation Guide Application 2 Extend existing wireless network and provide additional wired connection 3 2 1 Hardware Connection Main Router 1 Plug the provided power adapter into the PWR jack of netis Access Point and the other end to a standard electrical socket 2 Search and connect to the netis Access Point s network netis_XXXXXX on your wireless computers or mobile devices The XXXXXX is the last 6 digits of the Access Point s MAC address The default wireless password is password 3 Then set a static IP suchas192 168 1 110 for the wireless adapter of your computer Please refer to Appendix B Set Static IP for Computer Note 1 If you want to setup the Access Point through cable connection 1 Please connect the LAN port of netis Access Point to your computer with an Ethernet cable 2 Then set a static IP such as 192 168 1 110 for the wired adapter of your computer Note 2 If the distance between the electrical socket and the netis Access Point is too long to supply the power you can refer to the Power over Ethernet PoE solution in Appendix A With PoE Setup 8
