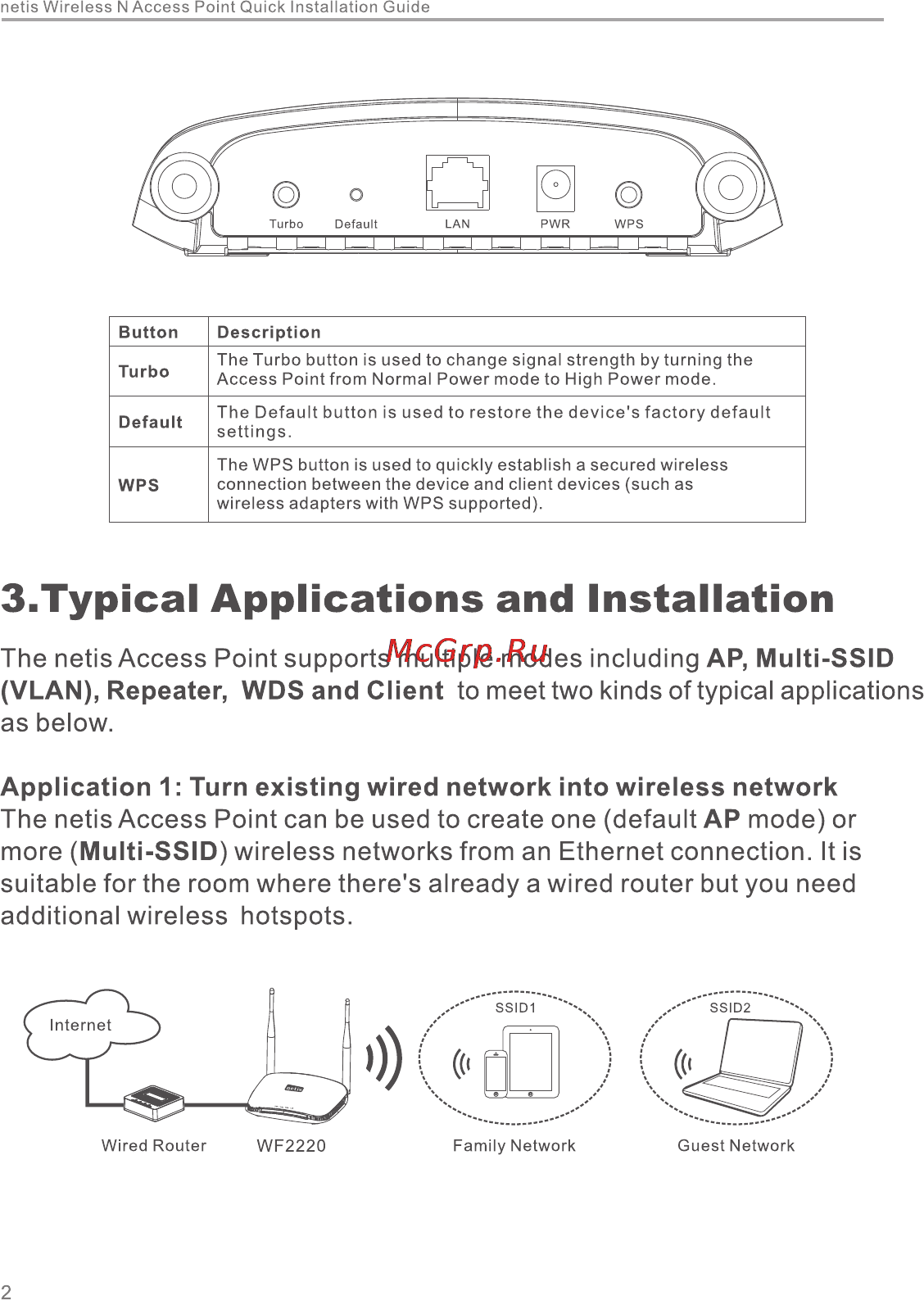

netis Wireless N Access Point Quick Installation Guide Button Description Turbo The Turbo button is used to change signal strength by turning the Access Point from Normal Power mode to High Power mode Default The Default button is used to restore the device s factory default settings WPS The WPS button is used to quickly establish a secured wireless connection between the device and client devices such as wireless adapters with WPS supported 3 Typical Applications and Installation The netis Access Point supports multiple modes including AP Multi SSID VLAN Repeater WDS and Client to meet two kinds of typical applications as below Application 1 Turn existing wired network into wireless network The netis Access Point can be used to create one default AP mode or more Multi SSID wireless networks from an Ethernet connection It is suitable for the room where there s already a wired router but you need additional wireless hotspots X SSID1 Internet Wired Router 2 LJ 0 WF2220 SS1D2 X V dO j Family Network Guest Network
