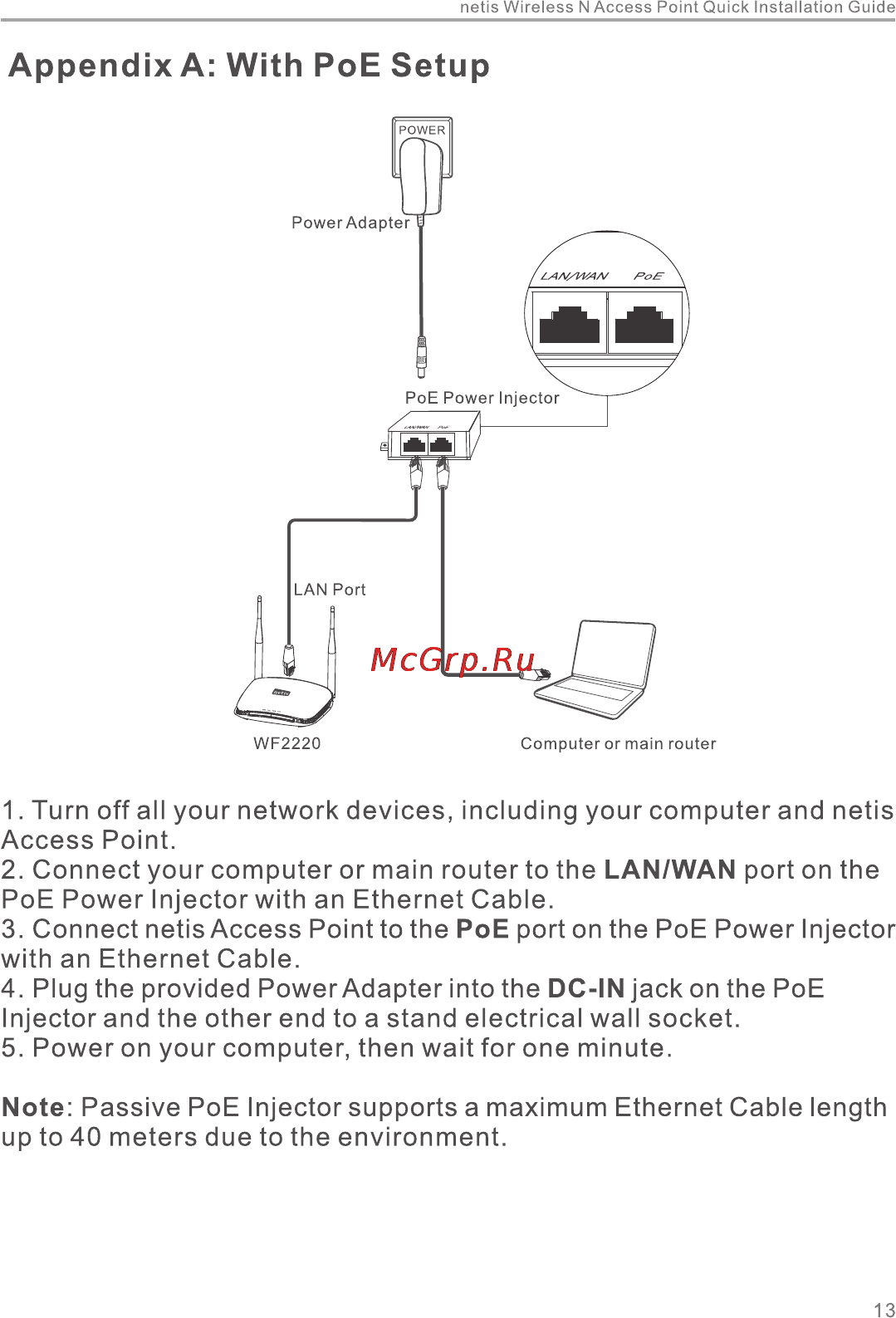

netis Wireless N Access Point Quick Installation Guide Appendix A With PoE Setup WF2220 Computer or main router 1 Turn off all your network devices including your computer and netis Access Point 2 Connect your computer or main router to the LAN WAN port on the PoE Power Injector with an Ethernet Cable 3 Connect netis Access Point to the PoE port on the PoE Power Injector with an Ethernet Cable 4 Plug the provided Power Adapter into the DC IN jack on the PoE Injector and the other end to a stand electrical wall socket 5 Power on your computer then wait for one minute Note Passive PoE Injector supports a maximum Ethernet Cable length up to 40 meters due to the environment 13
